189

Technical changes reserved

electraplan.VE-EE

One mounting kit for all ﬂoor systems

Installation depths

Is the screed height sufﬁcient or is 50 mm a little on the tight side?

The service units from Hager offer the matching solution for any situation. If the screed height is sufﬁcient, standard device casings may be

used.

Screed heights exceeding 70 mm allow the installation of GBVR400 or GBVR300 for Schuko power sockets and GTVD300 or GTVD200 for

data sockets. If the screed height exceeds 80 mm, GTVR400 and GTVR300 for Schuko power sockets can be installed. In screeds higher than

100 mm it is even possible to use snap-in ladder extensions to install the device casing even deeper. This provides more space for convenient

socket options in the service unit.

However, if screed height is critical, device casings for “ultra-low installation depth” are available for installation in screeds starting from 50 mm.

Here, the plugs are plugged into the hinged cover KDQ08 or KDE04 in horizontal direction.

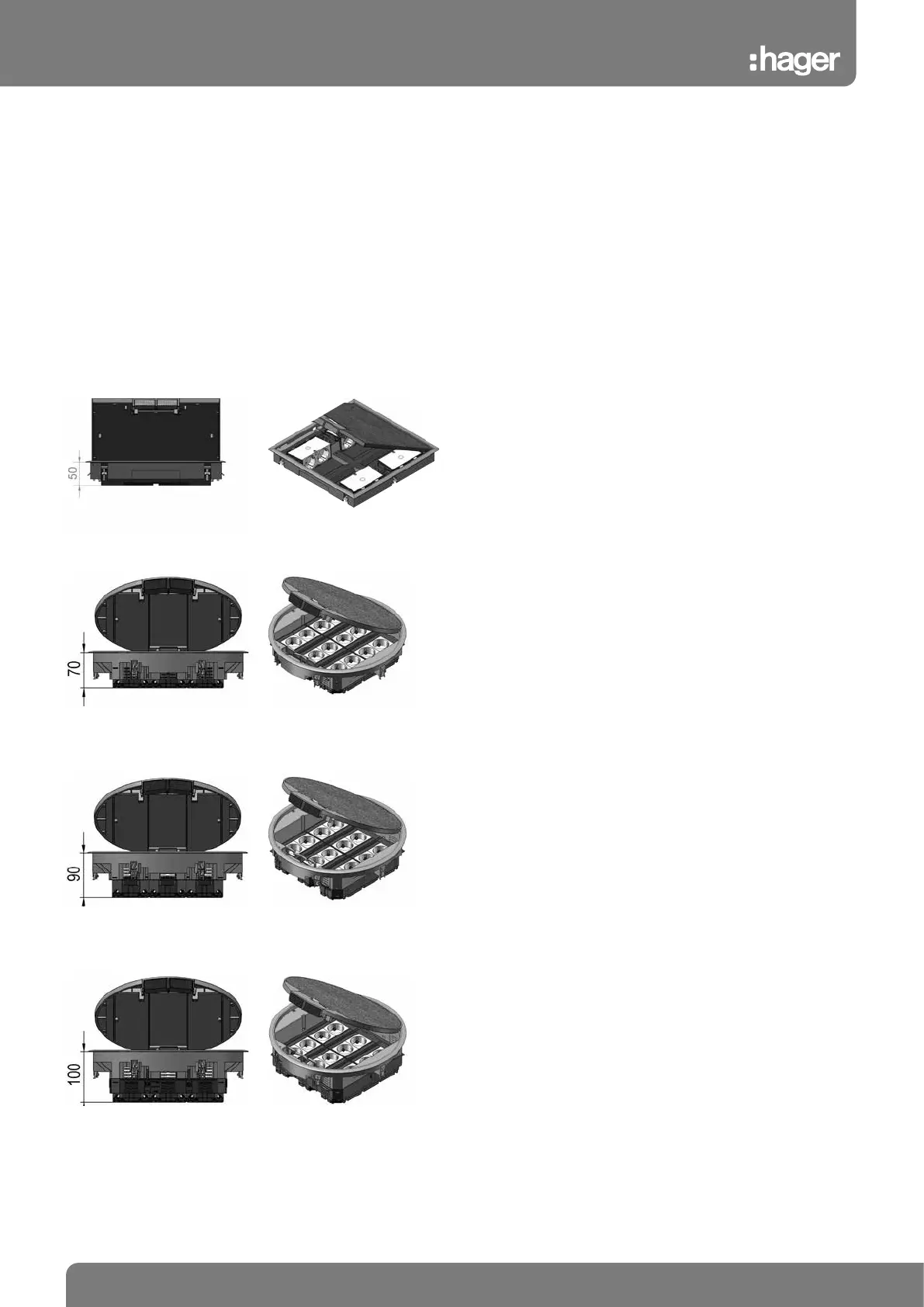

Hinged cover Q08 / E04 for ultra-low installation depth

Installation depth: from 50 mm

Device casing in top latching position

Installation depth: from 80/70 mm

Device casing in bottom latching position

Installation depth: from 100/90 mm

Device casing with snap-in ladder extension

Installation depth: from 110/100 mm
