Mounting kit for underfloor trunking systems
Installation in junction boxes - installation in double floors - installation in cavity floors
No matter which trunking system you wish to equip with service units, you can always use the same mounting kit. Specifying specific mount-
ing kits when ordering is no longer necessary. With the exception of VANR12 for wet-cleaned floors, all service units are provided with this
mounting kit.
Thanks to an innovative tilting mechanism, the force of the metal claws is always applied correctly. When using a junction box, the claw is
pushed upward against the mounting panel. In double floors, the shark-like teeth of the claws are forced into the raised floor from the sides
and from below.
If the floor plate is larger than 50 mm or when installing the components into a cavity floor, the claws are pressed into the installation opening
from the side.

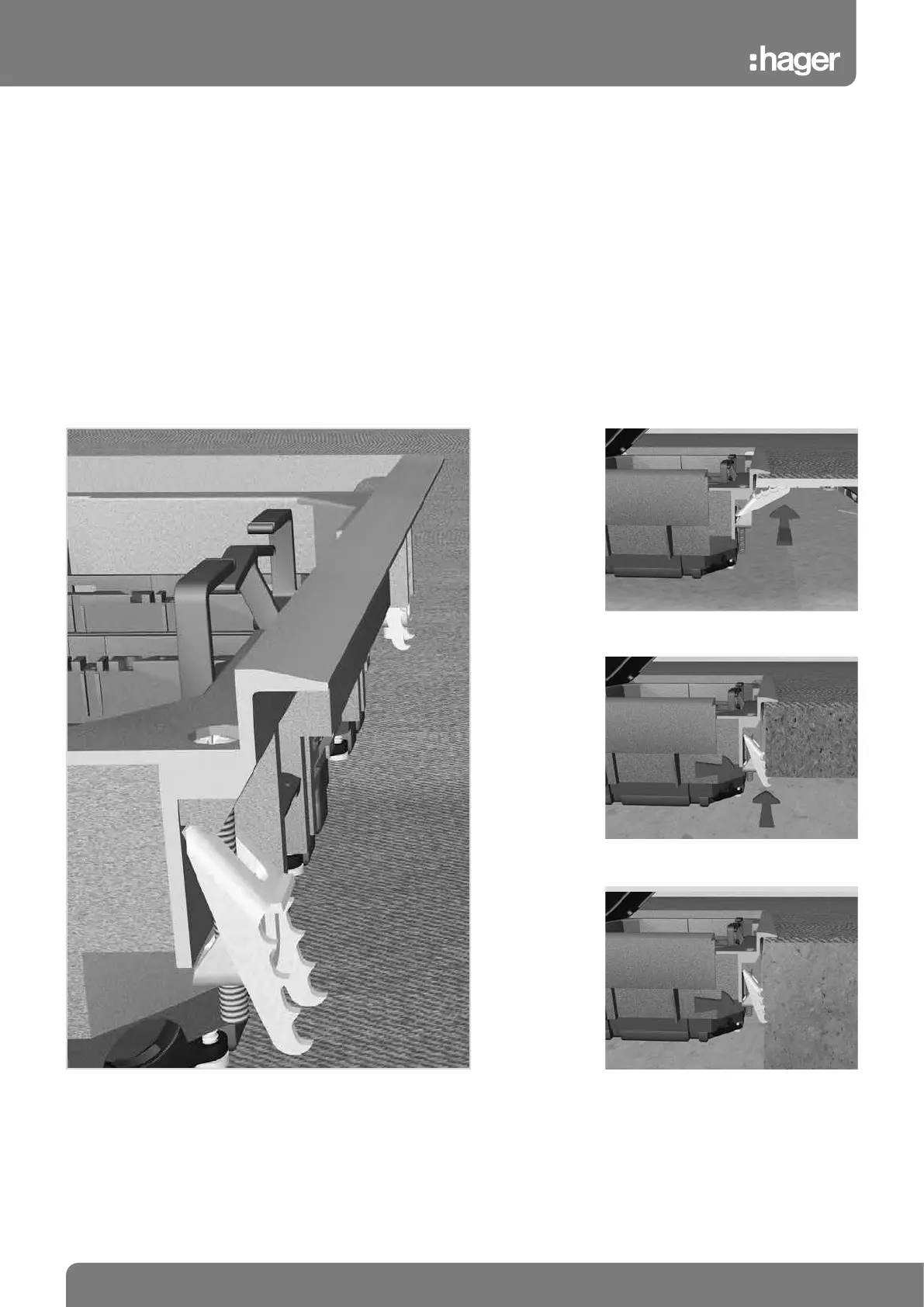

Installation in junction boxes
Installation in double floors
Installation in cavity floors
