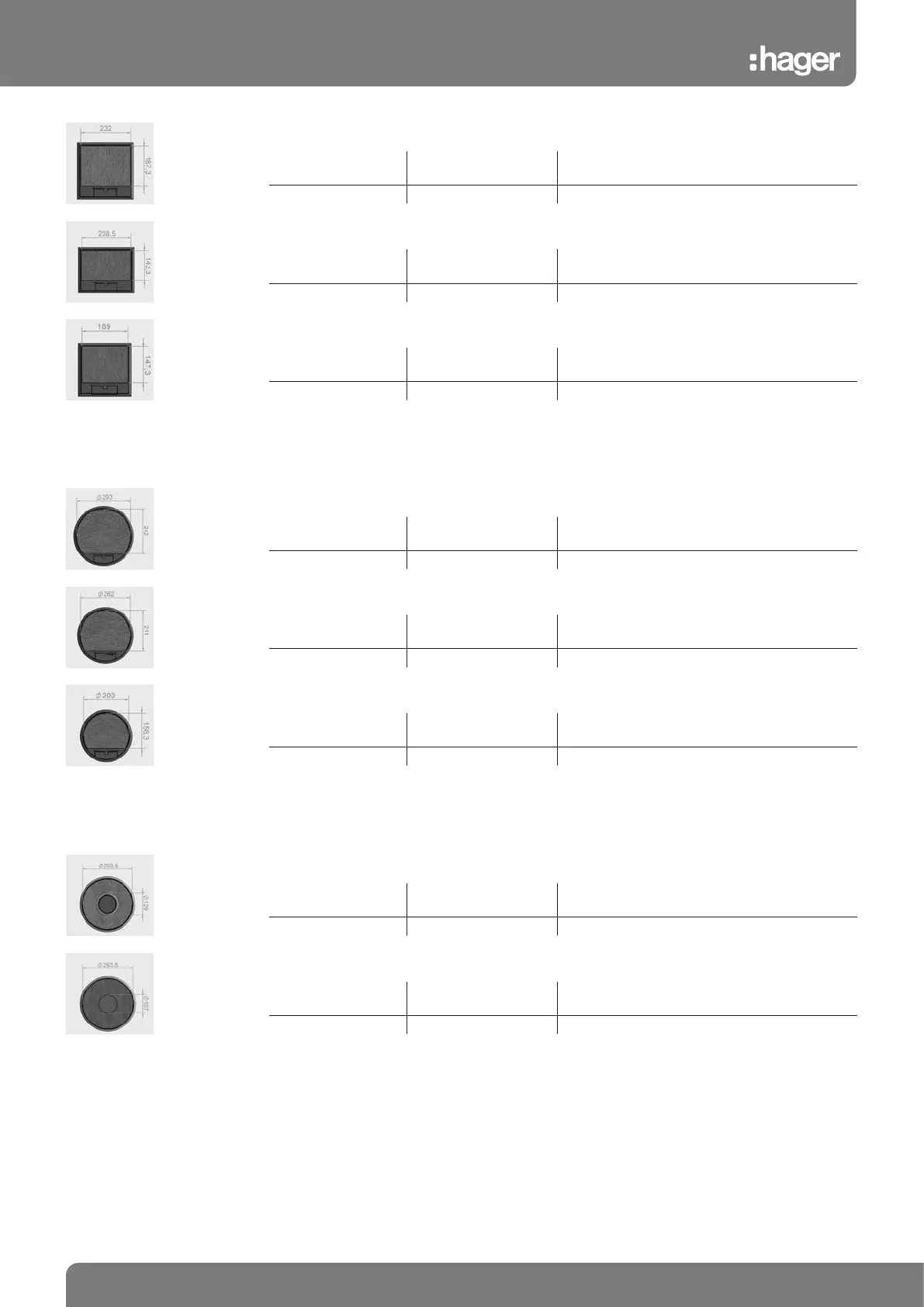

Flooring cutout and installation dimensions
Outer dimension [mm] Installation dimension
[mm]
Flooring cutout
219 x 272 200 x 253 5 mm 12 mm
Outer dimension [mm] Installation dimension
[mm]
Flooring cutout
219 x 219 200 x 200 5 mm 12 mm
Service unit VE09
Service unit VQ06
Outer dimension [mm] Installation dimension
[mm]
Flooring cutout
263 x 263 244 x 244 5 mm 12 mm
Service unit VQ12
Service units, round
Outer dimension Installation dimension Flooring cutout
Ø 325 mm Ø 306 mm 5 mm 12 mm
Service unit VR12
Outer dimension Installation dimension Flooring cutout
Ø 294 mm Ø 275 mm 5 mm 12 mm
Service unit VR10
Outer dimension Installation dimension Flooring cutout
Ø 234 mm Ø 215 mm 5 mm 12 mm
Service unit VR06
Service units made of aluminium
Outer dimension Installation dimension Flooring cutout
Ø 325 mm Ø 306 mm 3 mm
Service unit VANR12003TU
Outer dimension Installation dimension Flooring cutout
Ø 325 mm Ø 306 mm 3 mm
Service unit VANR12003
