Handleiding

User manual

WF 51

Translation of the original

instructions

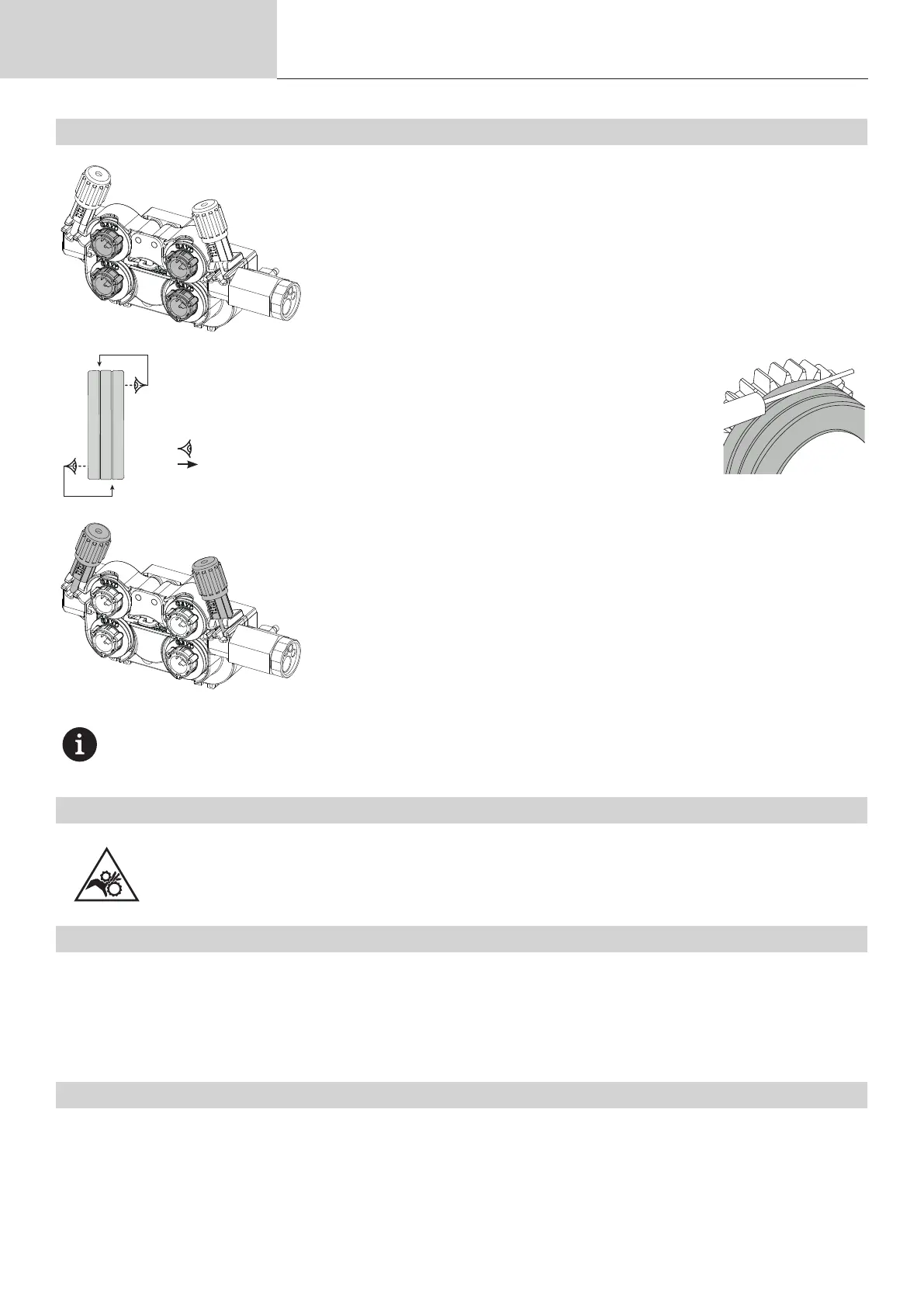

LOADING THE FILLER WIRE

To change the rollers, do the following:

- Loosen the knobs (a) to the maximum and lower them.

- Unlock the rollers by turning the retaining rings (b) by a quarter turn.

- Fit the correct drive rollers for your use and lock the retaining rings in place.

The rollers supplied are double groove rollers :

- steel Ø 1.0/1.2

- Check the inscription on the roller to ensure that the rollers are suitable for the wire diameter and

the wire material (for Ø 1.0 wire, use the Ø 1.0 groove).

- Use V-grooved rollers for steel and other hard wires.

- Use U-grooved rollers for aluminium and other soft, alloyed wires.

: visible inscription on the roller (example: 1.2 = Ø 1.2)

: groove to be used















To install the wire, follow the steps below:

- Loosen the dials to the maximum and lower them.

- Insert the wire, then close the motor reel and tighten the dials as shown.

- Press the trigger on the torch or press the wire inching switch (II-2) in the wire feeder to acti-

vate the motor.

Notes:

- Too narrow a sheath can lead to unreeling issues and can lead to the overheating of the motor.

- The torch connection must also be properly tightened to prevent it from overheating.

- Ensure that neither the wire, nor the reel, touches the device’s mechanism, otherwise there is a danger of short-circuiting the ma-

chine.

RISK OF INJURY FROM MOVING COMPONENTS

The reels have moving parts that can trap hands, hair, clothing or tools causing injuries!

- Do not touch rotating, moving or driving parts of the machine!

• Ensure that the housing covers or protective covers remain fully closed when in operation.

• Do not wear gloves when threading the ller wire or changing the ller-wire’s spool.

SEMI-AUTOMATIC STEEL/STAINLESS STEEL WELDING (MAG MODE)

This machine can weld steel and stainless steel wire from Ø 0.6 to 1.6mm (I-A). The unit is supplied with Ø 1.0/1.2 rollers for steel or stainless steel

as standard. The contact tip, the grooved roller, and the torch sheath are designed for this application.

For operation on steel, a specic welding gas (Ar+CO2) is required. The amount of CO2 may vary depending on the type of gas used. For stainless

steel, use a 2% CO2 mixture. When welding with pure CO2, it is necessary to connect a gas pre-heater to the gas cylinder. For specic gas issues,

please contact your gas distributor. The gas ow rate for steel is between 8 and 15 litres per minute depending on the surroundings. To check the

gas ow rate on the manometer without unwinding the welding wire, press and hold push-button n°1 and follow the procedure on the screen. This

check should be done periodically to ensure the best possible welding. Refer to the HMI manual.

SEMI-AUTOMATIC ALUMINIUM WELDING (MIG MODE)

The unit can weld aluminium wire from Ø 0.8 to 1.6mm (I-B).

For use with aluminium, pure argon gas (Ar) is required. Seek advice from a gas distributor for a wide selection of gases. The gas ow rate for

aluminium is between 15 and 20 l/min depending on the surrounding environment and the welder’s experience.

The di󰀨erences between steel and aluminium processing are as follows:

- Use specic rollers for aluminium welding.

- Put minimum pressure on the motorised reel’s pressure rollers so as not to crush the thread.

- Only use the capillary tube (for guiding the wire between the feed rollers and the EURO connector) for steel/stainless steel welding (I-B)

- Use a special aluminium torch. This aluminium torch has a Teon coating to reduce friction. DO NOT cut away the coating at the tip of the connector!

This coating is used to guide the wire from the rollers.

- Contact tips: use a SPECIAL aluminium contact tip that matches the wire’s diameter.
