User manual
GYSFLASH 107.24 CNT FV
Translation of the original
instructions
Charge type: Prol Charging voltage
Pb-CHARGE
normal
2.40 V/cell Lead batteries of the types Gel, MF, EFB, SLA...
AGM
2.45 V/cell
Most AGM lead-acid batteries including START and STOP.
However, some AGM batteries require a lower voltage charge (Normal prole).
Check the battery manual if in doubt.
water
2.45 V/cell Open liquid-type lead-acid batteries with cap.
Easy
2.40 V/cell
Prole dedicated to lead batteries that automatically adapts the charging current
according to the size of the battery.
However, for maximum charge optimization, it is recommended, when possible,
to use normal, AGM or liquid charge curves.
Li-CHARGE LFP/LiFePO4
3.60 V/cell Lithium batteries type LFP (Lithium Ferro Phosphate)
Starting the charge:
1
Manual start
To start the charge, press the START/STOP button.
Pb - CHARGE
13.5
V
113
A
01:27:35 105.8
Ah
2
1
4
3
5
6
1- Applied charging curve
2- Battery voltage
3- Current supplied by the charger
4- Elapsed time
5- Amp-hours delivered
6- Charge cycle progress
Automatic start-up
If the AUTO-DETECT function is active, charging will start
automatically after 3 seconds if a battery is present.
Auto - Detect
12.
5
v
Charge
2
During charging, your GYSFLASH will indicate the percentage of progress of
the charging cycle, voltage, current, amp-hours delivered, and time elapsed.
3 Press the START/STOP button to stop the charge.
Precautions:
When charging a vehicle, it is advisable to reduce the vehicle’s power consumption to a minimum (turn o the lights, switch o the
ignition, close the doors, etc.) so as not to disrupt the charging process.
Precaution: Check the electrolyte level for open batteries. If necessary, adjust levels before charging.

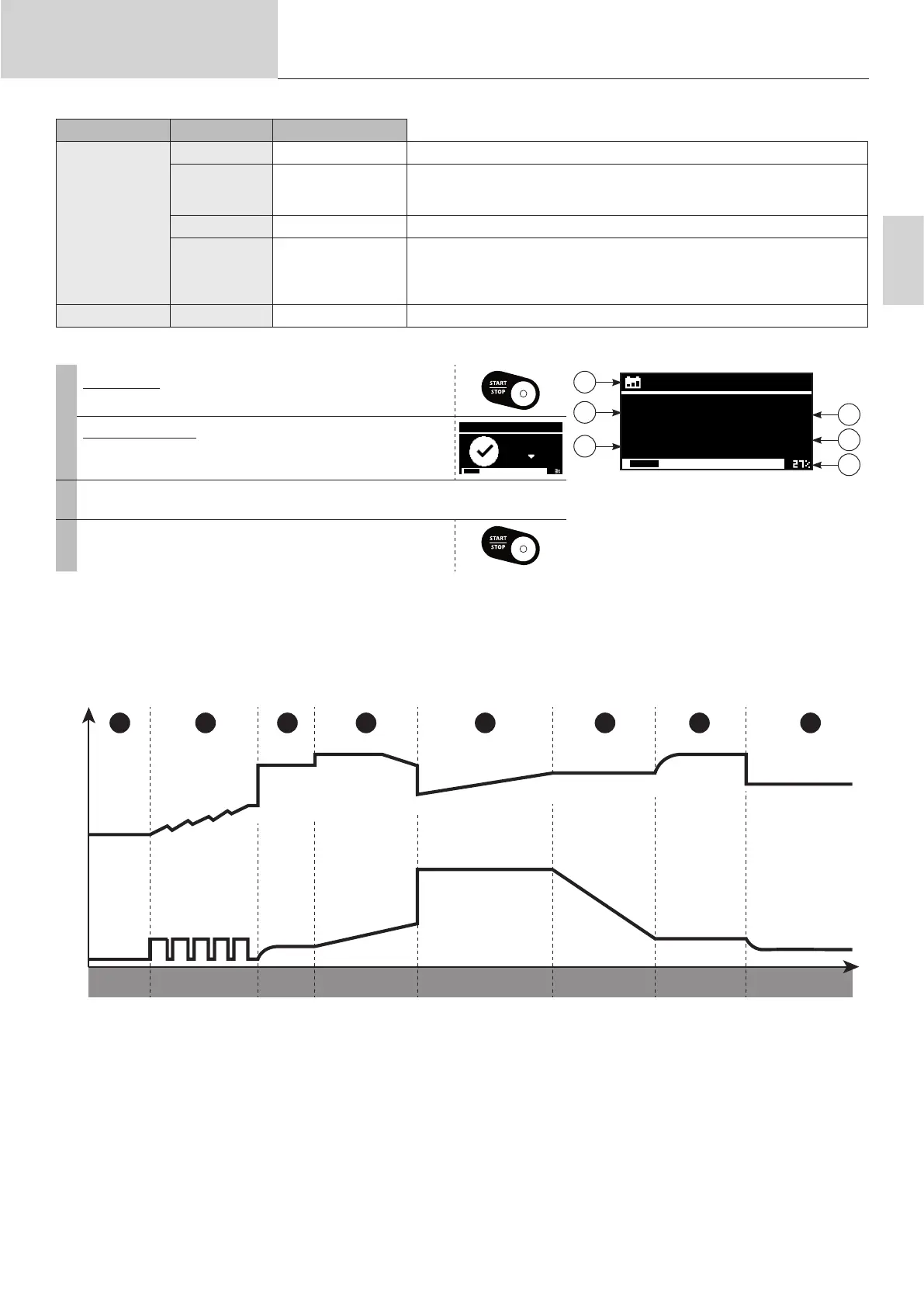

• Lead-acid charging curve:
U
I
1 2 3 4 5 6 7
Analysis Recovery Test Desulfation Charge Absorption
Maintenance/-
Floating charge
0%
8
Refresh
(only for liquid prole)
10% 20%
80%
95% 100%
Step 1 : Analysis
Analyses the state of the battery (charge level, polarity inver-
sion, wrong battery…)
Step 6: Absorption
Constant voltage charge to reach 100% charge level.
Step 2 : Recovery
Recovering damaged elements after deep and prolonged
discharge.
Step 7: Refresh (only for liquid prole)
The charger supplies an additional current to create gas that
will allow the electrolyte to be mixed and thus reconditioning the
battery cells. During this phase, the battery may produce some
water.
Step 3 : Test
Sulfated battery test
Step 4 : Desulfation
Battery desulfation algorithm.
Step 8 : Maintenance/Floating charge
Maintains battery charge level at its maximum.
Step 5 : Charge
Fast charge at maximum current to reach 80% charge level.
