Note:

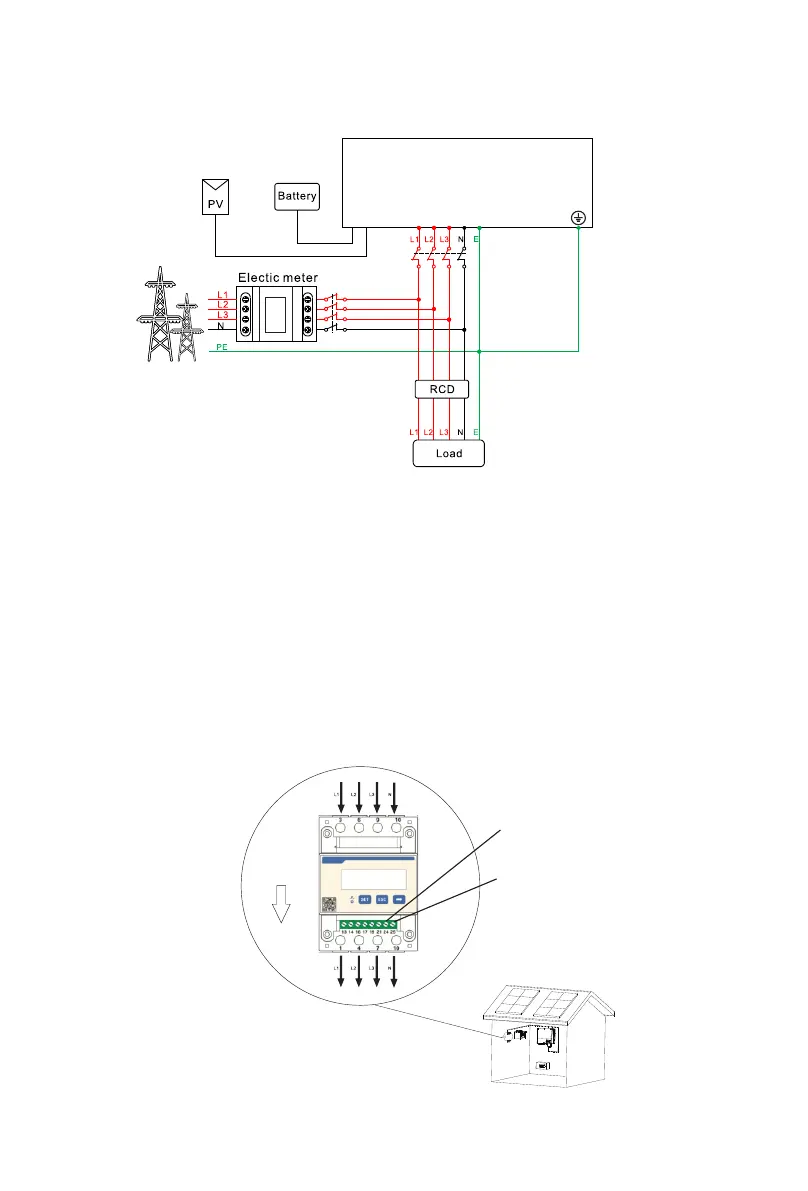

This diagram is an example for customers who only want to build the on-grid energy

storage system without backup function. The N line must be connected.

Figure 5.24

5.4.3 Three meter wiring methods of SPH

The three meter wiring methods are demonstrated below:

1. Three phase meter-CHNT

485A

(LAN line 5 )

485B

( LAN line 1 )

Grid

Load

Figure 5.25

Note:

For details about meter installation, please refer to the meter installation guide delivered

with the machine.

E

SPH Inverter

AC GRID

Diagram C

2. Three phase meter-Eastron

485A

LAN line5

485B

LAN line1

Figure 5.26

3. Three phase CT meter-Eastron

26
