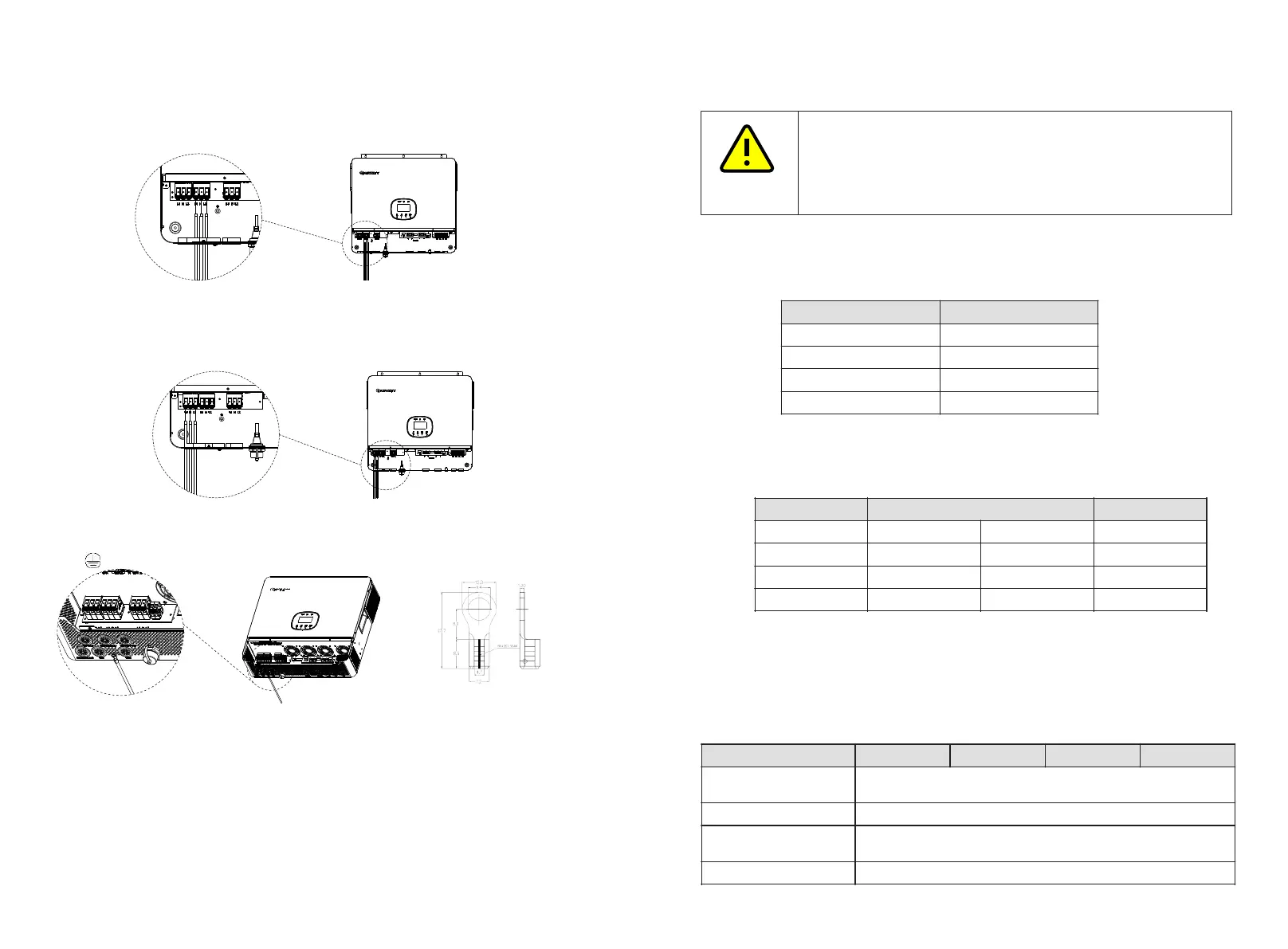

2.Insert Grid wires according to polarities indicated on terminal block and
ensure that the buckle presses the wire tightly.
L→ LINE (brown or black)，N→ Neutral (blue)，L2→LINE（grey）
3.Insert GEN or SMARTLOAD wires according to polarities indicated on terminal
block and ensure that the buckle presses the wire tightly.
(Refer to Program 90 for how to use them as generator input or smart output.)
L→ LINE (brown or black)，N→ Neutral (blue)，L2→LINE（grey）
4.Make sure the inverter metal housing is grounded (Ground in the grid system).
→Ground (yellow-green)
R-type terminal:
Precautions:
1)Beforeperformingtheaboveoperations,pleaseensurethatyouroperating
environmentis: Non-energizedenvironment.
2)Afterinsertingthewireaccordingtothepolaritymarkedontheterminal,don't
forgettocheckthatthescrewistightened or the buckle presses the wire tightly.
3)Afteryoucompleteallwiring,pleasecheckagaintoconfirmwhetherthe
corresponding wires are connected in the correct position to avoid misoperation
thatmaycausetheinvertertofailtoworkproperlyordamageyourequipment.
Thesedetailsthatcannotbeignoredensureagooduserexperiencetoacertain
extent.
3.5 PV Connection
— All wiring must be performed by a qualified personnel.
— Shock Hazard：Operation with power on is strictly prohibited.
— BeforeconnectingthePVinput,besuretoturnoffallcircuit
breakersandconfirmthatthemachineispoweredoff.
— Be sure to connect PV cable with correct polarity.
WARNING
Recommended breaker specification of PV input for a single inverter:
Model
1 unit*
SPE 12000 US
30A / 550Vdc
SPE 10000 US
30A / 550Vdc
SPE 8000 US
30A / 550Vdc
SPE 6000 US
30A / 550Vdc
2.It’ very important for system safety and efficient operation to use appropriate
cable for PV module connection. To reduce risk of injury, please use the proper
recommended cable size as below
Model
Wire Size
Torque value
SPE 12000 US
1 * 9 AWG
8.4mm²
1.2-1.6 Nm
SPE 10000 US
1 * 9 AWG
8.4mm²
1.2-1.6 Nm
SPE 8000 US
1 * 9 AWG
8.4mm²
1.2-1.6 Nm
SPE 6000 US
1 * 9 AWG
8.4mm²
1.2-1.6 Nm
3. PV Module Selection:
When selecting proper PV modules, please be sure to consider below parameters:
1.Open circuit Voltage (Voc) of PV modules not exceeds max. PV array open circuit
voltage of inverter. Exceeding the limit will cause damage to the inverter.
2.Open circuit Voltage (Voc) of PV modules should be higher than start-up
voltage. Lower than will lead to insufficient photovoltaic.
INVERTER MODEL
SPE 12000 US
SPE 10000 US
SPE 8000 US
SPE 6000 US
Max. PV Array Open
Circuit Voltage
550Vdc
Start-up Voltage
120Vdc
PV Array MPPT
Voltage Range
60Vdc~480Vdc（Recommend 380Vdc ）
Quantity Of PV Panels
Recommend2~11photovoltaicpanels
1211
3.5.1 Connection preparation
1. Before connecting to PV modules, please install separately a DC circuitreaker
between inverter and PV modules.
