Note: The RS485 port (for expansion) is used for communication expansion and
connection to external devices.
Note: In order to ensure the normal communication of lithium battery BMS, please
set the battery type as "Li" in program 5, and then LCD will automatically switch to
program 36 to select the communication protocol. Youcan Choose RS485
communication protocol whichisfromL01toL50,andyoucanalsochoose CAN
Communication protocolwhichisfromL51toL99. (About the specific protocol
address of the inverter, please consult the dealer or manufacturer to choose which
communication protocol to match the BMS).
1、Before connecting to AC input power source, please install a separate AC
breaker between inverter and Grid power source. This will ensure the inverter can
be securely disconnected during maintenance and fully protected from over
current of Grid. Please refer to typical amperage in below table as required
breaker size.
Recommended breaker specification of Grid for a single inverter:

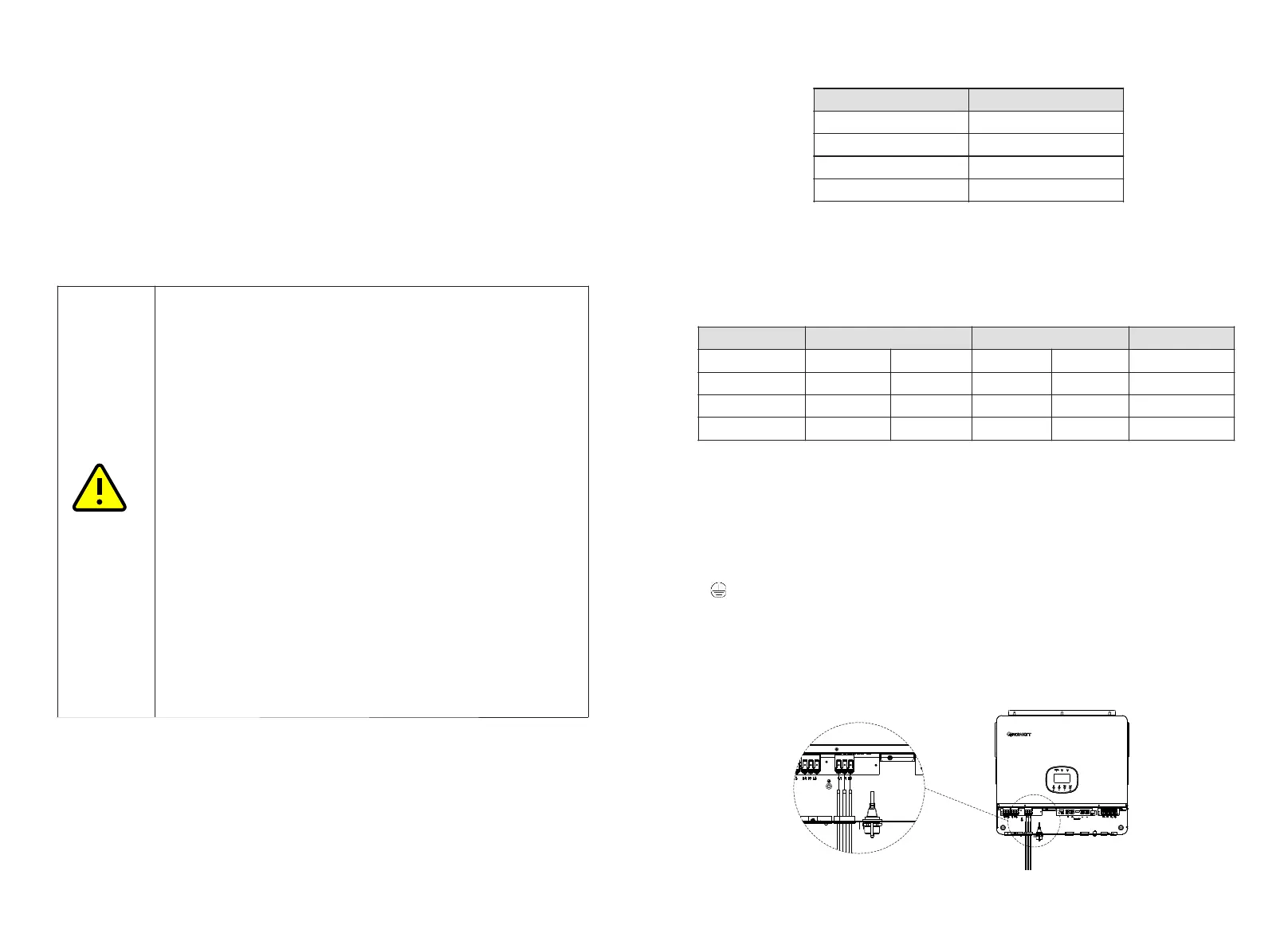

3.4 AC Connection
— All wiring must be performed by a qualified personnel.
— Shock Hazard：Be sure that AC power source is disconnected
before attempting to wire it to the unit.
— Always disconnect all circuit breakers before making Grid/
GEN/ AC output connection.
— Be sure to connect AC wires with correct polarity. If L and N
wires are connected reversely, it may cause utility short-
circuited when these inverters are worked in parallel
operation.
— There are three terminal blocks with “Grid”, “GEN/Smart
Load” and “Load” markings. Please do not mistakenly
connect the input and output connectors.
— Appliances such as air conditioner are required at least 2~3
minutes to restart because it’s required to have enough time
to balance refrigerant gas inside of circuits. If a power
shortage occurs and recovers in a short time, it will cause
damage to your connected appliances. To prevent this kind of
damage, please check with manufacturer of air conditioner
that if it’s equipped with time-delay function before
installation. Otherwise, this off grid solar inverter will trig
overload fault and cut off output to protect your appliance but
sometimes it still causes internal damage to the air
conditioner.
WARNING
3.4.1 Connection preparation
Model
1 unit*
SPE 12000 US
70A / 230VAC
SPE 10000 US
70A / 230VAC
SPE 8000 US
70A / 230VAC
SPE 6000 US
70A / 230VAC
2、It is very important for system safety and efficient operation to use appropriate
cable for Grid connection , GEN connection, Load connection and Smart Load
connection. To reduce risk of injury, please use the proper recommended cable
size as below.
Recommended AC wires size:
Model
AC Input Wire Size
AC Output Wire Size
Torque value
SPE 12000 US
1 * 6 AWG
13.3mm²
1 * 6 AWG
13.3mm²
1.2-1.6 Nm
SPE 10000 US
1 * 6 AWG
13.3mm²
1 * 7 AWG
10.55mm²
1.2-1.6 Nm
SPE 8000 US
1 * 6 AWG
13.3mm²
1 * 8 AWG
8.37mm²
1.2-1.6 Nm
SPE 6000 US
1 * 6 AWG
13.3mm²
1 * 8 AWG
8.37mm²
1.2-1.6 Nm
3.4.2 Grid/GEN/ Load wires Connection：
PleasefollowthestepsbelowtomakeLoad/ Smart Load/Grid/GENconnections:
1. Removetheinsulationcoversofthesevenwires.
2.ConnectthePEprotectionlinefirst,andthenlockintheLoad,
Smart Loadline,Gridline,andGENlineinorder.
3. Correspondingpolaritypositionsmarkedontheterminals.
Pleaserefertothefollowing:
→ Ground (yellow- green), L1→LINE (brown or black), N→ Neutral (blue) ,
L2→LINE（grey）
1.Insert first Load wires according to polarities indicated on terminal block and
ensure that the buckle presses the wire tightly.
L1→ LINE (brown or black)，N→ Neutral (blue)，L2→LINE（grey）
