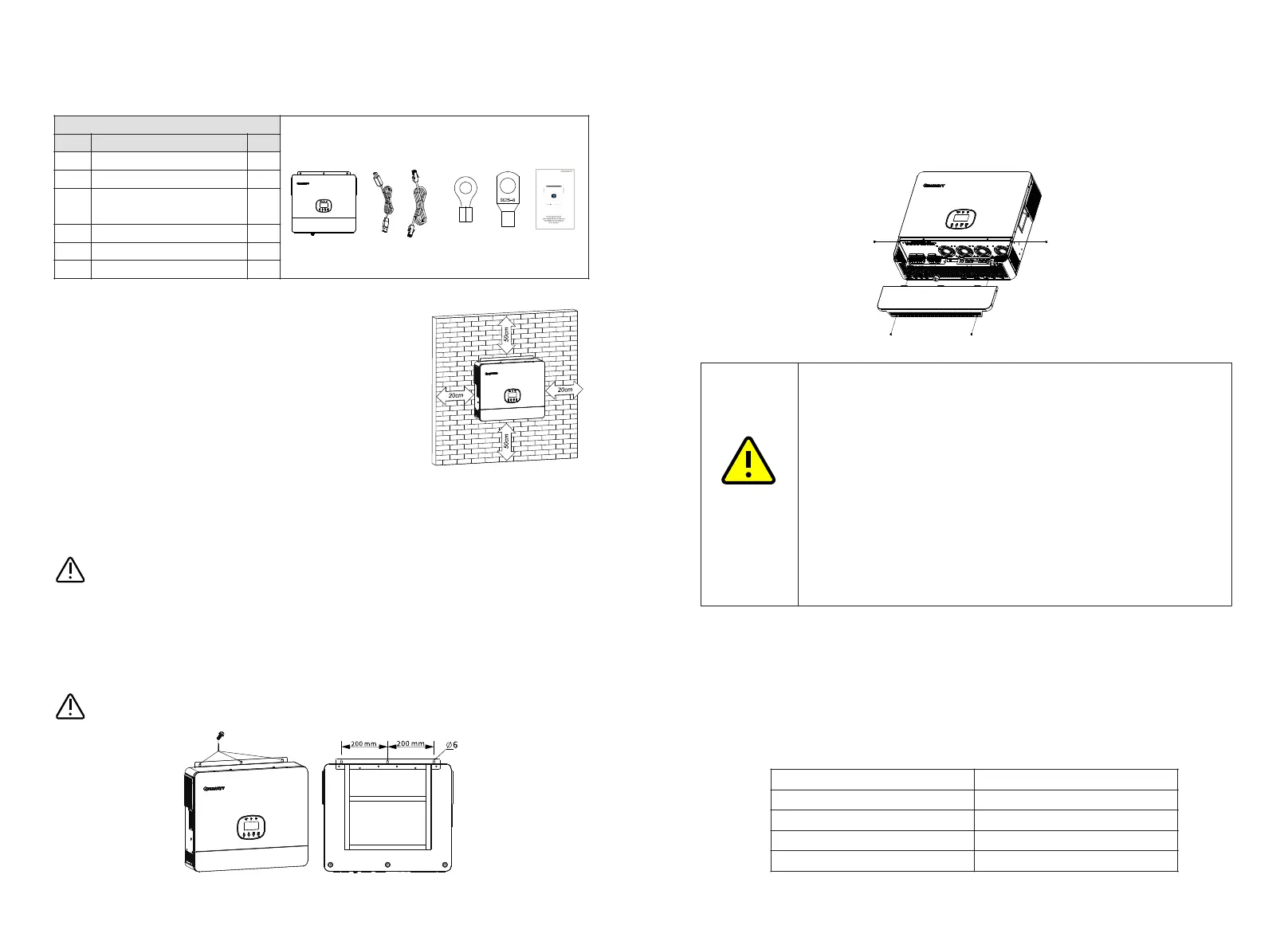

3. Installation Instructions
Consider the following points before selecting where
to install:
Ÿ Install this inverter at eye level in order to allow the
LCD display to be read at all times.
Ÿ The ambient temperature should be between -10°C
and 50°C to ensure optimal operation.
Ÿ The recommended installation position is to be
adhered to the wall vertically.
3.1 Accessory list
Part List
Item
Item Name
Qty.
A
The unit
1
B
Communication cable
1
C
Parallel
communication cable
1
D
R-type terminal
1
E
O-type terminal
4
F
User manual
1
A B C D E
F
3.2 Points for attention
Ÿ Donotinstallintoonarrowconfinedspaceandpayattentiontoventilation.
Be sure to keep other objects and surfaces as shown in the right diagram to
guarantee sufficient heat dissipation and to have enough space for removing
wires.
If the energy storage is installed in areas with salt damage, it will be
corroded and may cause fire.
Therefore, do not install it outdoors in areas with salt damage. The areas
with salt damage are defined as the areas which are not 500m away from shore
or will be affected by sea breezes. The areas affected by the sea breezes vary
depending on meteorological conditions (e.g. typhoons, monsoons) or
topographical conditions(dams, hills).
SUITABLE FOR MOUNTING ON CONCRETE OR OTHER NON-COMBUSTIBLE
SURFACE ONLY.
Install the unit by screwing three screws. It’s recommended to use M4 or M5
screws.
Preparation for wiring.
Before connecting all wiring, please take off bottom cover by removing four
screws as shown below.
All wiring must be performed by a qualified person.
— Shock Hazard：Installation must be performed with care due
to high battery voltage in series.
— Always disconnect all circuit breakers before making
connections to the battery power cable.
— Make sure the battery power cable positive (+) must be
connected to battery positive (+), negative (-) must be
connected to battery negative (-).
— Do not place anything between the flat part of the inverter
terminal and the ring terminal. Otherwise, a short circuit may
occur, resulting in overheating and fire.
— Do not apply anti-oxidant substance on the terminals before
terminals are connected tightly.
WARNING
3.3.1 Wiring preparation
3.3 Battery Connection
1、For safety operation and regulation compliance, it’s requested to install a
separate DC breaker (over-current protector) or disconnect device between
battery and inverter. It may not be requested to have a disconnect device in some
applications, however, it’s still requested to have DC breaker installed. Please
refer to typical amperage in below table as required breaker size.
Recommended DC breaker specification of battery for a single inverter:
Model
1 unit*
SPE 12000 US
400A / 60VDC
SPE 10000 US
350A / 60VDC
SPE 8000 US
300A / 60VDC
SPE 6000 US
200A / 60VDC
65
