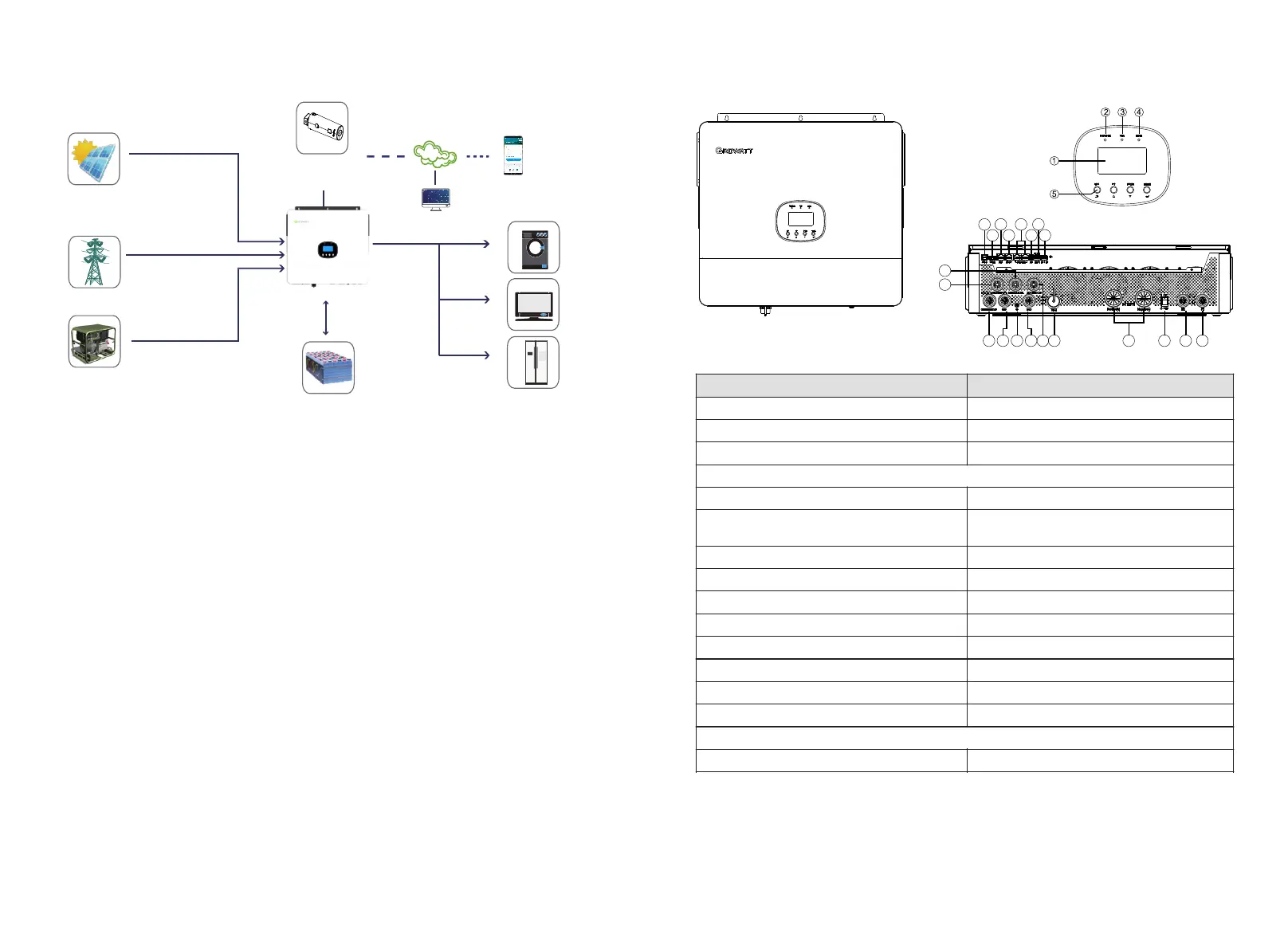

2. Product Overview
Solar Panel
Utility Grid
Generator
ShineWiFi-X2/
Shine4G-F
PV inverter
Battery
SERVER
Internet
Shinephone APP
LOAD
This is a multifunctional PV Hybrid inverter, integrated with a MPPT solar charge
controller, a high frequency pure sine wave inverter and a UPS function module in
one machine, which is perfect for off grid backup power and self-consumption
applications. This inverter can work with or without batteries.
The whole system also need other devices to achieve complete running such as PV
modules, generator, or utility grid. Please consult with your system integrator for
other possible system architectures depending on your requirements. The WIFI /
4G module is a plug-and-play monitoring device to be installed on the inverter.
With this device, users can monitor the status of the PV system from the mobile
phone or from the website anytime anywhere.
Fig 2.1Hybrid Power System
2.1 Product Features
Ø Rated power 6KW to 12KW, power factor 1.
Ø 2 stringsofMPPT, Max. PVarraypower 9000watt to18000Watt.
Ø MPPTVoltagerange60Vdc-480Vdc, 550Voc.
Ø Pure sine wave inverter and MPPT solar charge controller integrated inside.
Ø Built-in ATS for automatic grid and generator switching.
Ø Able to work with or without battery.
Ø With CAN/RS485 for BMS communication.
Ø WIFI/4G wireless monitoring(optional).
Ø Parallel operation up to 9 units (only with battery connected).
Ø With smart load function.
2.2 Panel and Port Definitions
Panel operation
1. LCD display
2. Status indicator
3. Charging indicator
4. Fault indicator
5. Function buttons
Communication port
6. USB communication port
7. Connection 21
8. BMS communication port (support
CAN/RS485 )
9. RS485 communication port (for
expansion)
10. Parallel communication ports
11. Parallel communication DIP
12. NC
13. Dry contact
21. WIFI / 4G communication port
Connection port
16. Generator input(smart load)
17. Grid input
18.PE
19. AC output(main)
22. Battery input
24. PV1 input
25. PV2 input
Other
23. Power on/off switch
Fig 2.2 Panel and Port Definitions
2322
1816 17
15
14
8
13
12
11
10
9
7
6
19 20 21
24 25
4
3
