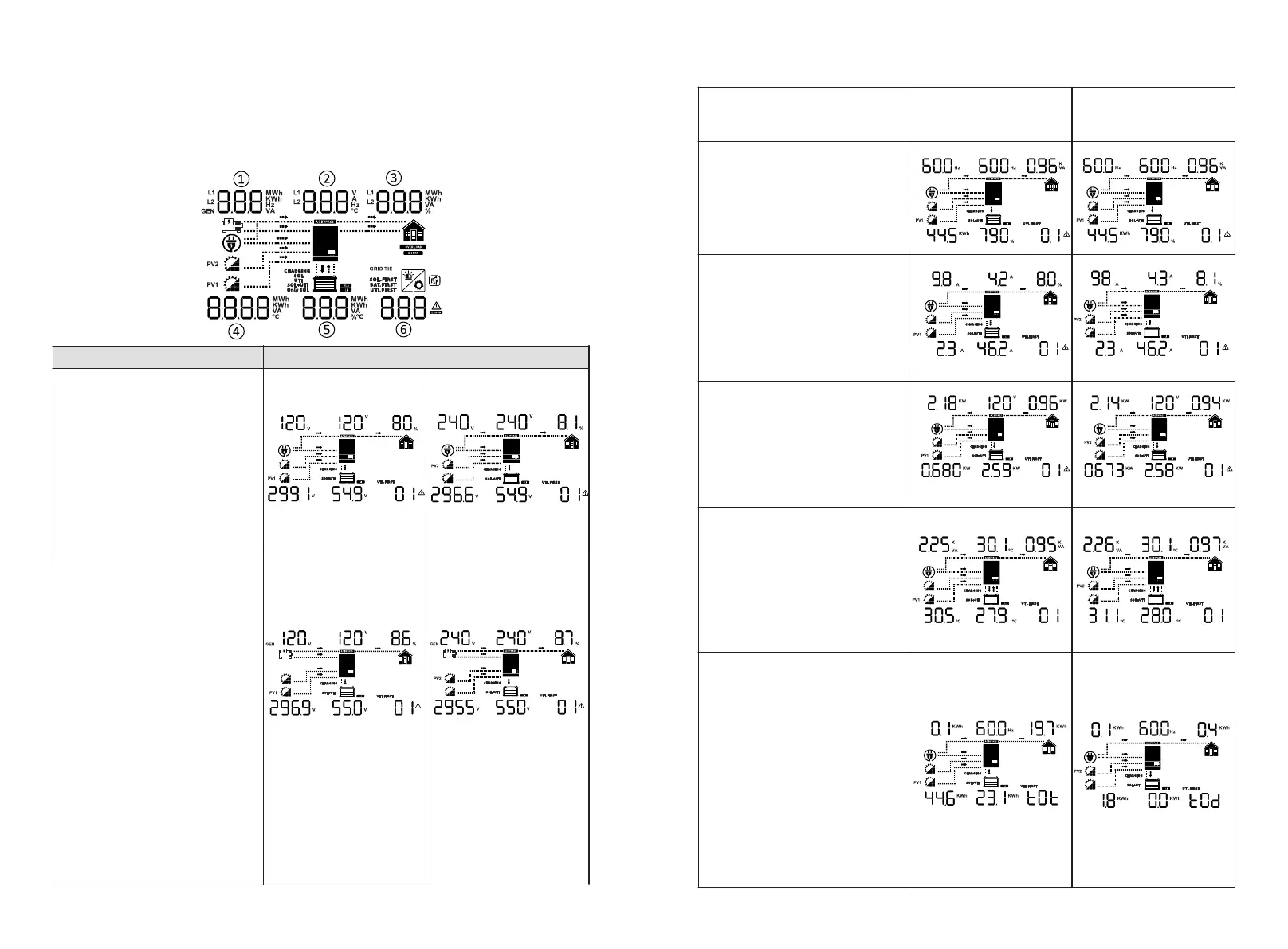

Setting Information
LCD display
①AC Input voltage
Left: Grid Input Phase voltage
Right: Grid input Line voltage
② Output voltage
③ Load percentage
④ Left: PV1 input voltage
Right: PV2 input voltage
⑤ Battery voltage
⑥ Warning or Fault code
*Default Display Screen
①AC Input voltage
Left: Generator Input Phase
voltage
Right: Generator input Line
voltage
(If the AC input is only
generator input, it means that
what is displayed at this time is
the input voltage of the
generator. The current, power
and frequency displayed after
turning the page are also the
input parameters of the
generator, which will not be
explained below.)
② Output voltage
③ Load percentage
④ Left: PV1 input voltage
Right: PV2 input voltage
⑤ Battery voltage
⑥ Warning or Fault code
① AC Input frequency
② Output frequency
③ Load power
④ PV energy sum
⑤ Battery percentage
⑥ Warning or Fault code
① AC Input current
② Output current
③ Load percentage
④ Left: PV1 input current
Right: PV2 input current
⑤ Battery charging current
⑥ Warning or Fault code
① AC input power
② Output voltage
③ Load power
④ Left: PV1 input power
Right: PV2 input power
⑤ Battery charging power
⑥ Warning or Fault code
① AC input power
② Inverter temperature
③ Load power
④ Left: PV1 temperature
Right: PV2 temperature
⑤Left: LLC temperature
Right: Battery temperature
⑥ Warning or Fault code
①Left: Today's AC input energy
Right: Total AC input energy
② Output frequency
③ Left: Today's load energy
Right: Total load energy
④ Left: Today's PV energy
Right: Total PV energy
⑤ Left: Today's battery
discharge energy
Right: Total battery
discharge energy
⑥Indicate today's energy or
total energy.
4.2.2 Display Information
The LCD display information will be switched in turns by pressing “UP” or
“DOWN” key. The selectable information is switched as below order: voltage,
frequency, current, power, temperature, energy, firmware version.
L1
L2
L1
L2
L1 L1
L2 L2
L1 L1
L1
L2
L1
L2
L2 L2L2
L1 L1
L2 L2
L2 L2
L1 L1
