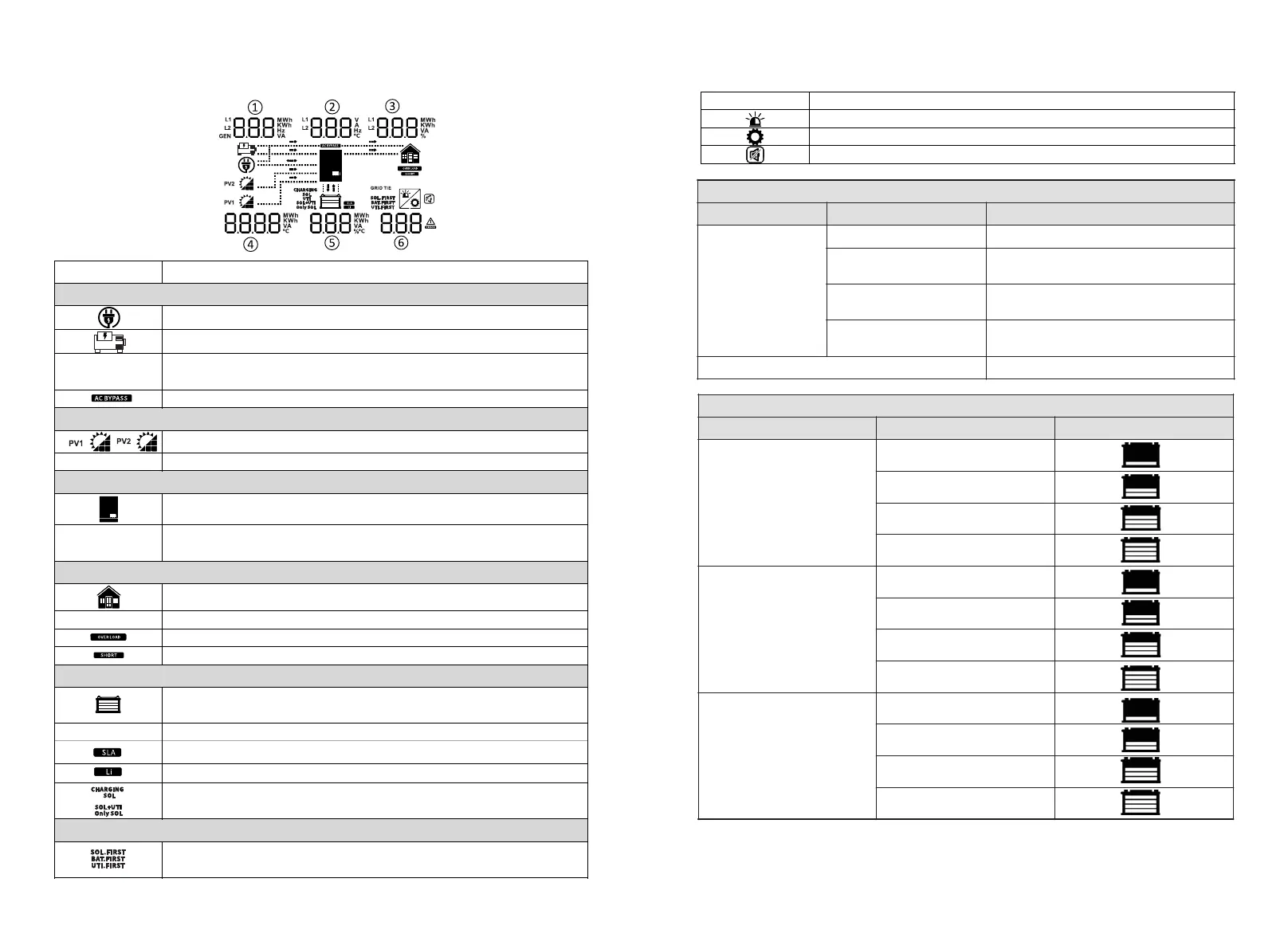

4.2.1 LCD Display Icons
Icon
Description
AC Input Information
Grid icon
Generator icon
①
Indicate AC input power, AC input voltage, AC input frequency,
AC input current
Indicate AC power loads in bypass
PV Input Information
Left：PV1 input icon Right：PV2 input icon
④
Indicate PV power, PV voltage, PV current, etc.
Output Information
Inverter icon
②
Indicate output voltage, output current, output frequency,
inverter temperature
Load Information
Load icon
③
Indicate power of load, power percentage of load
Indicate overload happened
Indicate short circuit happened
Battery Information
Indicate battery level by 0-24%, 25-49%, 50-74% and 75-100%
in battery mode and charging status in line mode.
⑤
Indicate battery voltage, battery percentage, battery current
Indicate SLA battery
Indicate lithium battery
Indicate charging source priority: solar first, solar and utility, or
only solar
Other Information
Indicate output source priority: solar first, utility first, SBU mode
or SUB mode
In battery charge mode, battery icon will present Battery Charging Status
Status
Battery voltage
LCD Display
Constant Current
mode / Constant
Voltage mode
<48V
4 bars will flash in turns.
48 ~ 50V
Bottom bar will be on and the other
three bars will flash in turns.
50 ~ 52V
Bottom two bars will be on and the
other two bars will flash in turns.
> 52V
Bottom three bars will be on and the
top bar will flash.
Floating mode. Batteries are fully charged.
4 bars will be on.
In battery discharge mode, battery icon will present Battery Capacity
Load Percentage
Battery Voltage
LCD Display
Load >50%
< 41.2V
41.2~43.2V
43.2~45.2V
> 45.2V
50%> Load > 20%
< 43.6V
43.6~46V
46~47.6V
> 47.6V
Load < 20%
< 44.8V
44.8~46.8V
46.8~48.8V
> 48.8
⑥
Indicate warning code or fault code
Indicate a warning or a fault is happening
Indicate it’s during setting values
Indicate the alarm is disabled
18
17
