3.2 Moving the inverter
Ÿ When placing the inverter on the ground, it is essential to put foam
or cardboard underneath it to prevent damage to the heat sink.
Ÿ When moving the MID inverter, do not place your hands on the
terminals, which are not designed to support the weight of the
inverter.
WARNING
3.3 Appearance
Ÿ
The MID 10-20KTL3-XH has two MPPT
inputs.
Ÿ
The MID 25-30kTL3-XH and Australian MID 10-30KTL3-XH has
three MPPT
inputs.
NOTICE
17
18
①
The number of PV connectors for 10K-20K inverters is 4/4.
The number of PV connectors for 25K-30K and Australian MID 10-30KTL3-XH.
inverters is 6/6.
②
The number of PV metal contacts for 10K-20K inverters is 4/4.
The number of PV metal contacts for 25K-30K and Australian MID 10-30KTL3-XH.
inverters is 6/6.

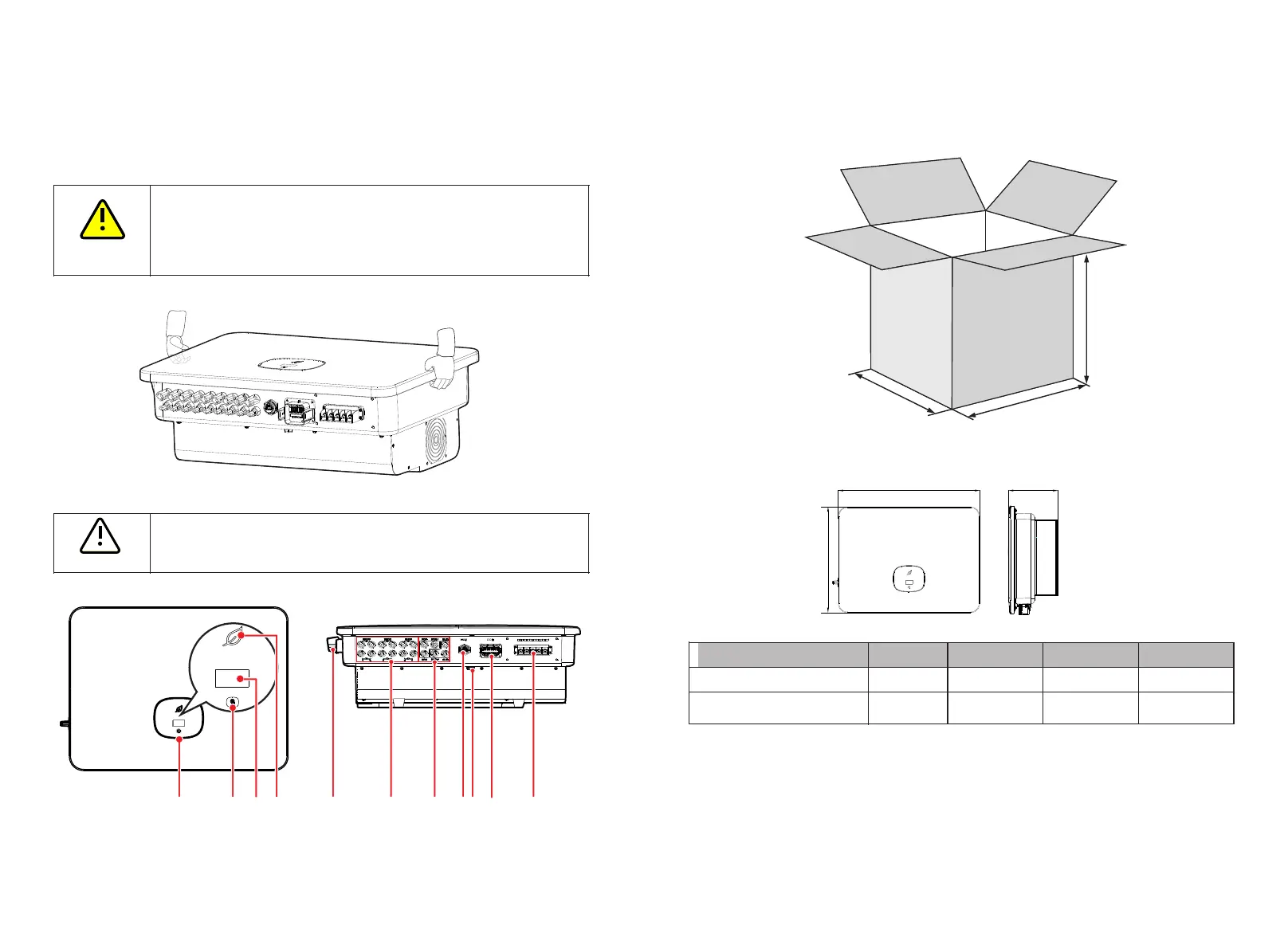

Figure 3-2 Lifting the inverter
Figure 3-3 Appearance
A B C D
E F G H I
J
K
（A）Front Panel （B）Touch Button （C）OLED Screen （D）LED Indicator
（E）DC Switch （F）PV Terminal
（G）Battery Terminal
（H）USB Port
（I）VENT Vaive
（J）COM Port
（K）AC Terminal
3.4 Dimensions and weight
3.4.1 Dimensions of the package
3.4.2 Dimensions and weight of the MID inverter
W
D
H
Model
H
e
i
g
h
t (
H
)
Width (W)
Depth (D)
Weight
MID 10-20KTL3-XH
4
3
3 m
m
579 mm
217.5 mm
29.5kg
MID 25-30KTL3-XH
AustralianMID10-30KTL3-XH
4
3
3 m
m
579 mm
217.5 mm
30 kg
3.5 Storing the inverter
Ÿ Keep the storing temperature between -40℃ and 70℃, and the relative humidity
between 5% RH and 95% RH.
Ÿ Do not remove the exterior package of the inverter.
Ÿ In case that the inverter has been stored for over two years, it must be inspected and
tested by professional personnel before being put into operation.
Ÿ A maximum of 4 inverters can be stacked with package. Please use extreme caution
when stacking the inverter to prevent device damage and personal injury resulting
from a falling inverter.
Figure 3-4 Dimensions of the packing carton
Figure 3-5 Dimensions of the inverter
Table 3-2 Dimensions and weight
303 mm
627 mm
713 mm
