4 Installation
4.1 Required tools
4.2 Installation requirements
4.2.1 Environment requirements
Ÿ When determining the installation location, avoid water pipes and wires buried in the
wall to prevent accidents during drilling.
Ÿ Do not install the inverter in areas where flammable or explosive materials are
stored.
Ÿ The inverter is protected to IP66, supporting both indoor and outdoor installation.
Ÿ If the inverter is installed in an area with dense vegetation, in addition to regular
weeding, the ground beneath the inverter (recommended area: 3m × 2.5m) should be
hardened, such as by laying concrete or gravel.
Ÿ Do not expose the inverter to direct sunlight, rain, snow, etc. It is recommended to
Ÿ The inverter should be installed in a dry and well-ventilated environment to ensure
proper heat dissipation.
Ÿ The inverter generates high temperature on the enclosure during operation, so
please install it in a location that is inaccessible to children.
20
19
Table 4-1 Installation tools
Drilling bit
(Ф=10 mm)
Hammer drill Hammer Level
Cross-head
screwdriver
Vacuum Marker
Measuring tape Heat gun Multimeter
Wire stripper
Slanted
mouth plier
Crimping plier
Safety gloves Goggles
Mask Safety shoes Helmet
Tools
4.2.2 Carrier requirements
Ÿ In residential areas, avoid mounting the inverter on gypsum boards or walls made of
similar materials that has poor sound insulation performance to prevent the noise
generated during its operation from disturbing residents in the living area.
Ÿ The carrier where the inverter is installed must be fire-proof and high-temperature
resistant.
Ÿ Ensure that the installation surface meets the load-bearing requirement for
supporting the weight of the inverter.

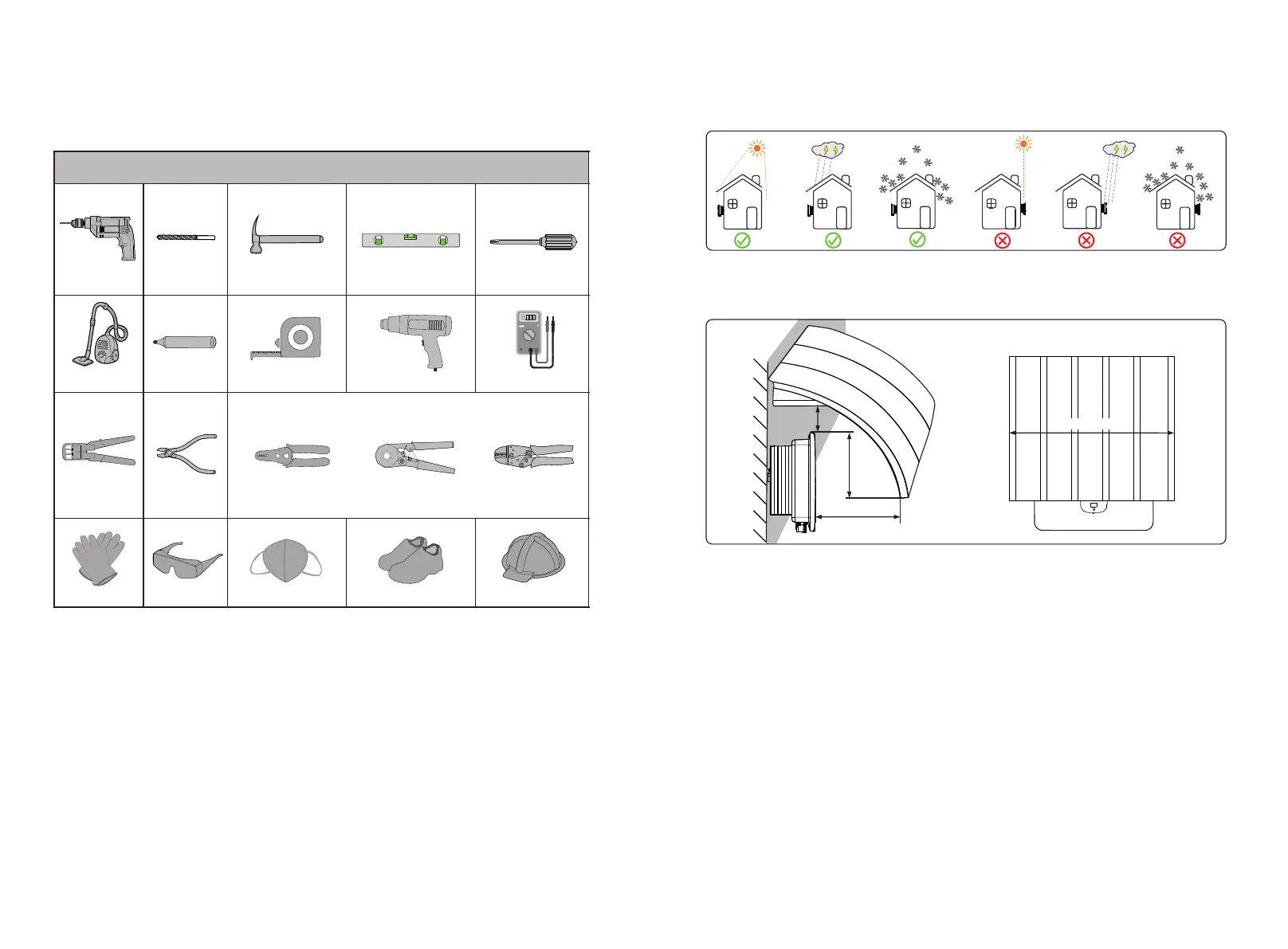

Figure 4-1 Environment requirements
Figure 4-2 Installing an awning and clearance requirements
≥300mm
≥200mm
≥300mm
≥1000mm
