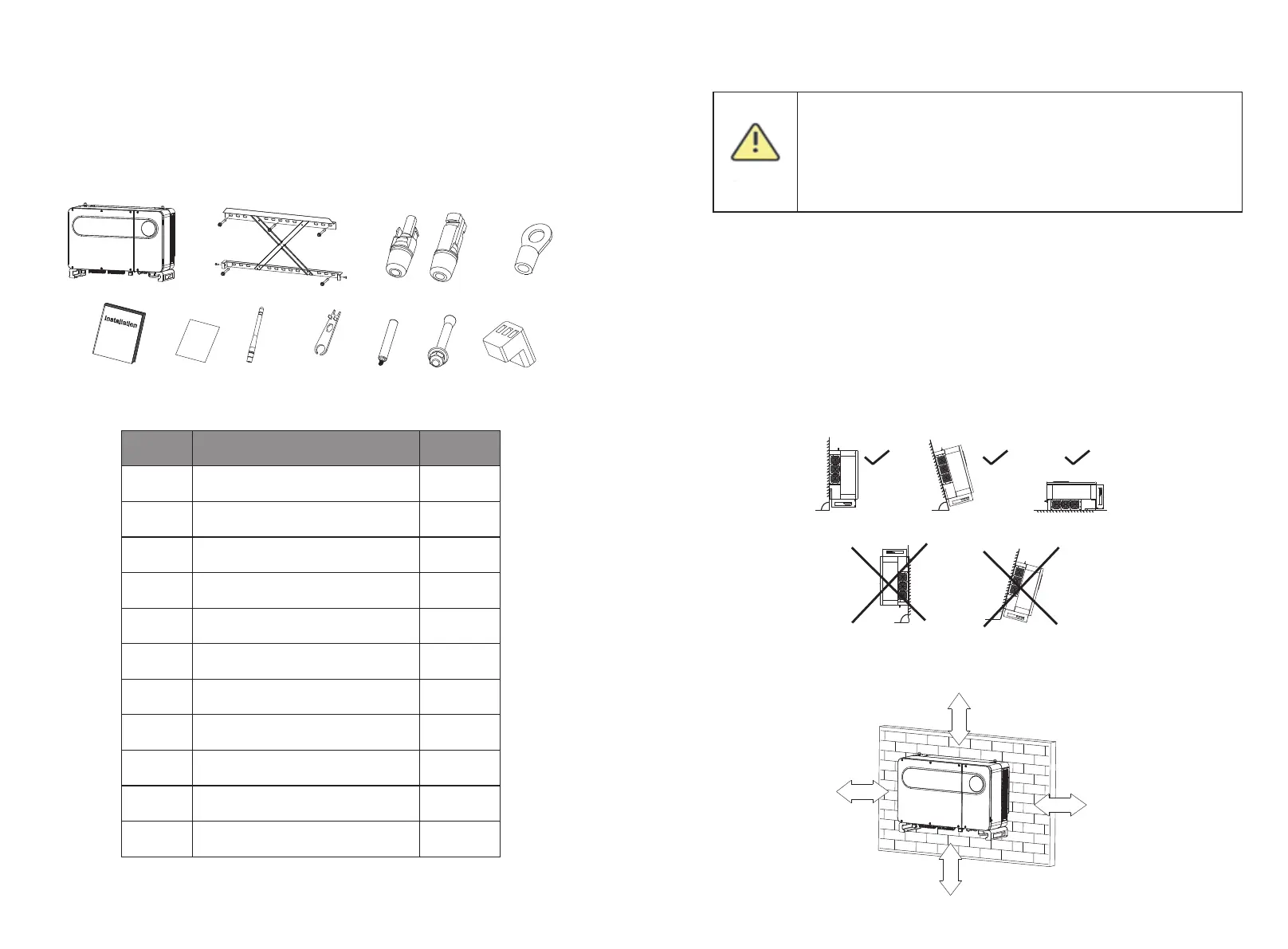

4 Unpacking
Checking before installation
1>Before unpacking the inverter, check the outer packing materials for damage.
2>After unpacking the inverter, check that the contents are intact and complete. If any
damage is found or any component is missing, contact your supplier.
Package contents:
Mark
Descriptions
Number
A
Inverter
1
B
Wall mount
1
C
PV+ terminal,PV- terminal
12/12
D
SC50-10
5
E
Installation manual
1
F
Warranty card
1
G
Antenna(opt)
1
H
Removal tool of PV terminals
1
I
Removal handle(opt)
2
J
Wall mount screw
5
K
RS485 terminal
2
Notice: Though the outer package of inverter is firm, but please treat it with care.
Installation 5
5.1 Basic Installation Requirements
A. Ensure that the installation wall is solid enough to bear the inverter(Inverter weight
please refer to installation manual Chapter3, 3.2 ).
B. There must be enough installation space to fit the size of inverter.
C. Do not install inverter on flammable or heat-intolerant buildings.
D. This inverter is IP 65 protection, you can install it indoor or outdoor.
E. To avoid inverter performance de-rate due to the over heat, please do not expose
the inverter under direct sunlight.
F. The installation humidity should be from 0-95%.
G. The surrounding temperature of inverter should be from -25℃ - +60℃.
H. Inverter should be installed in a vertically or rear tilted surface, please refer to
following drawings.
Fig 5.1
0~90°
90°
90°
I. To ensure the inverter can work smoothly and easy for personnel to operate, please
notice there is sufficient space for inverter, refer to following drawing.
Fig 5.2
10
9
•
moving the inverter because it is heavy.
•Do not place the inverter with its wiring and signal terminals at the
bottom contacting with floor or any other object because the terminals
are not designed to support the weight of inverter.
•When placing inverter on the floor, put foam or paper under the
inverter to protect its cover.
To prevent device damage and personal injury, keep balance when
CAUTION
1000mm
1000mm
1000mm
1000mm
Fig 4.1
P
ASSPORT
A
B
C
D
E
F
G
H
I
J
K
