J. Do not install inverter close to strong electromagnetic signal.
K. Install the inverter out of children's reach.
5.2 Installation Environment Requirements

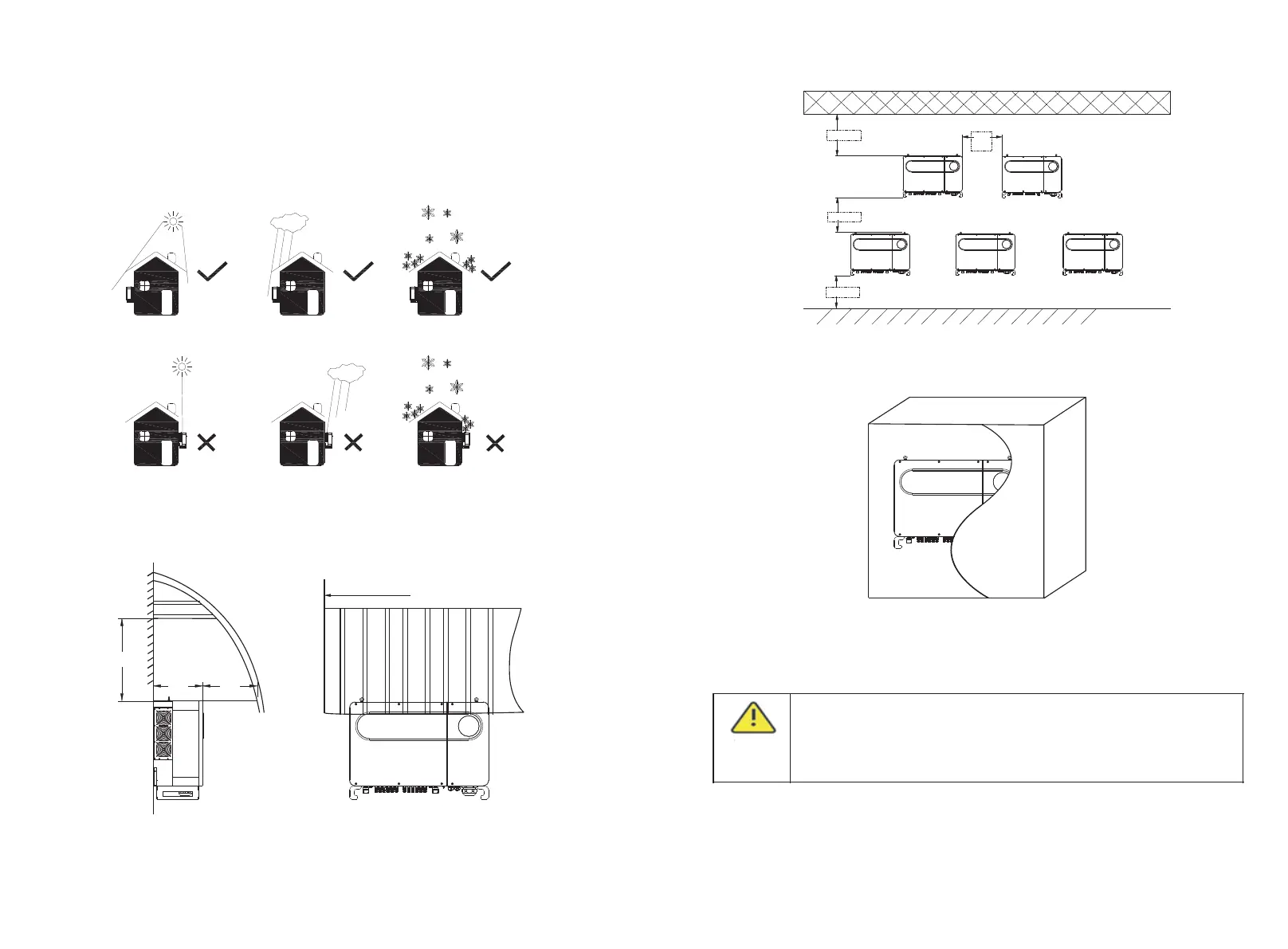

A. Although the inverter's protection level is IP 65, to extent inverter lifespan you still
need to avoid rain and snow, please refer to following drawings.
Fig 5.3
B. To reduce the de-rate performance of the inverter and extend inverter's life span,
we strongly recommend you install an awning, for the distance between an awning
and inverter, please refer to following drawing.
500mm
306mm
500mm
2000mm
Fig 5.4
C.When you install multiple inverters on one surface, inverters should be installed as
following drawing.
Fig 5.5
D. Do not install inverter into an enclosed space like following drawing.
Fig 5.6
12
11
5.3 Moving Requirements
•
avoid personnel injury.
•Do not place the inverter with its wiring and signal terminals at the
bottom contacting with floor or any other object because the terminals
are not designed to support the weight of inverter.
The inverter is heavy, please move it with care and keep balance to
Plan 1：
1>As shown in Fig5.7, use a rope to tie at ring and handle, lift the inverter from package
and move to installation position.
2>When you are moving the inverter, please keep the balance.
Notice: There is front and bottom mark on the package.
1000
mm
1000mm
1000mm
1000mm
WARNING
