STANDARD INSTALLATION MANUAL FOR POLARIS 580W (HOOP INSTALLATION)
5.plug connector4.screw on connector
3.plug pin to connector1.prepare cable connector 2.crimp pins

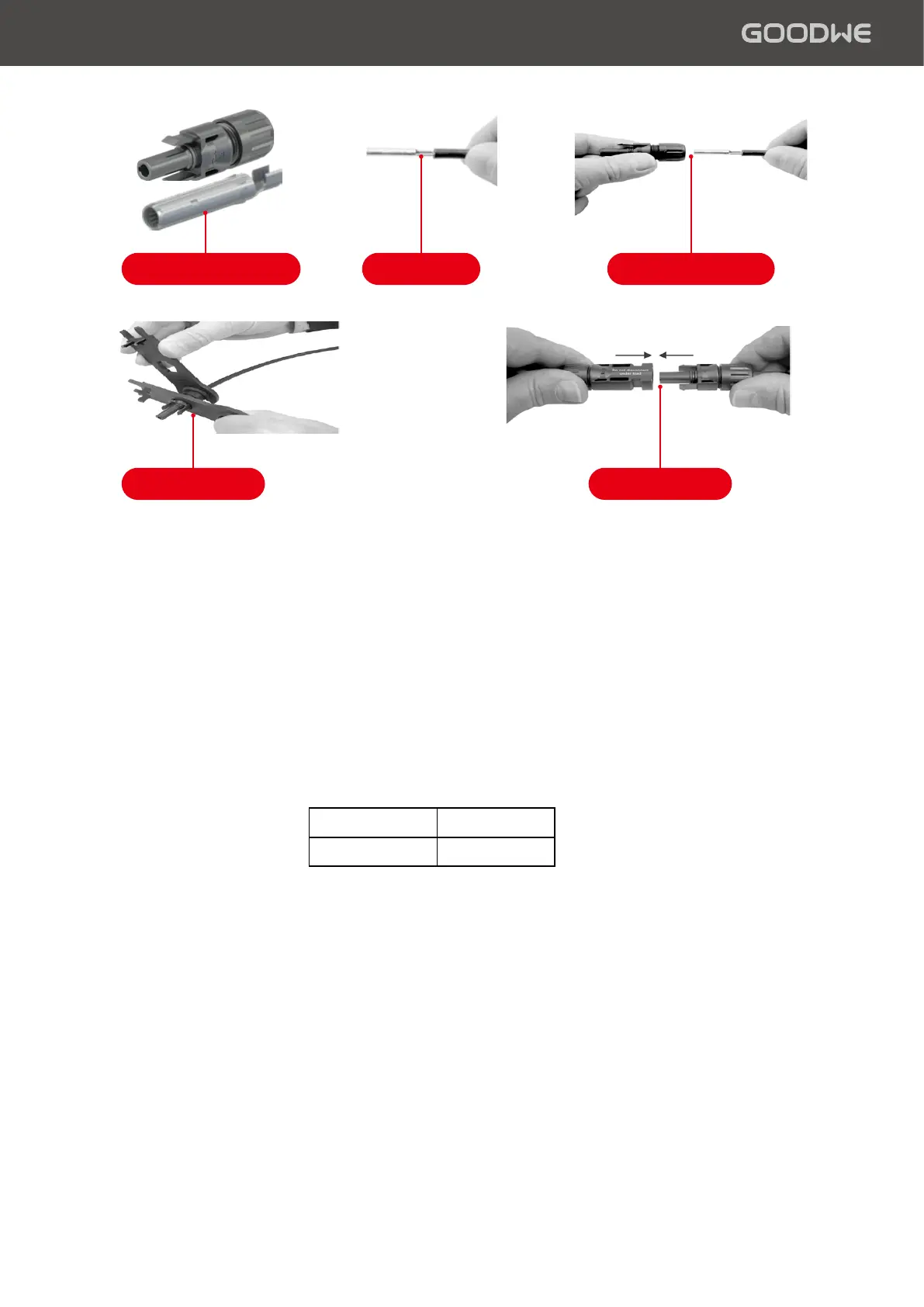

FIGURE 33 CABLE CONNECTOR PRODUCTION METHOD
Sub-project requirements
● PVC ame-retardant rigid plastic pipe and its attached oxygen index should be 27% or more.
● Insulation of the cables should be tested before being threaded into conduits.
● The minimum allowable bending radius of the cable laid through the pipe is six times of cable
diameter.
● The conduit clip spacing of exposed conduits should be:
Φ20 pipes are laid openly along the wall with a maximum distance of 1.5m between pipe clips;
Φ25 pipes are laid openly along the wall with a maximum distance of 2m between pipe clips.
Allowable value of deviation for the laying of open piping.
● Cables from dierent circuits, dierent voltages or AC and DC cables, should not be worn in
the same conduit.
● There shall be no joints in the wires in the conduits.
● Connect the plugs tightly.
7.2 LIGHTNING PROTECTION & GROUNDING
Lightning protection
●Refer to the "GB 50057-2010 Building Lightning Protection Design Code" when implementing.
Functional grounding - Repeated grounding of distribution boxes and inveers
Functional grounding:
● Repeat grounding for distribution boxes and inveers. Use tinned copper braid or soft
Straightness <1.5mm/m
Veicality <1.5mm/m
