06 Electrical Connection
User Manual V1.2-2024-10-30
ON-GRID
BACK-UP
BAT
PV
Meter
E-N Link
N-BAR
E-BAR
or
L3
N
PE
BMS
RCD
L1
L1 L2
L3
N
N
PE
PE
L1
L2
L2
L3
L3
N
PE
L3
L2
L2
L1
L1
N
PE
RCD
Main PanelInverter
Battery
PV
string
Do not wire in this position
if N and PE cables are
connected together.
BACK-UP
load
Normal loads
Utility
Grid
Meter

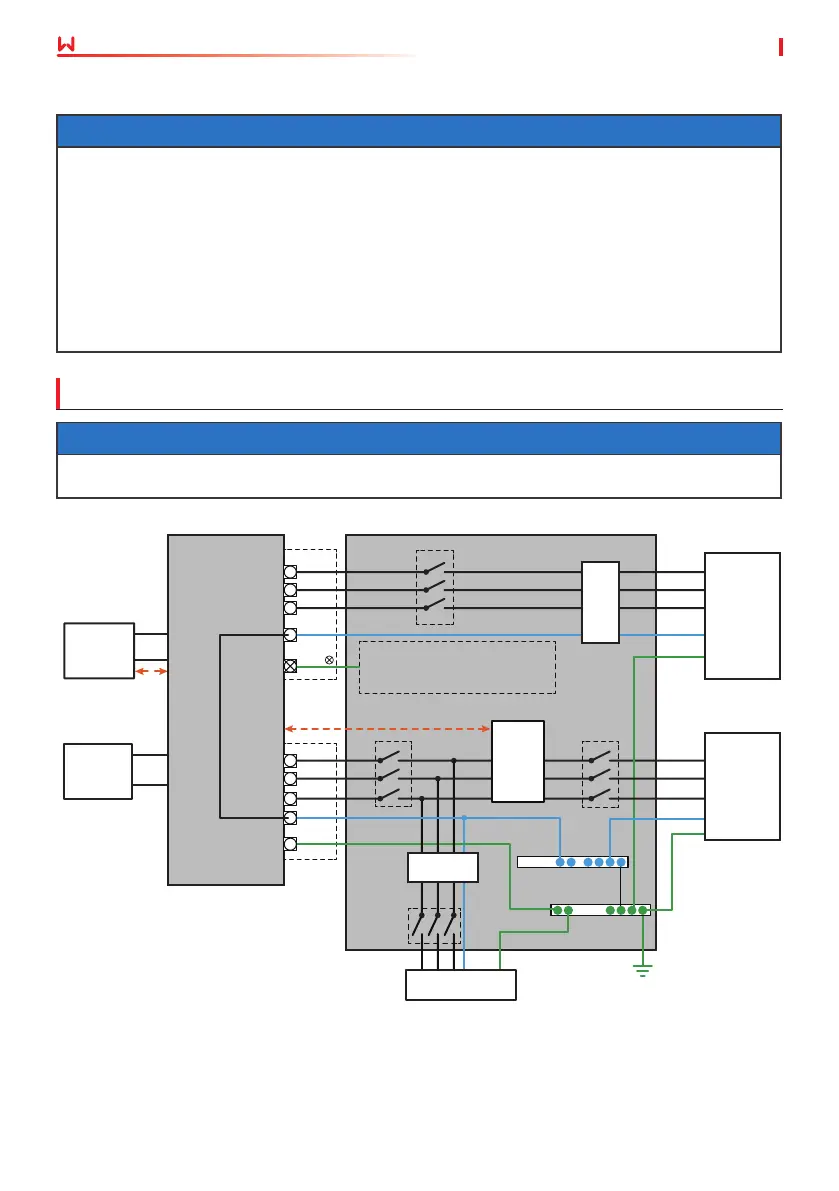

6�2 System Wiring Diagram
N and PE cables are connected together in the Main Panel for wiring�
NOTICE
Below wirings are applicable to areas in Australia, New Zealand and etc.
NOTICE
• N and PE wiring via ON-GRID and BACK-UP ports of the inverter are dierent based on the
regulation requirements of dierent regions. Refer to the specic requirements of local
regulations.
• There are built-in relays inside of the inverter’s ON-GRID and BACK-UP AC ports. When the
inverter is in the o-grid mode, the built-in ON-GRID relay is open; while when the inverter
is in grid-tied mode, it is closed.
• When the inverter is powered on, the BACK-UP AC port is charged. Power o the inverter
rst if maintenance is required for the loads connected with BACK-UP ports. Otherwise, it
may cause electric shock.
• Only ETC series inverters support PV string connection.
