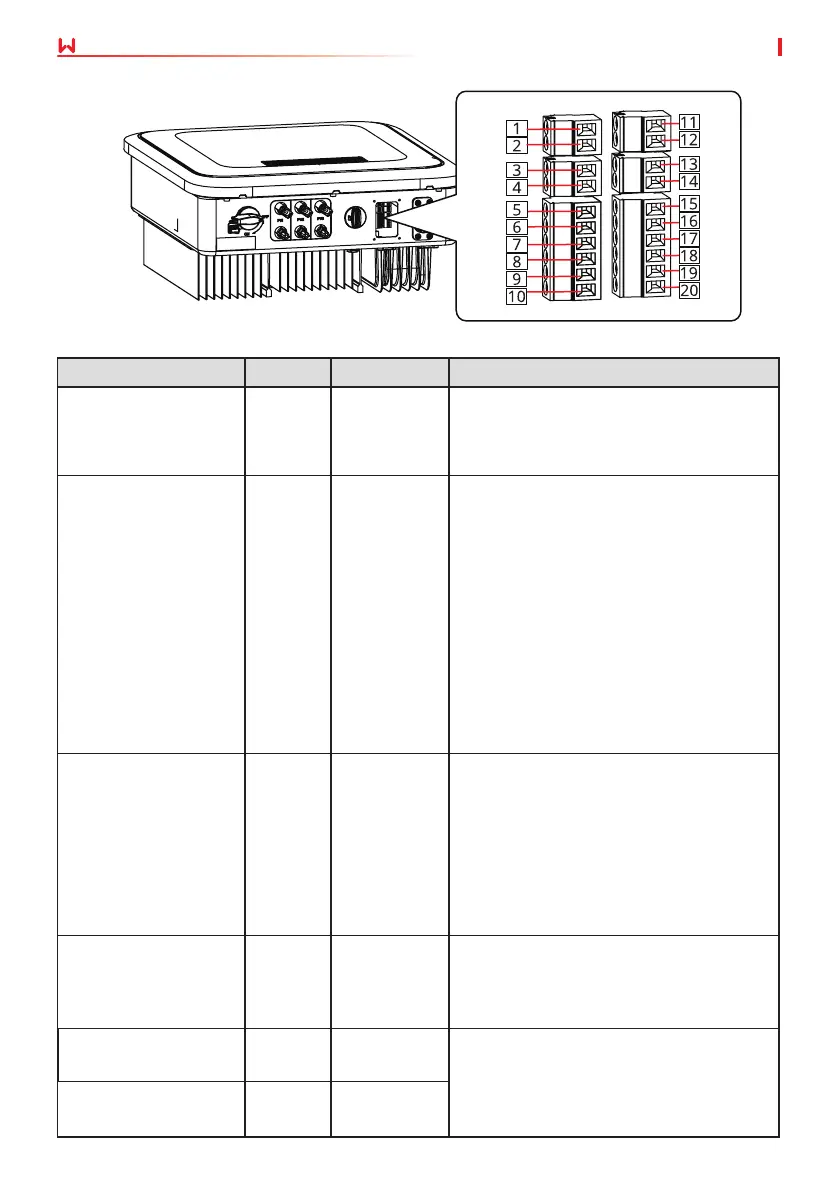

06 Electrical Connection
28
User Manual V2.2-2025-07-24
Communication Type Terminal Denition Function
RS485 RS485
1: RS485 -
2: RS485 +
It supports connecting to the upper
computer for commissioning. Please
contact the after-sales service for detail
information.
Remote Shutdown
or Emergency Power
O(For India
only
)
RSD
3: DI-
4: DI+
The AC side of the inverter is automatically
disconnected after the emergency switch
gives a shutdown signal, stopping grid
connection. An external emergency
shutdown switch is required and
controlled through the DI port:
• Remote Shutdown: if the DI port is
connected, the machine will be started;
if the DI port is disconnected, the
machine will be stopped.
• Emergency Shutdown: if DI port is
connected, it will stop the machine; if
DI port is disconnected, it will start the
machine.
Load control DO
5: DO-
6: DO+
optional.
• Supports connecting to dry contact
signals to realize functions such as load
control. Switching capacity of DO is
24V DC@0.5A. NO/COM is the normally
open contact.
• Supports SG Ready heat pump, which
can be controlled by the dry contact
signal.
Dry contact I/O
7: I/O2-
8: I/O2+
9: I/O1-
10: I/O1+
Reserved.
Meter Meter
11: Meter-
12: Meter+
Realize the anti-backfeed function by
connecting the meter and the CT. Contact
the manufacturer to purchase the devices
if you need them.
CT CT
13: CT-
14: CT+
6.5.2 Communication Port Introduction
