06 Electrical Connection
29
User Manual V2.2-2025-07-24
6.5.3 DRM Description

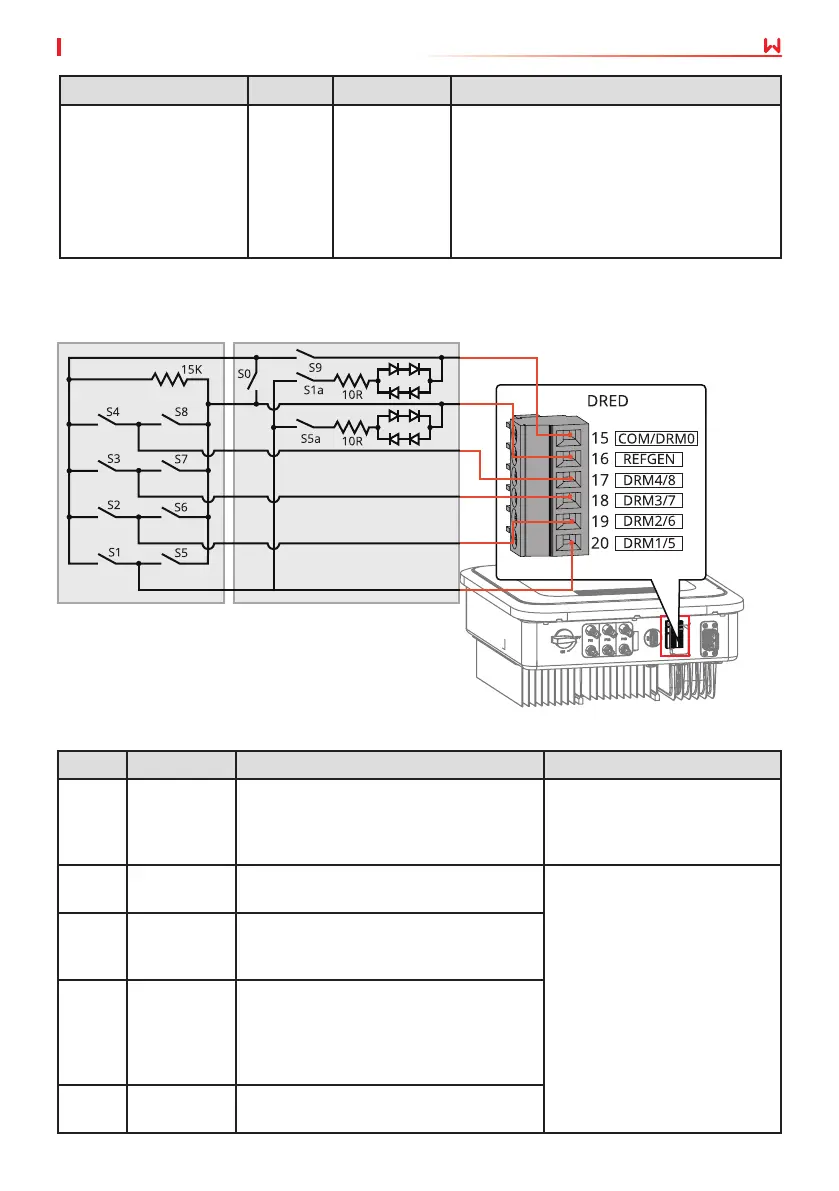

Wiring Diagram of DRM
The inverter supports DRM0 and DRM 5-8 modes. Below are the requirements:
Mode Inverter Port Requirement Note
DRM0 COM/DRM0 Turn on S0 and the inverter shuts
down.
Turn o S0 and the inverter is back to
on-grid.
-
DRM5 DRM1/5 Turn on S5 and the inverter does not
output Active Power.
When two or more than
2 DRMs are working
simultaneously, select any
two of them can satisfy the
strictest requirement.
DRM6 DRM2/6 Turn on S6 and the inverter outputs
Active Power no more than 50% of its
rated power.
DRM7 DRM3/7 Turn on S7 and the inverter outputs
Active Power no more than 75% of
its rated power. In the meantime,
the inverter consumes the maximum
Reactive Power.
DRM8 DRM4/8 Turn on S8 and the inverter is back to
Active Power output.
DRM Device
Communication Type Terminal Denition Function
DRED DRED
15: COM/
DRM0
16: REFGEN
17: DRM4/8
18: DRM3/7
19: DRM2/6
20: DRM1/5
The inverter meets the DRED grid
scheduling requirement in Australia and
New Zealand. Functions for DRM 1-4 ports
are reserved. Devices for DRM shall be
prepared by the clients.
