18 MAD MAXX Quick Start and Safety Manual
3. Line up the camlock quarter-turn pins in each Truss Mount Bar with the camlock
fastener points (see G in Figure 4) in the base of the fixture as shown in Figure 2
and turn the camlock locking levers a full 90° clockwise to lock the Bar to the
fixture. Check that all camlock fasteners are securely fastened.
4. See Figure 3. Fasten two chains or cables to the eyelets
(arrowed) in the fixture yoke using shackles passed
through the eyelets and fastened securely so that they
cannot open accidentally.
5. Fasten lifting equipment to the chains or cables as
shown in ‘Transport and storage’ on page 12 and lift the
fixture straight up out of the flightcase. Apply the
fixture’s pan and tilt locks as soon as the fixture is free of
the flightcase.
6. Keep the pan and tilt locks applied while lifting and
moving the fixture. Only release the pan and tilt locks
when physical installation is complete. Do not forget to
check that both of the locks are released before
applying power!
Installation location
Make sure that the head will be at least 0.1 m / 4 in. away from combustible materials
(wood, paper, textiles, etc.) including curtains and stage scenery when the fixture is
installed. Make sure that there will be a minimum of 1 m / 40 in. between the fixture
and any surface to be illuminated. Make sure that there is no risk of collision when
the head pans and tilts. Allow a minimum center-to-center distance of 600 mm / 24
in. when installing fixtures side by side.

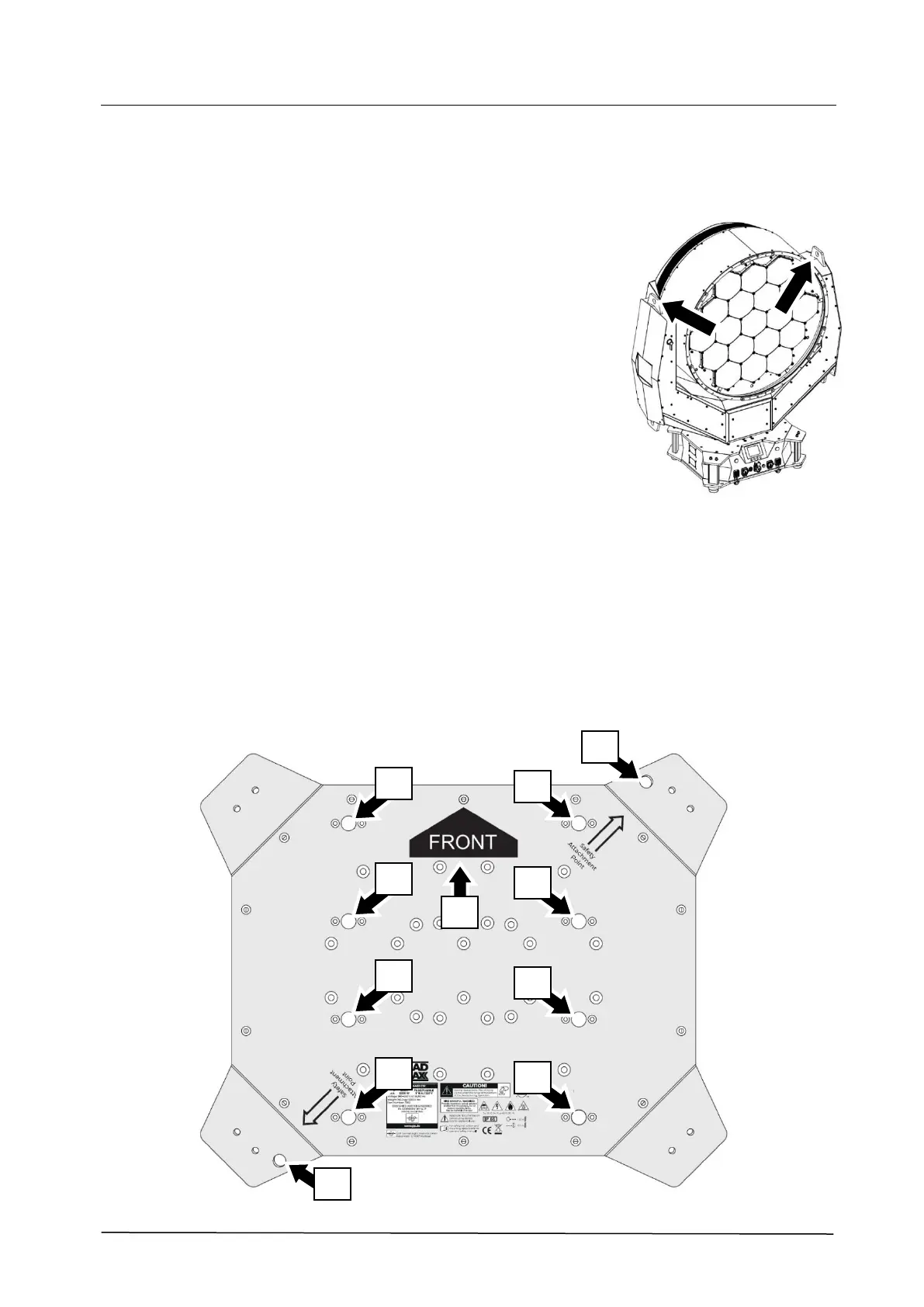

Figure 4. Fixture baseplate
G
G
G
G
G
G
G
G
F
F
H
Figure 3. Lifting eyelets
