German Light Products GLP MAD MAXX
Rev. 20250625-1 19
Identifying the front of the fixture
See Figure 4. An arrow H marked FRONT is printed on the baseplate. Install the
fixture with this arrow pointing towards the stage or main target.
When the yoke is in its pan home position (pan centered), increasing the DMX value
for tilt moves the head towards the front. The connections panel and control panel
are on the back of the fixture.
Mounting the fixture
The fixture may be placed on a stable horizontal surface or rigged as described in this
chapter. If there is a risk of injury or damage if an item of mounting or rigging
hardware fails, you must secure the fixture with at least one secondary attachment
such as a safety chain or safety cable as described in this chapter.
Installing upright on a horizontal surface
You may install the fixture standing upright on a stable horizontal surface. Make sure
that the fixture and cables do not present a risk of tripping or causing injury. Make
sure that the head will not collide with another fixture or any other object when it
moves through its full pan and tilt ranges.
We recommend that you secure the fixture against movement and tipping by
anchoring the base to the surface using ratchet straps attached to the handles (K in
‘Fixture overview’ on page 15) and fastened to secure anchoring points.
Warning! Do not use ratchet straps to support the weight of the fixture or as a safety
attachment to secure the fixture.
Important! Do not overtighten the ratchet straps, or you risk distorting the handles.
Mounting on a rigging truss
To suspend the GLP MAD MAXX from a rigging truss or similar structure using
rigging clamps:
1. Fasten one or two Truss
Mount Bars and rigging
clamps to the base of the
fixture as described in
‘Preparing to install the
fixture’ on page 17. If you
are using only one Truss
Mount Bar, fasten it along
the center axis of the
fixture baseplate as shown
in Figure 5.
2. Use lifting equipment to lift the fixture up to the truss, then fasten the rigging
clamps securely around the rigging truss chords.
3. Secure the fixture against clamp failure as described in ‘Securing the fixture with
a safety chain or cable’ on page 20 .
4. Make sure that the head will not collide with another fixture or any other object
when it moves through its full pan and tilt ranges.

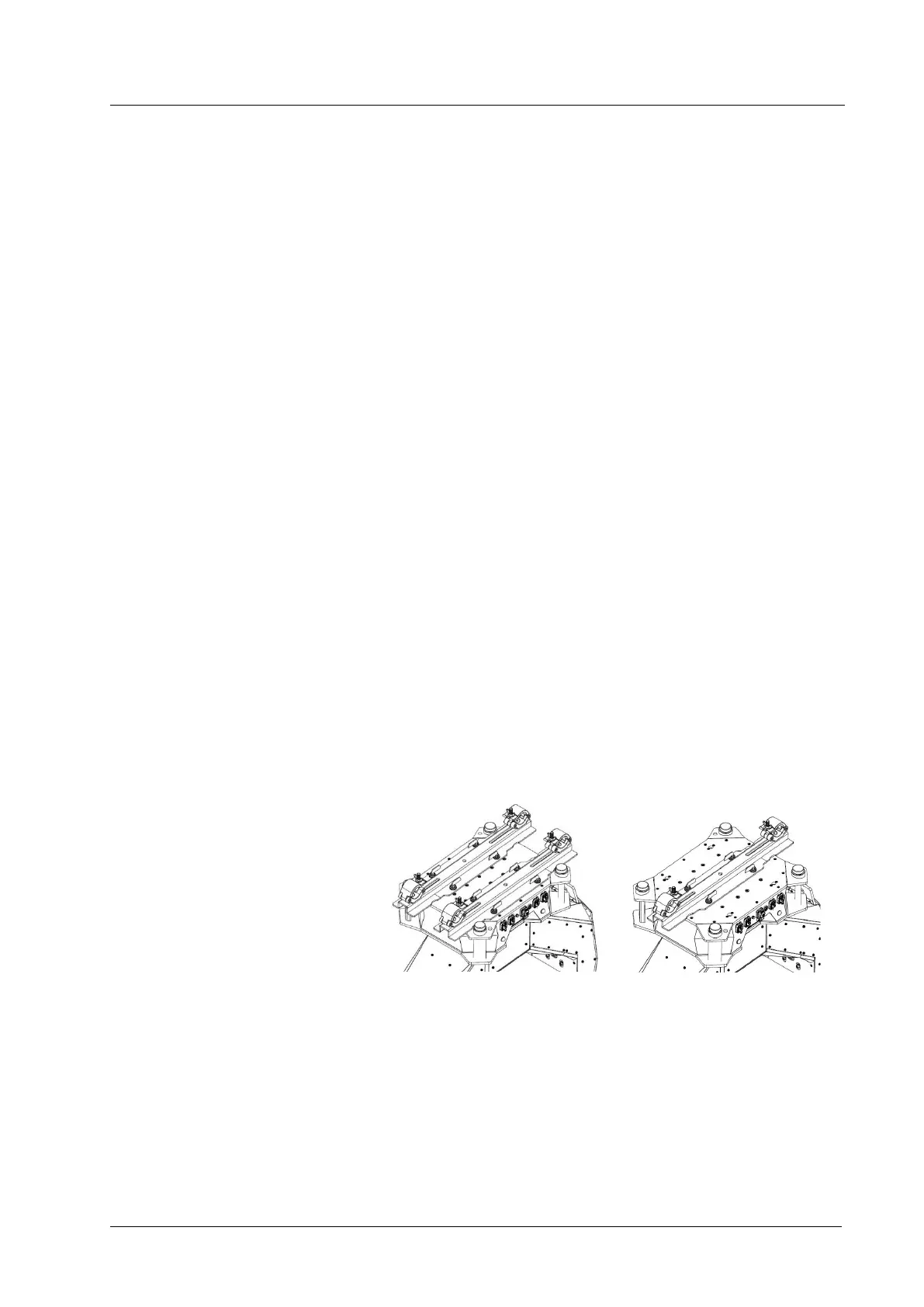

Figure 5. Truss Mount Bar options
