12 impression® FR1 User Manual
CTC
The CTC DMX channel lets you adjust color temperature from 2500 to 10 000 K.
You should normally set RGBW levels to 100% when you begin to use the CTC channel,
but after you have selected a color temperature on the CTC channel you can fine-
tune it using the RGBW channels.
Shutter effects
The impression FR1 features an electronic dimmer / shutter system that provides pulse
and strobe effects.
Dimming
0 – 100% continuous dimming is available.
Light
output
DMX control value

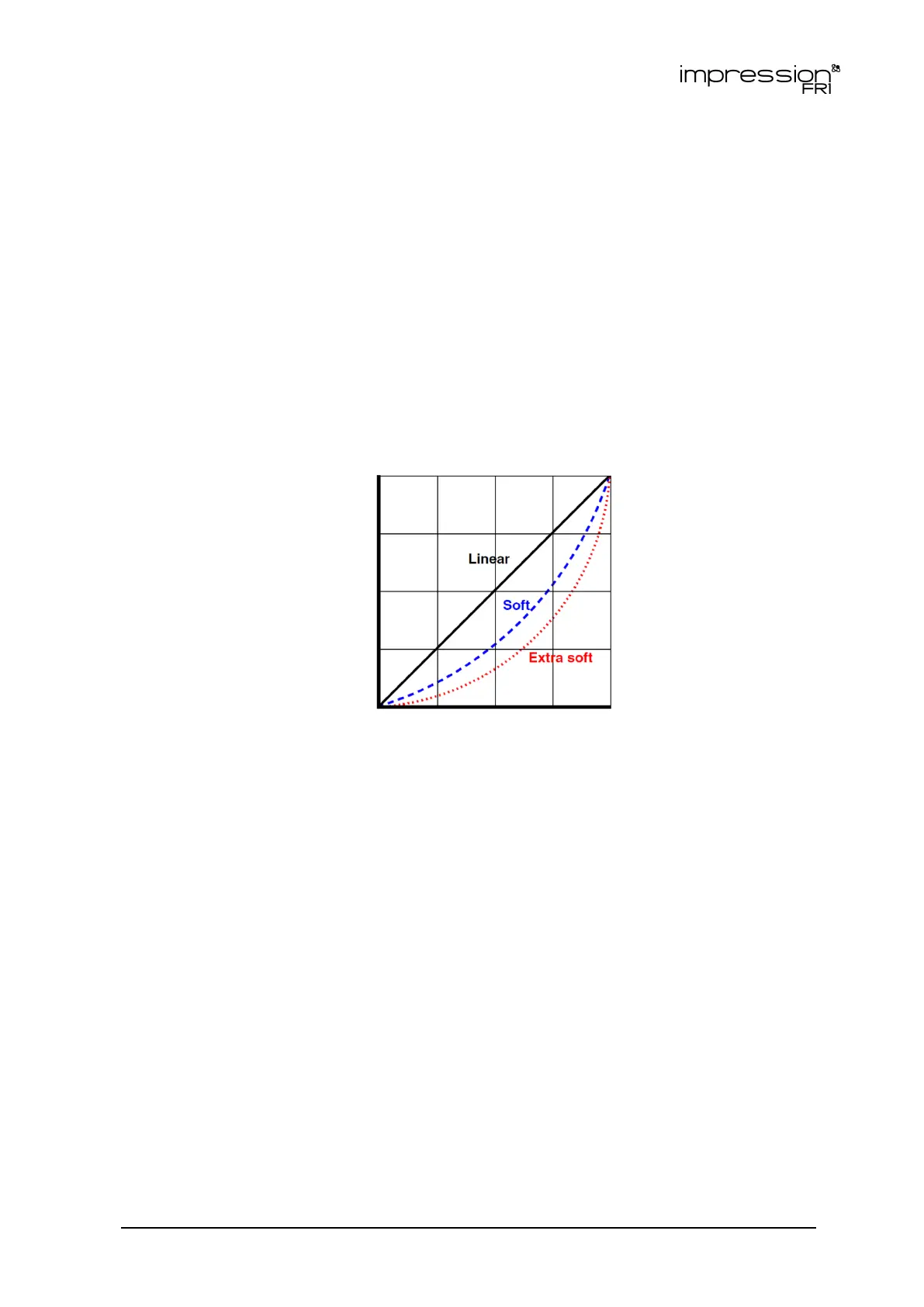

Figure 3. Dimming curves
See Figure 3. You can select from three different dimming curves using the control
panel or the Control/Settings DMX channel: Linear, Soft and Extra soft:
Light output using the Linear curve will appear to increase and decrease evenly
throughout the dimming range.
The Soft and Extra soft curves give finer control at low light levels (where the eye is
more sensitive to changes in light level) and coarser control at high levels.
The default setting is Extra soft.
Fan modes
The four different cooling fan modes give you a range of options to choose from
depending on how much you want to give priority to high-intensity light output or to
low fan noise:
Regulated gives priority to light output. If the fixture is blacked out, fans run at
minimum speed. When light output intensity is increased, temperature regulation
Bekijk gratis de handleiding van GLP impression FR1, stel vragen en lees de antwoorden op veelvoorkomende problemen, of gebruik onze assistent om sneller informatie in de handleiding te vinden of uitleg te krijgen over specifieke functies.
