20 Fusion FS 16Z User Manual Rev. 20240625-01
3. Fasten the Clamp Brackets B to the mounting plates on the back of the fixture as
shown in Figure 8, inserting the quarter-turn fasteners and then turning the quarter-
turn fastener handles C a full 90° clockwise to lock them.
4. Hold the fixture up to the truss chord, pass the rigging clamps around the truss
chord, then tighten the clamps to install the fixture securely on the truss.
5. In temporary installations, secure each fixture with a safety cable as described in
‘Securing fixtures with a safety cable’ on page 16 if there is any risk that the fixture
will cause injury or damage if it falls.
Side-to-side attachment
See Figure 9. Locking channels A at both
ends of FS 16Z fixtures accept FS 16Z
locking pins B. This feature lets you align
fixtures to each other quickly and
accurately to form an unbroken line of
pixels.
Warning! Do not use the locking channels and pins to support the weight
of fixtures unless the fixtures are hanging vertically one above the other. If
fixtures are not hanging vertically, each individual fixture must be
supported by fastening it securely to a surface or structure as directed in
this chapter, and the locking pins may be used for alignment purposes
only

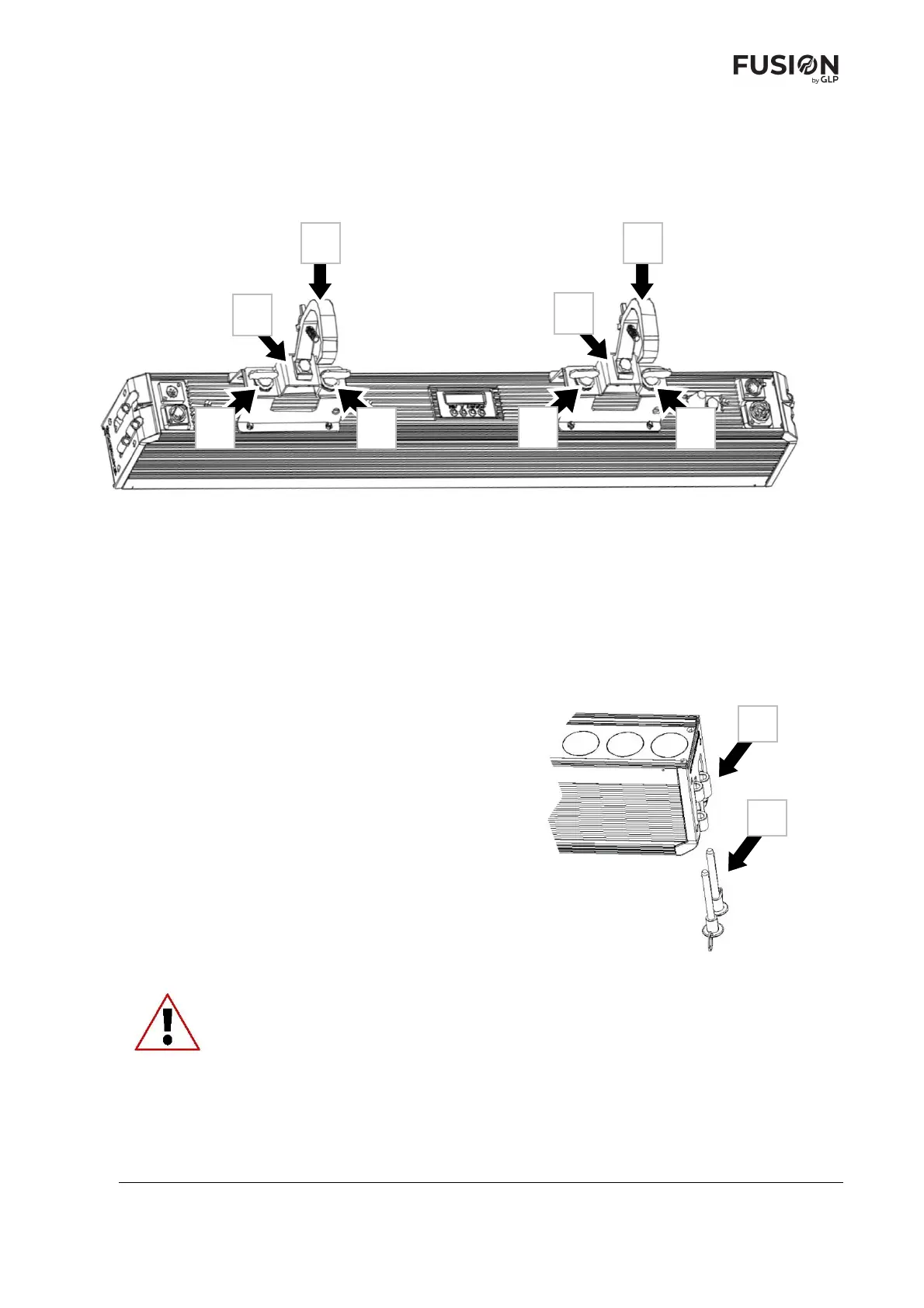

Figure 8. Clamp Brackets and rigging clamps
A
B
C
A
C
C
B
C
A
B
Figure 9. End channels and locking pins
