German Light Products®
Fusion FS 16Z User Manual Rev. 20240625-01 21
Vertical suspension from a rigging structure
You can install the FS 16Z hanging vertically downwards from a rigging structure if you
use the FS 16Z Hanging Adaptor (optional accessory), which fixes into the locking
channels at the ends of the fixture.
Using the end channels and locking pins, you can suspend FS 16Z fixtures from each
other in an interconnected vertical chain to give an unbroken line of pixels.
For hanging one fixture or a chain of two fixtures, you may use rigging clamps.
Otherwise you should use a pair of M10 or M12 rigging eyelets with suitably rated
cables, to hang up to six fixtures. This allows for the higher loading and gives some
flexibility for movement of the fixture column, which would damage or break rigging
clamps.

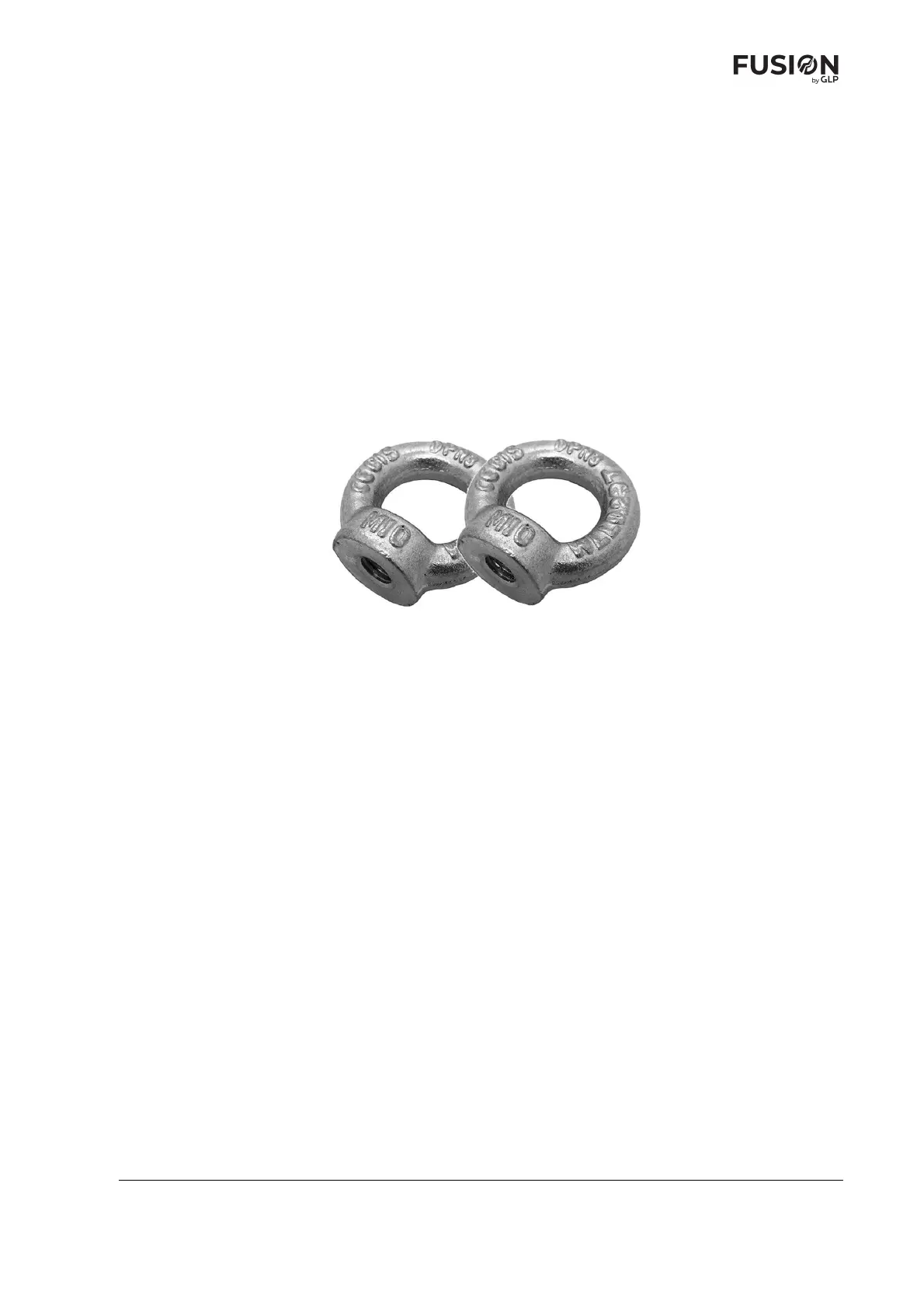

Figure 10. M10 rigging eyelets
Please see the next section ’Suspending multiple fixtures vertically’ and refer to the
safety information below.
