INSTALL CABINET TO GLADIATOR
®
GEARTRACK
®
CHANNEL

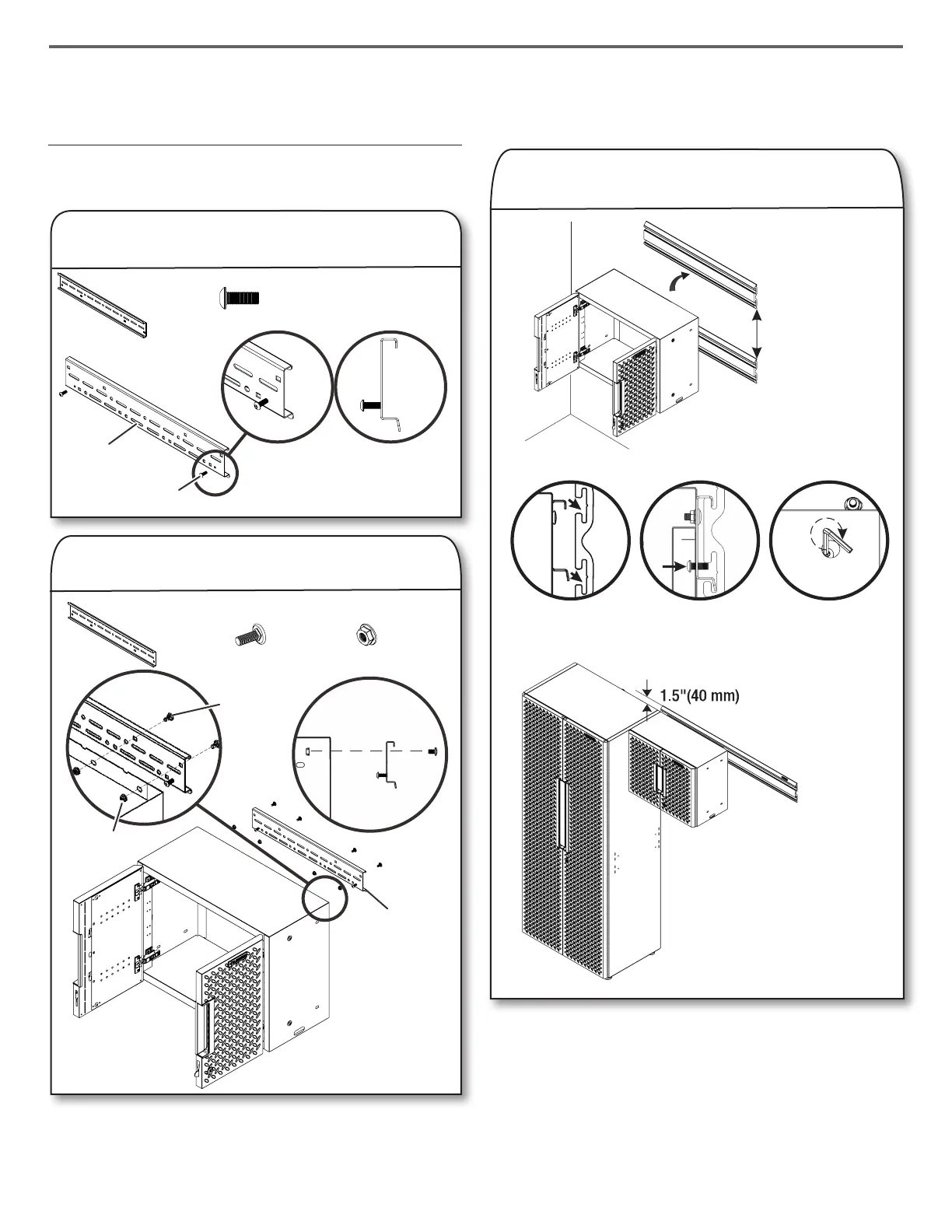

Install the 24" Wall Cabinet
NOTE: Gladiator
®
GearTrack
®
channels sold separately.
1. Attach two M6 x 16 hex socket head
screws to the bracket as shown.
P6
X 1
F1
X 2
P6
F1
2. Attach the bracket to the wall cabinet’s
back top.
P6
X 1
F5
X 4
F3
X 4
P6
F3
F5
■ Attach the bracket to the wall cabinet’s back top with four M6
round head square neck bolts (F5) and four M6 ange nuts
(F3).
3. Hang the wall cabinet onto the GearTrack
®
channels.
The GearTrack
®
channels should
be installed with
the spacing as
shown.
Wall
Tighten the M6 x 16 hex
socket head screws from the
inside of the wall cabinet
■ Make sure the bracket is fully engaged in the wall slots as
shown. Tighten the pre-attached M6 x 16 hex socket head
screws fully into the bracket and make sure they go into the
wall slots.
NOTE: If installing the wall cabinet on GearTrack
®
channels,
a second channel must be installed 6"(15.24cm) below the
bottom of the supporting channel so the cabinet will hang
level.
NOTE: For installation of the Gladiator
®
GearTrack
®
channels,
please refer to the manual instructions included with the
Gladiator
®
GearTrack
®
channels.
One bracket
required as
shown
6"
(15.24 cm)
Attach the GearTrack
®
Channel
or GearWall
®
Panel to the drywall
such that its top edge is 40 mm
above the top surface of the tall
cabinet.
Mount the wall cabinet onto the
geartrack or gearwall. And adjust
the feet of the tall cabinet as
required to ush the tops of both
tall and wall cabinets.
