14

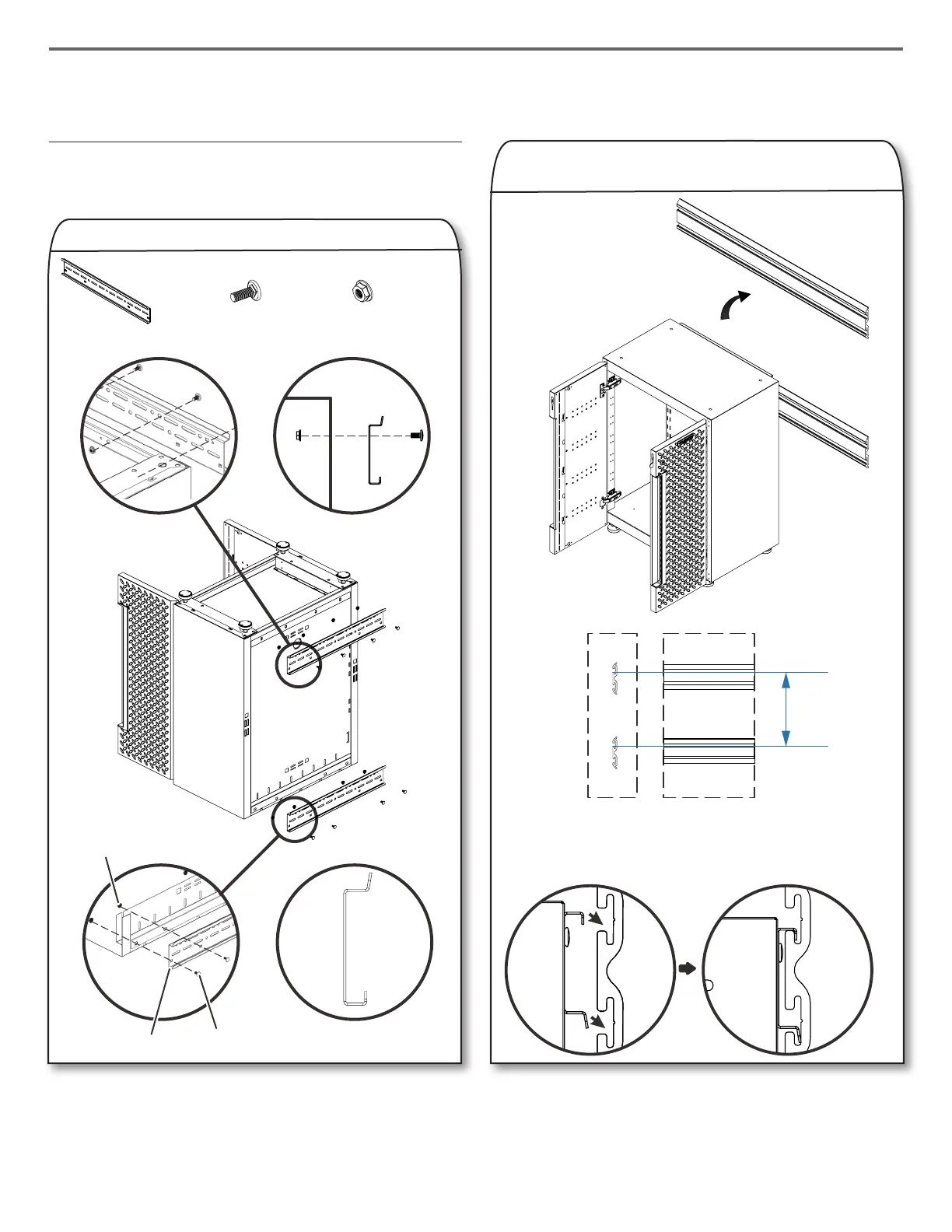

INSTALL CABINET TO GLADIATOR
®
GEARTRACK
®
CHANNEL
Install the 24" 2-door Base Cabinet
NOTE: Gladiator
®
Flex Brackets are sold individually and
Gladiator
®
GearTrack
®
channels are sold separately.
1. Install the brackets to the cabinet.
P6
X 2
F5
X 8
F3
X 8
P6
F5
F3
■ Temporarily turn the base cabinet upside down as shown.
■ Attach the brackets to the back of the base cabinet as shown
with eight M6 round head square neck bolts (F5) and eight M6
ange nuts (F3).
2. Hang the base cabinet onto the
GearTrack
®
channels.
27"
The GearTrack
®
channels should be installed
with the spacing as shown.
■ Hang the base cabinet onto the GearTrack
®
channels. Make
sure the two brackets are fully engaged in the slots as shown.
NOTE: For installation of the Gladiator
®
GearTrack
®
channels,
please refer to the manual instructions included with the
Gladiator
®
GearTrack
®
channels.
Two brackets
required as
shown
27"
( 68.58 cm)
