INSTALL CABINET TO GLADIATOR
®
GEARTRACK
®
CHANNEL

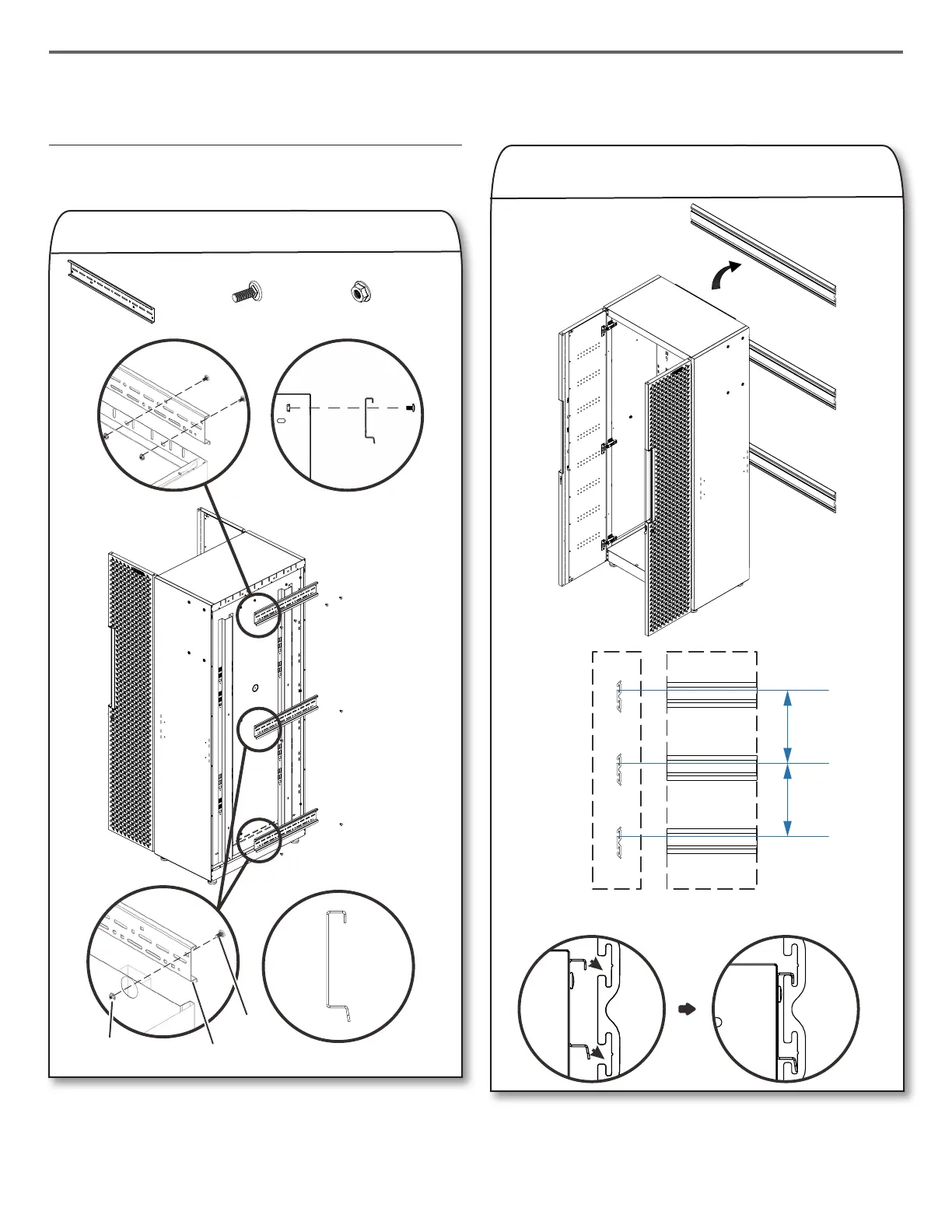

Install the 30" Tall Cabinet
NOTE: Gladiator
®
Flex Brackets are sold individually and
Gladiator
®
GearTrack
®
channels are sold separately.
1. Install the brackets to the tall cabinet.
P6
X 3
F5
X 8
F3
X 8
P6
F5
F3
■ Attach the top bracket to the tall cabinet’s back top with four
M6 round head square neck bolts (F5) and four M6 ange
nuts (F3).
■ Attach the center and bottom brackets to the tall cabinet’s
back respectively with two M6 round head square neck bolts
(F5) and two M6 ange nuts (F3).
2. Hang the tall cabinet onto the
GearTrack
®
channels.
30"
30"
Orientation of the wall bracket
during assembly
The GearTrack
®
channels should be installed
with the spacing as shown.
■ Make sure all three brackets are fully engaged in the slots as
shown.
NOTE: For installation of the Gladiator
®
GearTrack
®
channels,
please refer to the manual instructions included with the
Gladiator
®
GearTrack
®
channels.
Three brackets
required as
shown
30"
(76.2 cm)
30"
(76.2 cm)
