8
2.03.1 Electrical Connections - continued
Installation Free Standing Ventless Hood
FSH-2 & FSH-2A-99

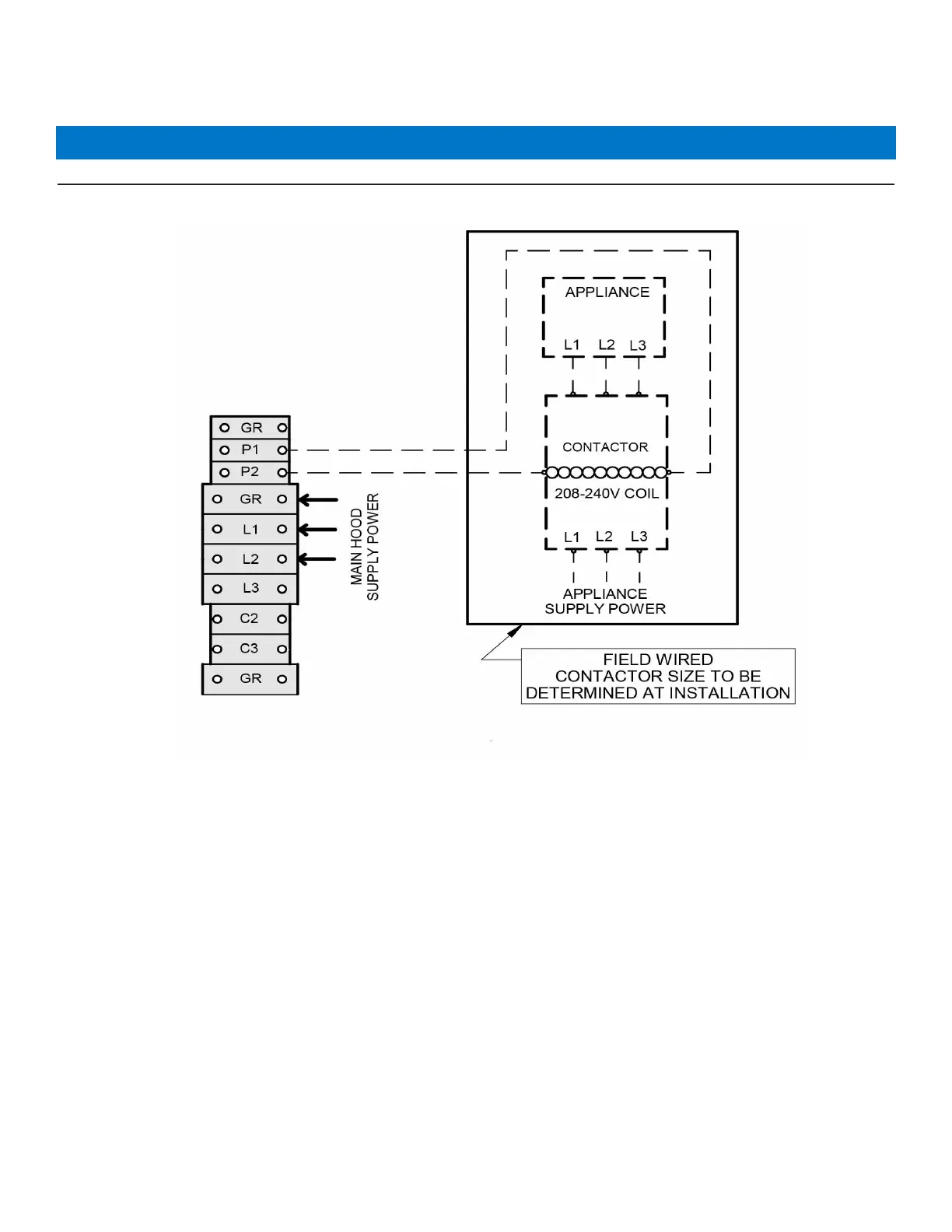

Figure 2.03.1‐B: Model FSH‐2, 1‐Ph Hood ... Separate external appliance interlock relay
1. A 1phase FSH‐2 Hood requires a separate, field installed, interlocking circuit with an appropriately sized contactor,
connected as shown by this diagram. Customer supplied.
2. Remove upper rear panel to access terminal blocks for coil control wiring (P1, P2). Attach appropriate conduit at
cutout in bracket & route control wiring to the customer supplied appliance interlock relay enclosure. Allow
enough conduit and wire so the hood can be accessed for cleaning and servicing.
3. Make appropriate connections for appliance power as indicated by diagram.
4. Reinstall hood back panel.
