2.03 Electrical Specifications (Hood Only)
Installation
2.03.1 Electrical Connections
• Food service equipment must be properly grounded in accordance with local code, or in the absence of local code,
with the National Electrical Code, ANSI/NFPA 70. Improper grounding may result in electrical shock to users. Check
local electrical code to ensure proper grounding.
• Consult a certified electrician, or other qualified service technician, to confirm that the available electrical circuit is of
sufficient rating to power the hood & cooking appliance load.
• I
mproper installation, adjustment, alteration, service & maintenance could result in serious injury, even death,
equipment or property damage and could void the factory warranty.
Hood Electrical Requirements (Hood Only)
Unit Voltage Hz Phase Amps Breaker
FSH2 208240 60 1 5 10
FSH2A99 208240 60 1 5 10
Actual required breaker size depends on hood configuration and the electrical load of any appliance when connected
through the hood circuit. Breaker size shown above applies for a separate hood power supply ONLY.

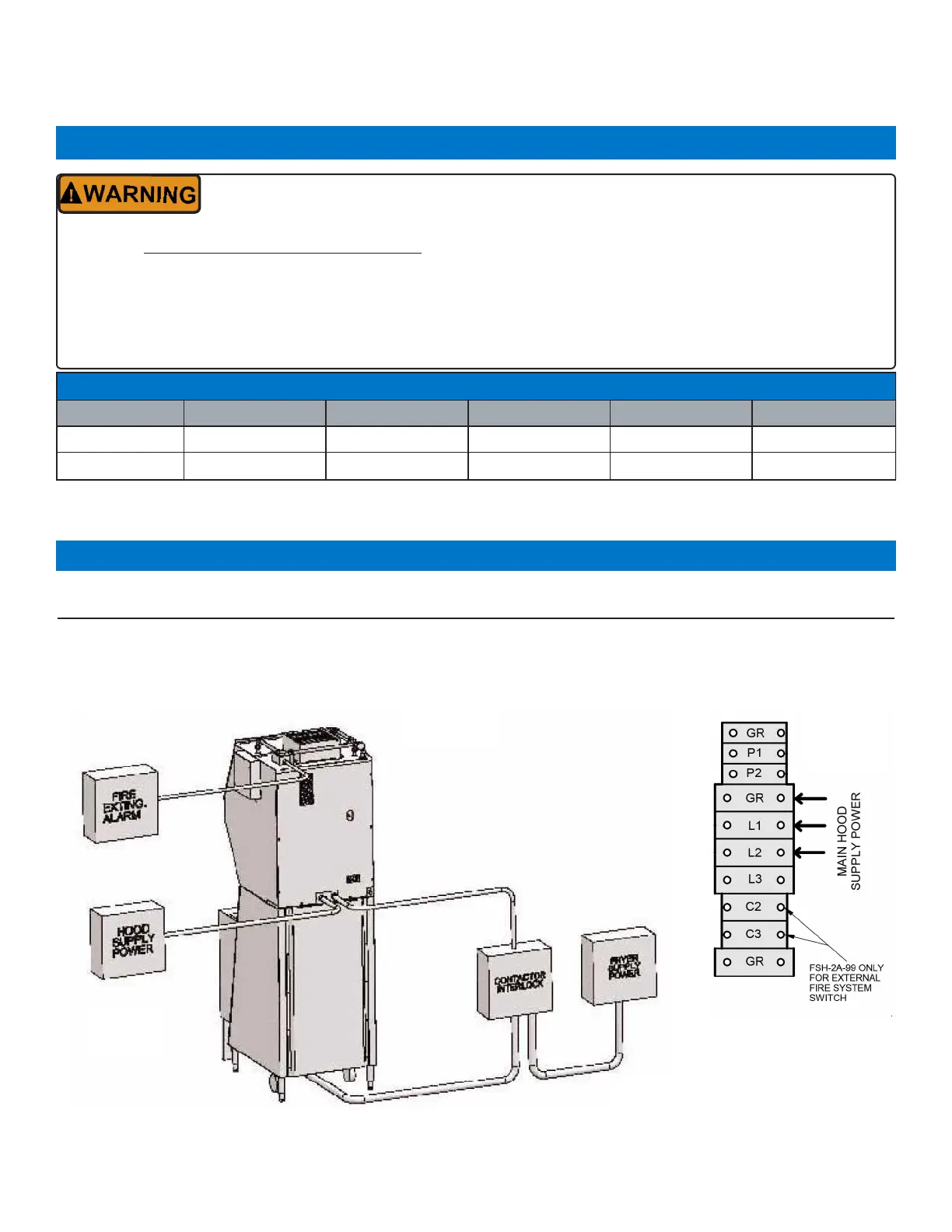

Figure 2.03.1‐A: Model FSH‐2, 1‐Ph Hood ... Appliance Powered Separately (208‐240‐480V/1 ‐ 3‐Ph) through an
external appliance interlock relay
Hood Power
1Ph
208240V
Power
connection
to appliance
Appliance
Power Supply
1 or 3Ph
208240480V
Fire alarm
tieIn box
Customer
Supplied
Coil control wire
connection to
Interlock Relay
Coil control
wire for
Interlock Relay
Free Standing Ventless Hood
FSH-2 & FSH-2A-99
