2.03.1 Electrical Connections - continued
Free Standing Ventless Hood
FSH-2 & FSH-2A-99
Installation

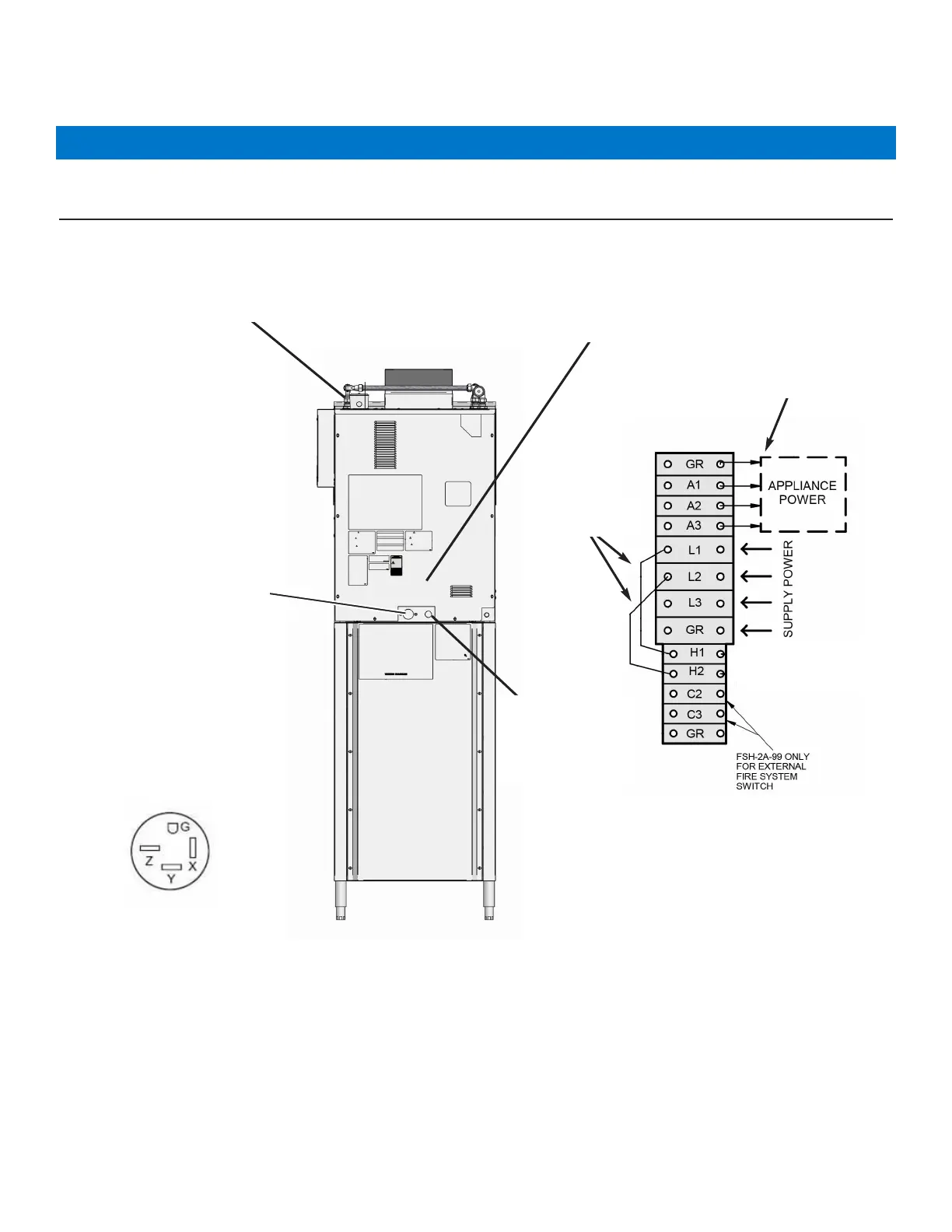

Figure 2.03.1‐C: Model FSH‐2, 3‐Ph Hood & Appliance on Same Power Supply, 208‐240V ... Appliance
Receptacle Option if equipped.
Appliance power relay is
internal to hood. If
equipped, an OPTIONAL
builtin power receptacle
for appliance power cord is
located on the back wall of
Hood base.
50A max. appliance load.
Fire alarm tieIn box
Supply Power IN
208240V/3Ph
DO NOT remove
jumper wires
Terminal blocks located in
side upper cabinet.
Appliance Power
OUT if no
Receptacle
208240V/3Ph
Not used
w/Receptacle
Option
