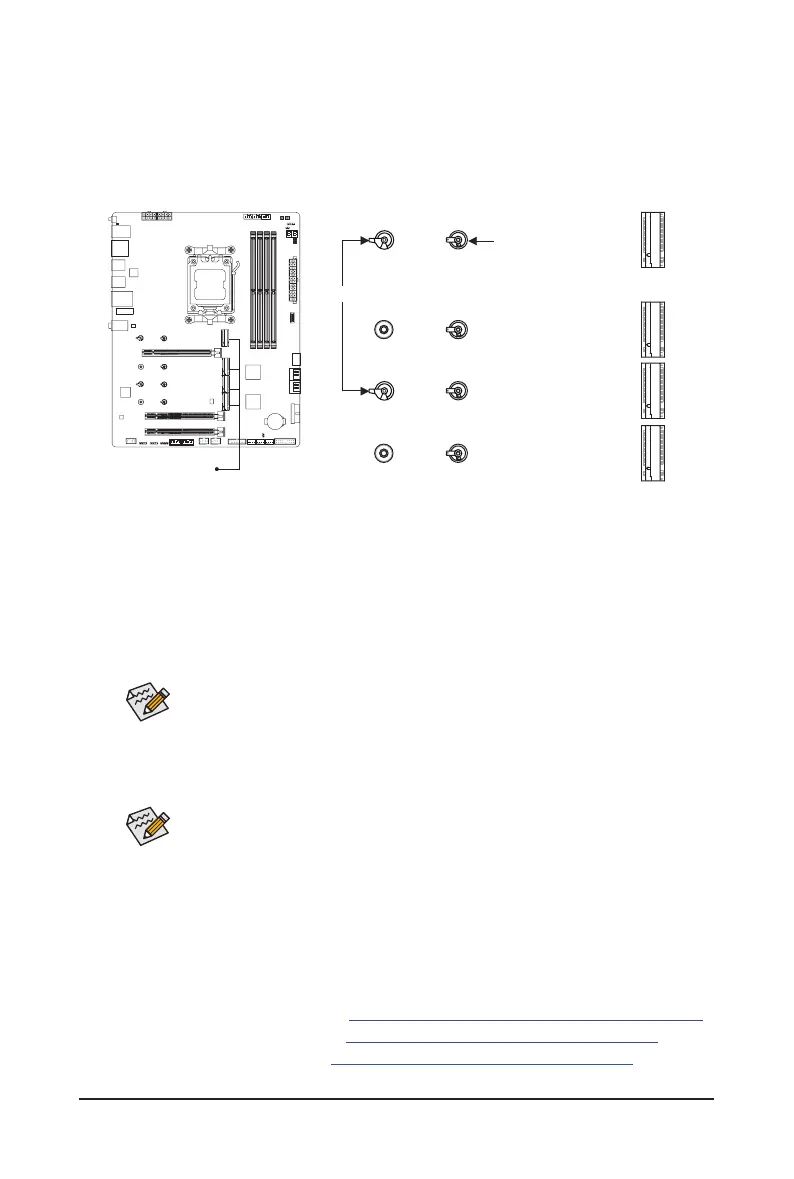

10) M2A_CPU/M2C_CPU/M2D_SB/M2B_CPU (M.2 Socket 3 Connectors)
There are two types of M.2 SSDs: M.2 SATA SSDs and M.2 PCIe SSDs. This motherboard only supports
M.2 PCIe SSDs. Please note that an M.2 PCIe SSD cannot be used to create a RAID set with a SATA
hard drive. Please navigate to the "Conguring a RAID Set" page of GIGABYTE's website for instructions
on conguring a RAID array.
M2A_CPU
M2C_CPU
M2D_SB
M2B_CPU
M2A_CPU
F_USB30
F_U
B_
F_ F_
_
B
BS_
B
SB_
B
_S
S_
_
B
_U
_
B
S
123
123
123
123
1
1
1
1
BSS
S
_S
SSU
1 2 3
S3
BSSS
U
__ 3
F_USB3F
S _
S _
S _
SF
B_
B_
F
_0
S
S
_0F
_F
_
_
__B
U
S _S
_
SF_
B
USB0_B
B_
B_
F_USB3
F_USB303
_
_3U
S_
_S
SS_F
_
_
F
_SB
F_
F_
_
80110
M.2 EZ-Latch Click
M.2 EZ-Latch Plus
Step 2:
Remove the protective lm from the thermal pad (only the M2A_CPU connector has the thermal pad)
on the M.2 connector. Insert the M.2 SSD into the M.2 connector at an angle.
If you want install an M.2 SSD in the 110mm hole, remove the EZ-Latch Plus clip from the
80mm hole rst.
Follow the steps below to correctly install an M.2 SSD in the M.2 connector.
• M2A_CPU/M2D_SB:
Step 1:
Turn the M.2 EZ-Latch Click clip clockwise and remove the motherboard heatsink.
& Please visit GIGABYTE's website for details on using M.2 EZ-Latch Click/M.2 EZ-Latch Plus.
M.2 SSD installation with M.2 EZ-Latch Click: https://www.gigabyte.com/WebPage/1048/M.2-EZ-Latch-Click.html
M.2 SSD installation with M.2 EZ-Latch Plus: https://www.gigabyte.com/WebPage/920/M2-latchplus.html
M.2 SSD removal with M.2 EZ-Latch Plus: https://www.gigabyte.com/WebPage/921/removeM2.html
* Motherboard heatsink design may vary by model.
If you wish to replace the thermal pad, it is recommended to use one with a thickness of 1.25mm.
Step 3:
Press down on the front end of the M.2 SSD and make sure the M.2 SSD is secured by the clip. Remove
the protective lm from the bottom of the motherboard heatsink, and nally, turn the M.2 EZ-Latch Click
clip clockwise and then install the heatsink back in place.
