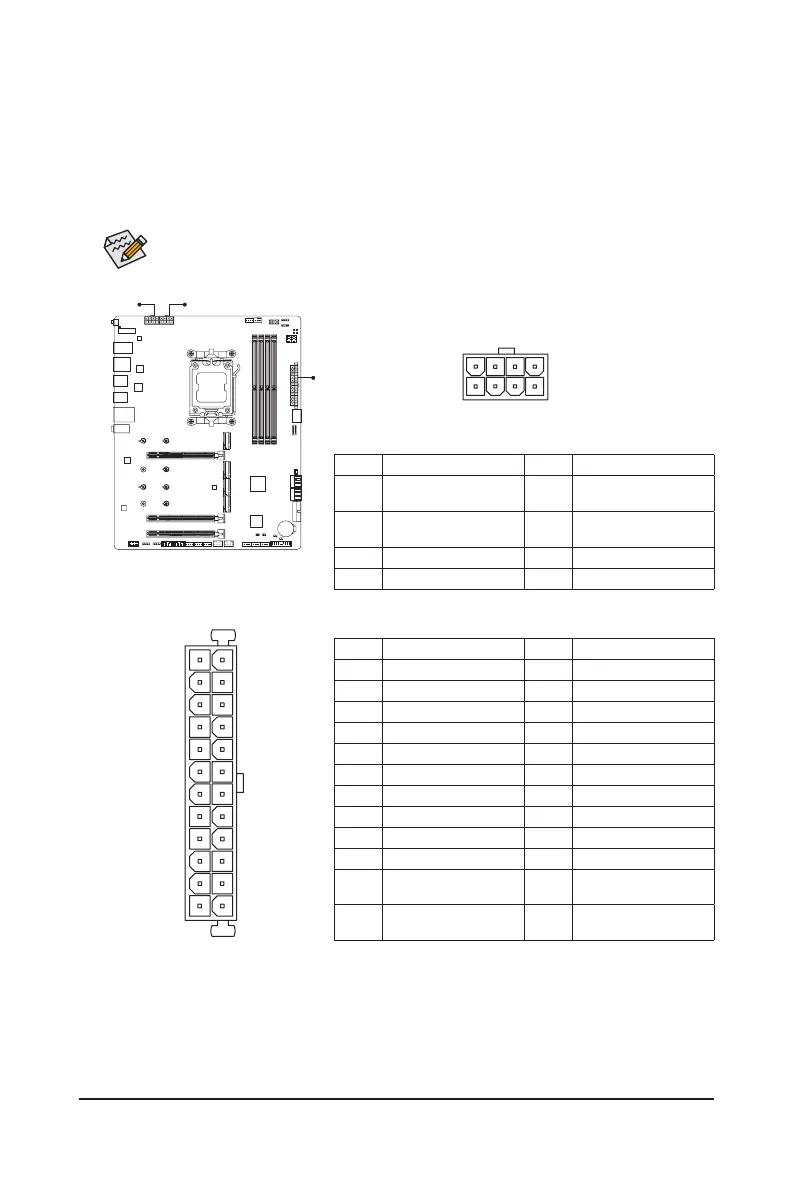

1/2) ATX_12V/ATX_12V1/ATX (2x4 12V Power Connectors and 2x12 Main Power Connector)

With the use of the power connector, the power supply can supply enough stable power to all the components

on the motherboard. Before connecting the power connector, rst make sure the power supply is turned

off and all devices are properly installed. The power connector possesses a foolproof design. Connect the

power supply cable to the power connector in the correct orientation.

The 12V power connector mainly supplies power to the CPU. If the 12V power connector is not connected,

the computer will not start.

To meet expansion requirements, it is recommended that a power supply that can withstand high

power consumption be used (500W or greater). If a power supply is used that does not provide the

required power, the result can lead to an unstable or unbootable system.

ATX_12V/ATX_12V1

ATX:

Pin No. Denition Pin No. Denition

1 3.3V 13 3.3V

2 3.3V 14 -12V

3 GND 15 GND

4 +5V 16 PS_ON (soft On/Off)

5 GND 17 GND

6 +5V 18 GND

7 GND 19 GND

8 Power Good 20 NC

9 5VSB (stand by +5V) 21 +5V

10 +12V 22 +5V

11 +12V (Only for 2x12-pin

ATX)

23 +5V (Only for 2x12-pin

ATX)

12 3.3V (Only for 2x12-pin

ATX)

24 GND (Only for 2x12-pin

ATX)

DEBUG

PORT

G.QBOFM

DEBUG

PORT

G.QBOFM

131

2412

ATX

ATX_12V/ATX_12V1:

Pin No. Denition Pin No. Denition

1 GND (Only for 2x4-pin

12V)

5 +12V (Only for 2x4-pin

12V)

2 GND (Only for 2x4-pin

12V)

6 +12V (Only for 2x4-pin

12V)

3 GND 7 +12V

4 GND 8 +12V

ATX_12V1ATX_12V
