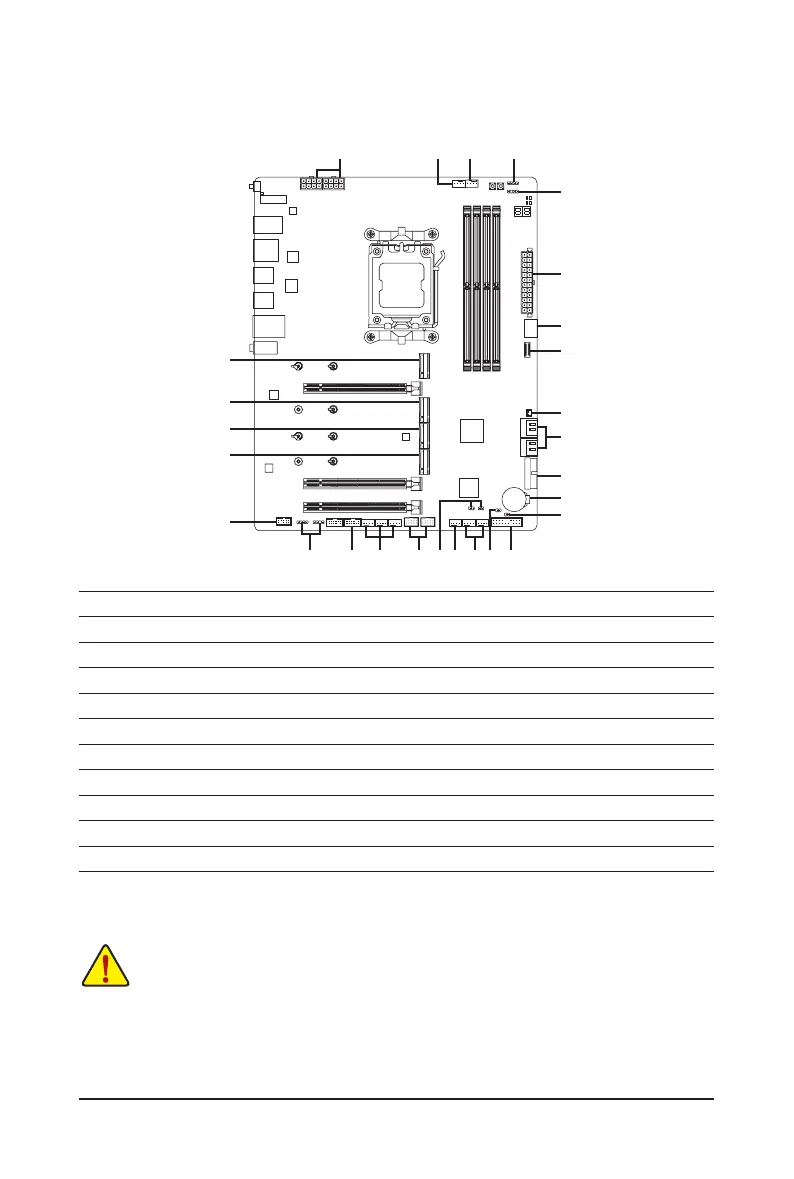

2-8 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
1) ATX_12V/ATX_12V1
2) ATX
3) CPU_FAN
4) SYS_FAN1/2/3/4
5) FAN5/6_PUMP
6) CPU_OPT
7) EC_TEMP1/EC_TEMP2
8) LED_C
9) ARGB_V2_1/ARGB_V2_2/ARGB_V2_3
10) SATA3 0/1/2/3
11)
M2A_CPU/M2D_SB/M2C_CPU/M2B_CPU
12)
F_PANEL
13) F_AUDIO
14) FU3C_20G
15) FU3A_5G
16) FUSB_1/FUSB_2
17) F_HDMI
18) SPI_TPM
19) DB_SENSE
20) RST
21) CLR_CMOS
22) BAT
