- 22 -
Hardware Installation
PinNo. Denition
1 Clock
2 Data
3 GND
4 VCC

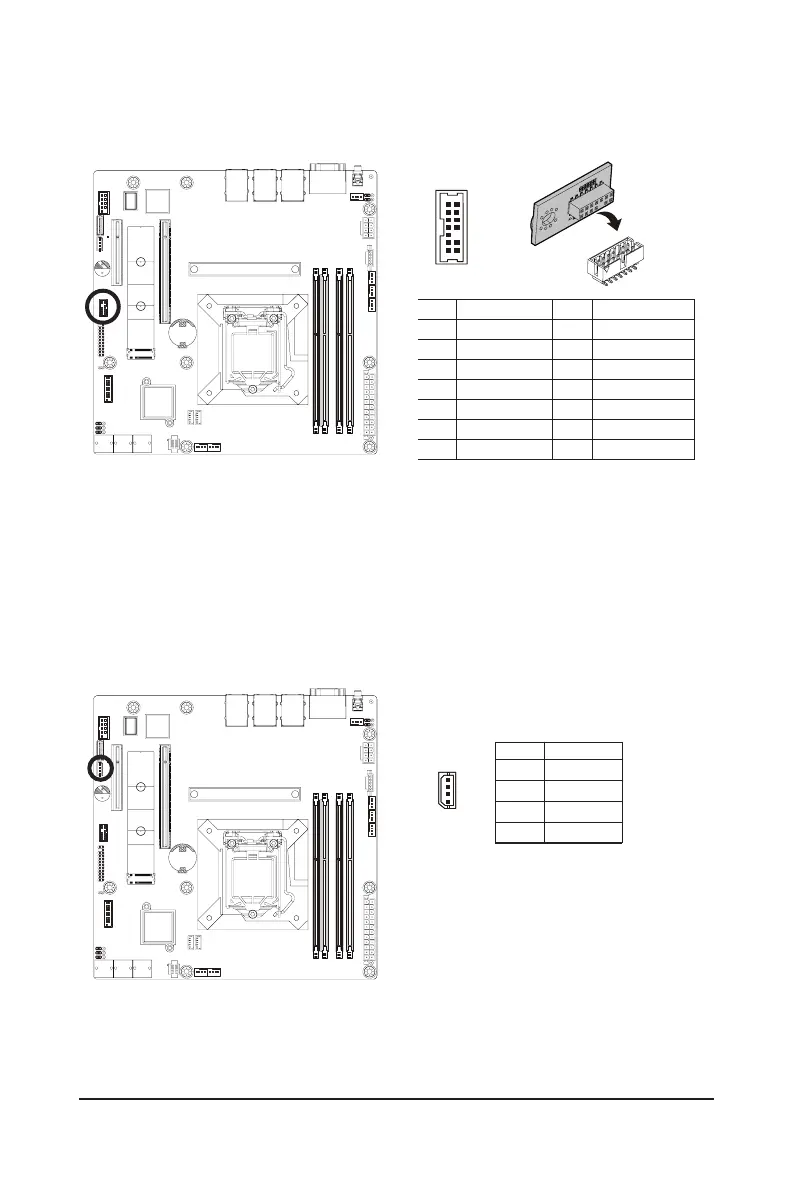

17) IPMB (Intelligent Platform Management Bus) Connector
The Intelligent Platform Management Bus Communications Protocol defines a byte-level transport for
transferringIntelligentPlatformManagementInterfaceSpecication(IPMI)messagesbetweenintelligentI2C
devices.
4
1
16) TPM (Trusted Platform Module Connector)
Trusted Platform Module (TPM) is an international standard for a secure cryptoprocessor, a dedicated
microcontroller designed to secure hardware through integrated cryptographic keys.
Pin No. Denition Pin No. Denition
1 SPI_TPM_CLK 8 NC
2 P_3V3_AUX 9 NC
3 RST_PLTRST 10 Key
4 VCC3 11 NC
5 SPI_TPM_MISO 12 GND
6 IRQ_TPM_SPI 13 SPI_CS_TPM
7 SPI_TPM_MOSI 14 GND
12
13 14
