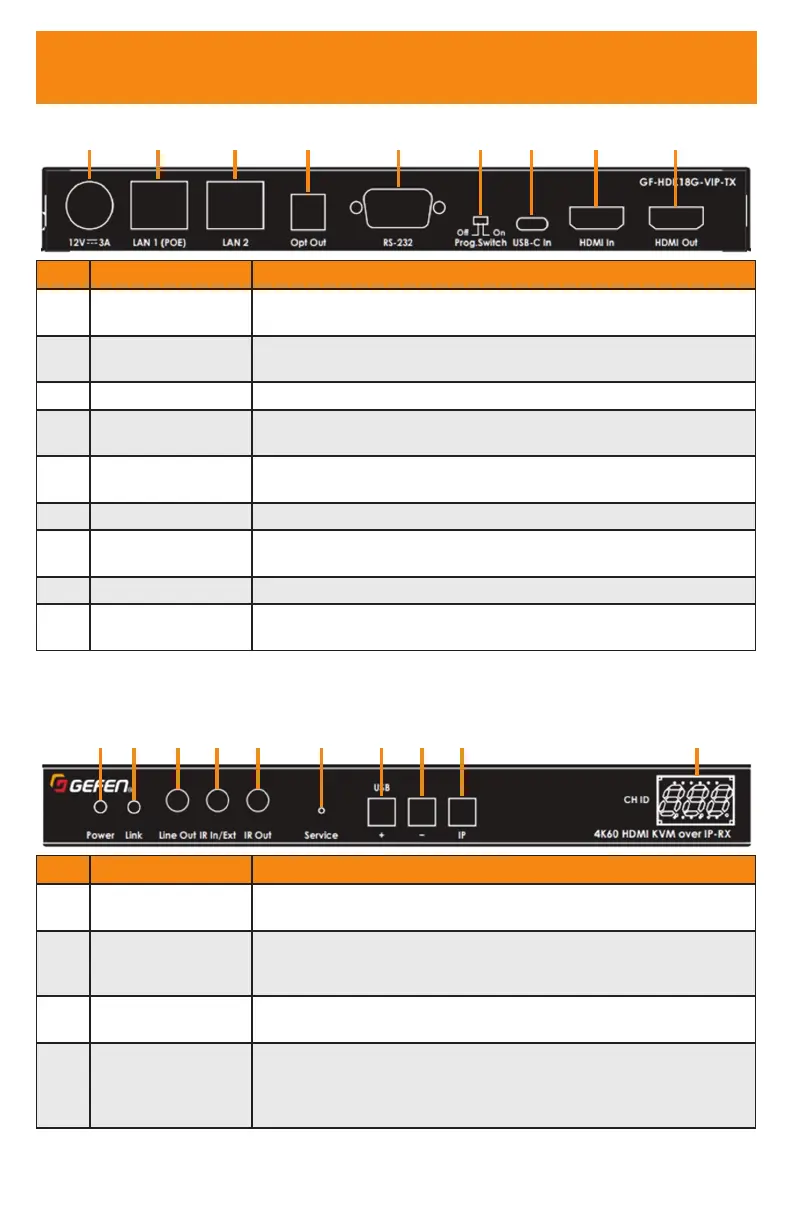

9
13 14 15 16 17 18 19 20 21
ID Name Description
13 Power Input Connect the included 12V DC 3-pin DIN power supply to this power
receptacle.
14 LAN 1 (PoE) Connects the Sender unit to a PoE-capable switch (or directly to the
Receiver unit) using shielded CAT-5e (or better) cable.
15 LAN 2 This port is used as an Ethernet Hub or for daisy chaining units.
16 Opt Out Connect a Digital TOSLINK cable from this port to an audio
amplier (Audio Return Path).
17 RS-232 Connect an RS-232 cable from this port to an RS-232 controller.
See Using RS-232 (page 38) for more information.
18 Prog. Switch For factory use only. This switch must stay in the Off position.
19 USB-C In Connect a USB-C cable from the computer or mobile device to this
USB port.
20 HDMI In Connect an HDMI cable from this connector to the 4K UHD source.
21 HDMI Out Connect an HDMI cable from this connector to a 4K UHD display
for local monitoring.
Receiver Unit
1 2 3 4 5 6 7 8 9 10
ID Name Description
1 Power This LED glows solid blue when the unit is Powered ON via AC
outlet or PoE. See “LED Status” on page 22 for more information.
2 Link This LED glows solid green when the Sender unit and Receiver unit
are connected and passing video. See “LED Status” on page 22
for more information.
3 Line Out Connect a 3.5mm mini-stereo cable from the Line Out port to
headpones, powered speakers, or an external amp.
4 IR In/Ext Connect an IR Extender (Gefen part no.EXT-RMT-EXTIRN) to this
3.5mm mini-stereo port. Alternatively, connect a 3.5mm mini-stereo
connector from this port to the output of an automation system with
an electrical IR output.
Physical Features
