Using a Direct Connection
By default, the 4K60 HDMI & USB-C KVM over IP is shipped in Auto IP mode. Auto IP
mode is used for directly connecting Sender and Receiver units to one another. In Auto
IP mode each Sender and Receiver unit assigns itself a unique IP address within the
range of 169.254.x.x. To congure the units to work over a LAN, we must access the
Web interface of the Sender and Receiver unit on a computer. Then, we can change the
network settings.
1. Connect a high quality HDMI or USB-C cable to connect a 4K Ultra HD source to
the HDMI In port or USB-C In port on the rear panel of the Sender (Tx) unit. It is
recommended to use Gefen’s HDMI 2.1 cables to ensure performance.
2. Connect an HDMI cable from the 4K UHD display to the HDMI Out port on the Re-
ceiver unit.
3. Connect a shielded CAT-5e (or better) cable from the LAN1 (PoE) port on the Sender
unit to the LAN1 (PoE) port on the Receiver unit. While any of the two ports on the
Receiver can beused, we recommend using LAN1 (PoE) for the sake of consistency.
4. Connect another shielded CAT-5e (or better) cable from one of the LAN ports on the
Receiver unit to a PC.

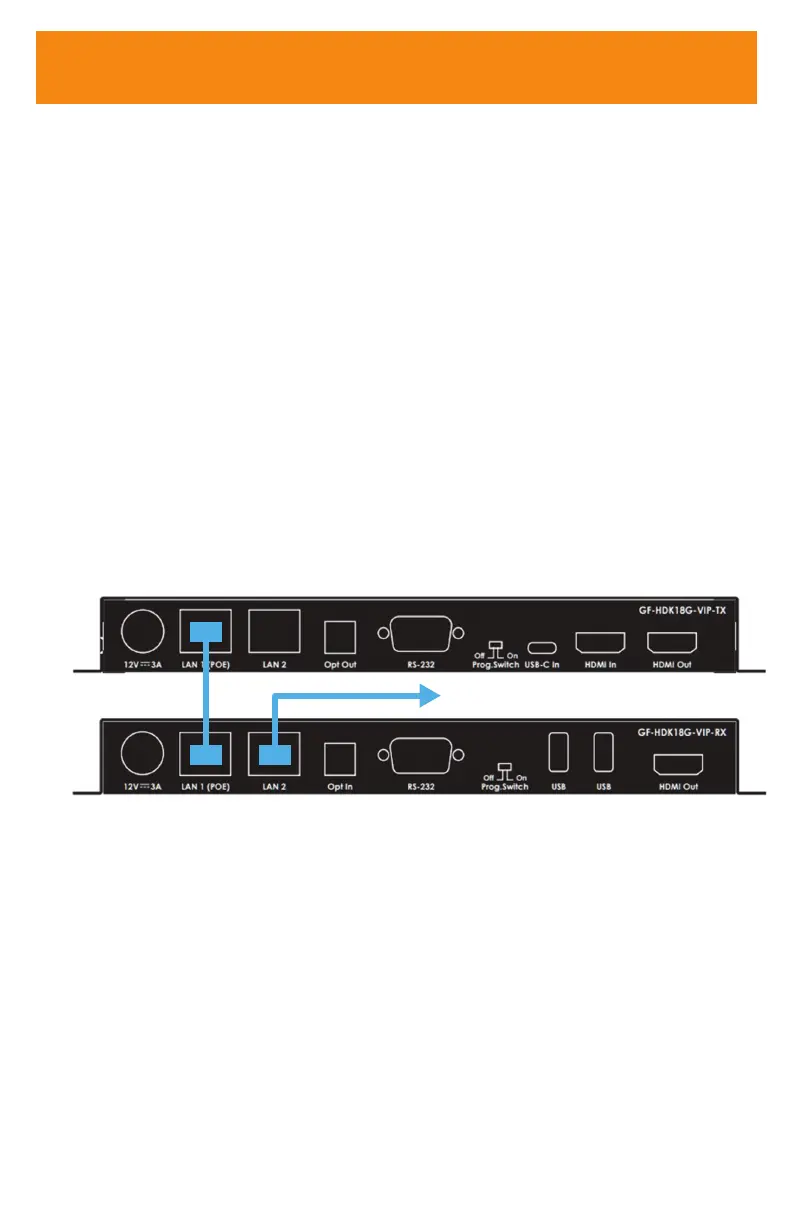

Sender unit
Receiver unit
Connect to PC
5. Connect the included 12V DC locking power supplies to both the Sender unit and
Receiver unit. Do not overtighten the locking connectors. Connect the included AC
power cords from the power supplies to available electrical outlets.
