20
What features are available via the RS-232 serial communications port?
The 16x16 DVI Matrix can accept commands through the RS-232 serial
communications port located on the rear panel. The current RS-232 control
features are:
• Switching/routing of inputs to outputs without the IR remote control.
• Managing the EDID bank and EDID that is loaded into the LOCAL EDID.
• Upload new EDID’s to the EDID bank or directly to the LOCAL EDID
location.
• Manage IP settings.
How do I use these features?
These features were initially intended for utilization by custom installers in
automated setups. However, these features can be tested and used by using any
Windows PC with a terminal program.

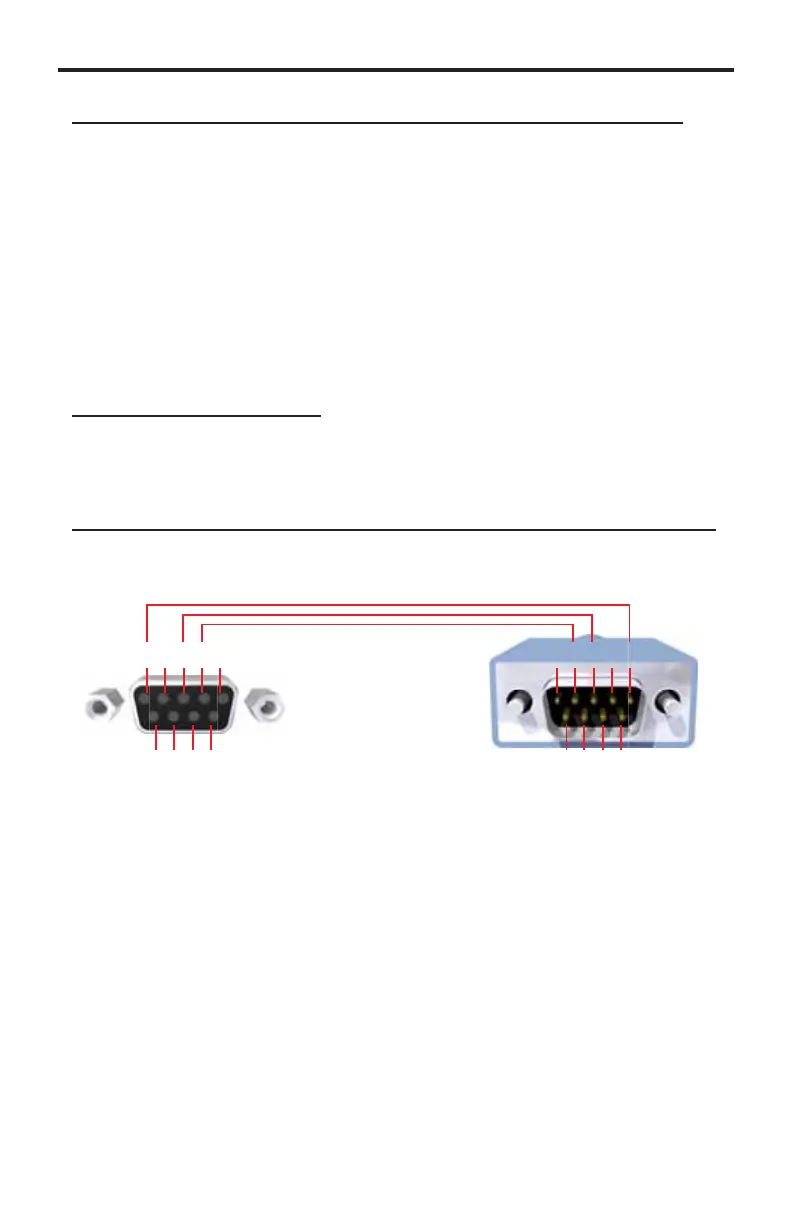

What pins are used for communication with the 16x16 DVI Matrix Switcher?
Only pins 2 (Receive), 3 (Transmit), and 5 (Ground) are used for communication.
A null-modem adapter should not be used with this product.
54321
9876
12345
6789
Only Pins 2 (RX), 3 (TX), and 5 (Ground) are used on the RS-232 serial interface
RS-232 Settings
Bits per second ............................................................................................ 19200
Data bits ............................................................................................................... 8
Parity ............................................................................................................. None
Stop bits ................................................................................................................1
Flow Control .................................................................................................. None
RS-232 SERIAL CONTROL INTERFACE
