2. WIRING
2-2
2.2 Transducer Cable
Separate the transducer cable as far as possible from power cables to prevent inter-
ference to the sonar. Keep the transducer cable away from televisions and monitors
to prevent noise in the cable.
Fabricate the cable as shown in the procedure below, then connect it inside the unit
with a WAGO connector.

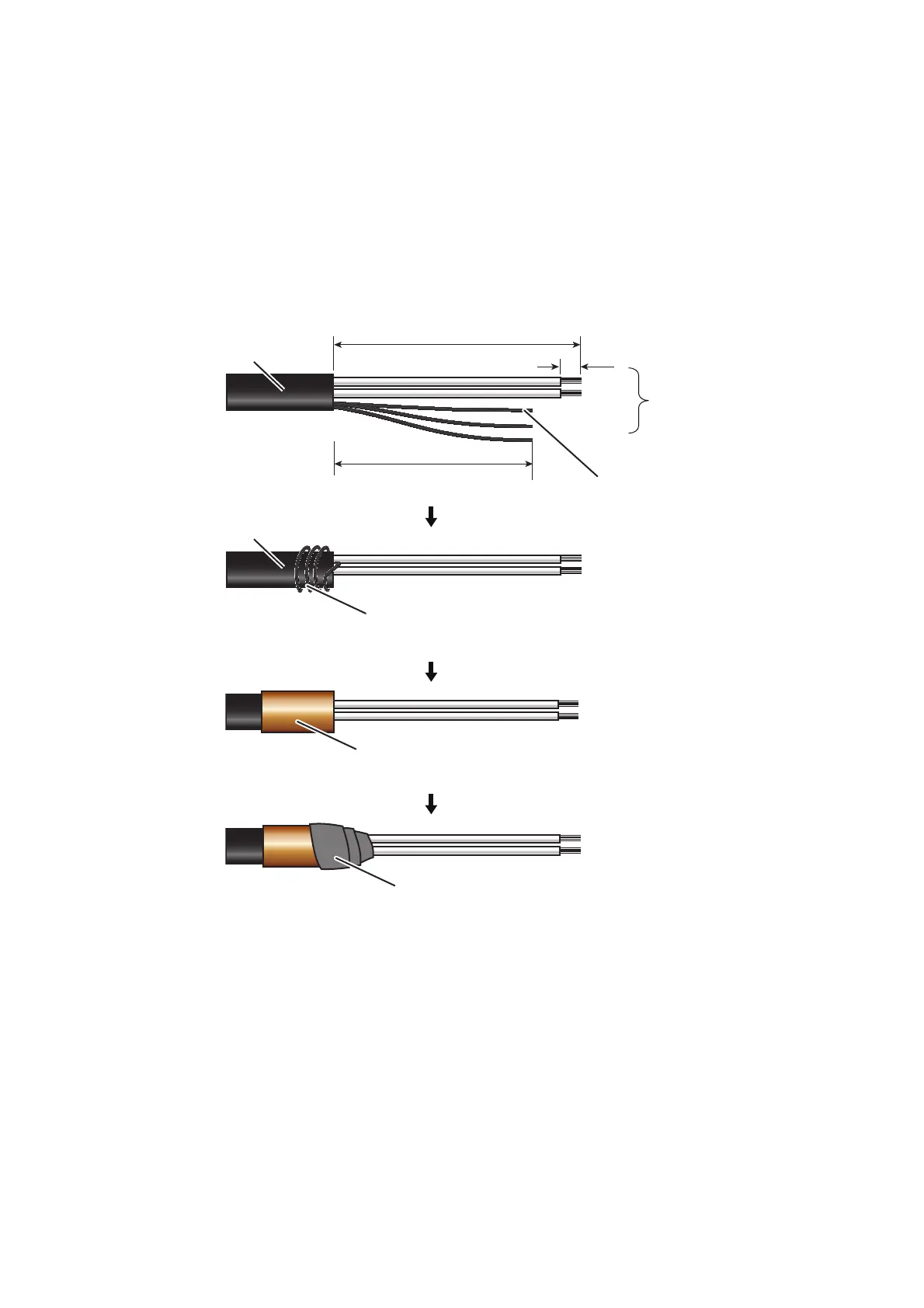

1. Fabricate the cable as shown below.
Note: Keep the recommended lengths to prevent noise in the cable.
2. Remove the outer cover.
3. Unfasten four screws to remove the inner chassis cover.
Unit: mm
Sheath
x9
x9
Shield
Shield
110
6
80
Wrap with vinyl tape (width: 30 mm).
Wrap shield with conductive tape.
Sheath
The cable has one or three shield cores. Wrap the shield(s)
around the sheath.
