2. INTERPRETING THE DISPLAYS
2-7

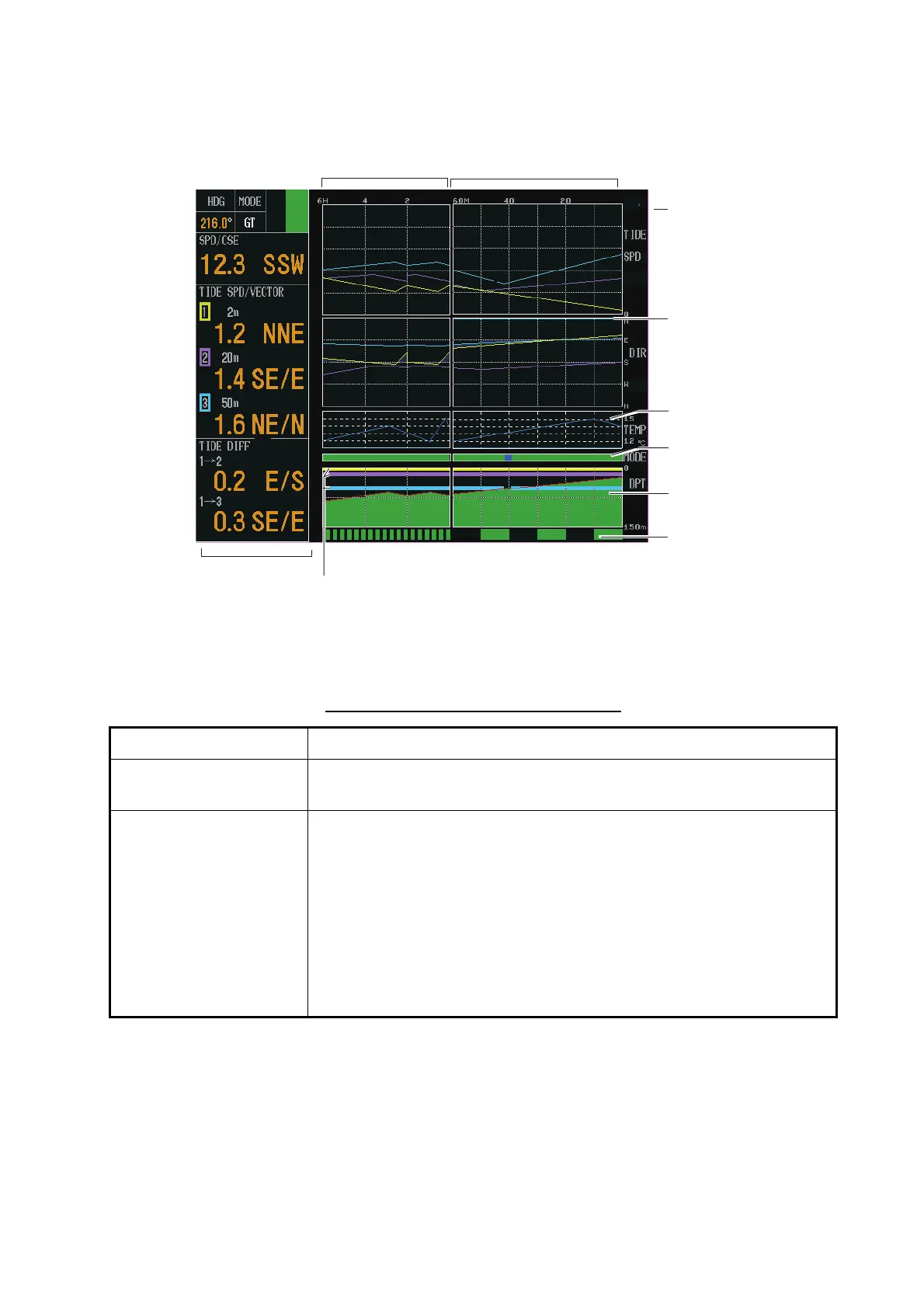

2.3 Graph Display
Graph display
Description of graph display indications
Item Description
Text window The text window may be turned on or off with TEXT in the DISP1 menu.
When the text window is turned off, 12 hours of graph data are shown.
Tide (or tide differential,
speed) graph
You may choose the type of graph to display with MODE in the DISP1
menu.
The maximum tide speed (or ship's speed) range may be chosen with
TIDE RANGE in the DISP1 menu.
Tide direction (or course) may be chosen with TIDE GRAPH in the
DISP1 menu.
For the tide graph, graph lines are displayed in colors: Layer 1, Yellow;
Layer 2, Purple, and Layer 3, Blue.
For the tide differential graph, the tide differential between layers 1 and
2 is shown in purple and that between layers 1 and 3 in light-blue.
0-6 hours
of latest data
0-60 minutes
of latest data
Max. Range of
Tide Speed
(or Course)
Tide Graph
(or Tide Diff
or Ship Speed)
Water Temp. Graph*
Mode Marker
Depth Graph
Trip Distance
Marker
Note: When overlapping occurs,
layer having highest number
has priority.
Depth of
each layer
Text Window
*: Sensor required.
kn
kn
kn
5.0
