2. INTERPRETING THE DISPLAYS
2-8
Mode marker
The mode marker shows by color which tracking mode is in use. This marker has lon-
ger history than the mode marker in the text window, see "Mode marker" on page 2-1.
Depth graph
The depth graph displays depth data in graph form. If, in the water tracking mode, the
depth is greater than the depth range no depth data is displayed. To graph depth from
an external source, set [DEPTH SOURCE] in the [OTHER] sub menu (sub menu in
the installation menu) to [EXTERNAL], see installation manual for details.
Trip distance marker
The trip distance marker shows trip distance in one-mile in-
crements, in green and background color alternately as
shown below.

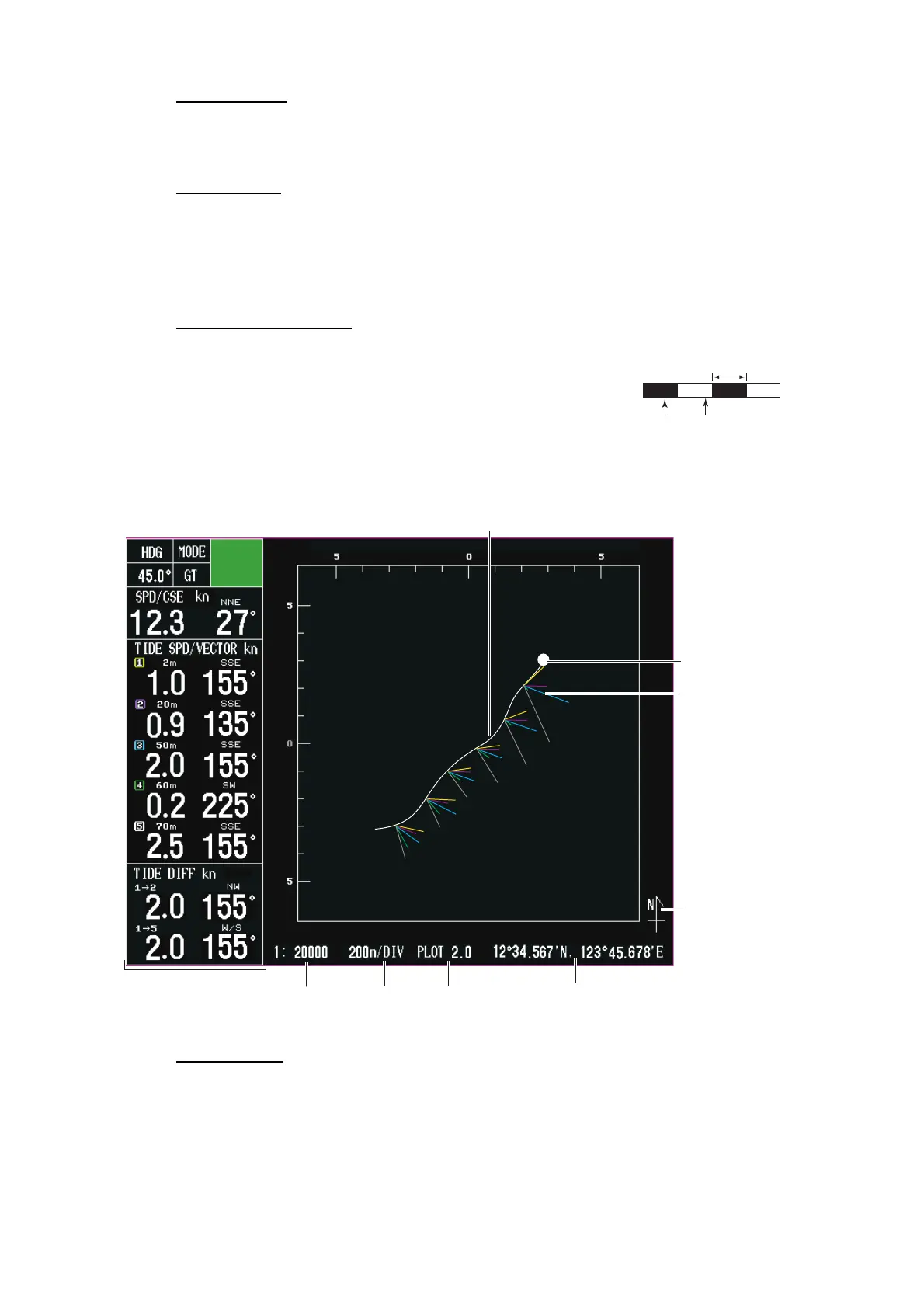

2.4 Course Plot Display
Text window
The contents are same as ones for the tide vector display, see section 2.1. The text
window may be turned on or off with [TEXT WINDOW] in the [DISP 3] sub menu.
When the text window is turned off, the amount of track displayed is greater.
1 mile
Green
Back ground color
Ship’s Track (white)
Own ship position
Tide
Vector
(5 layers)
North Mark
Scale
DIV
Text Window
Tide Display
Interval
Position*
*: Sensor required.
