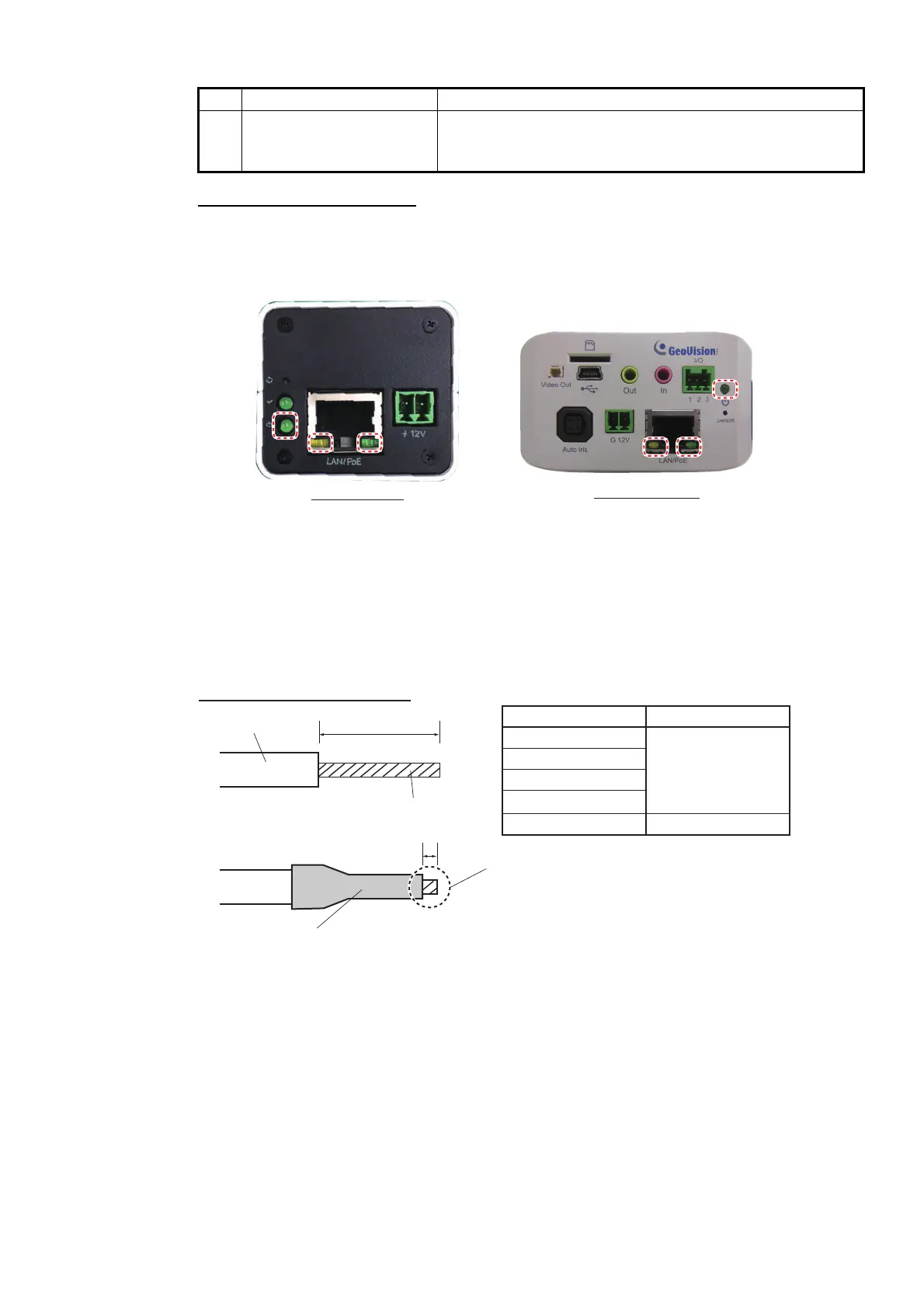

2. INSTALLATION AND INITIAL SETTINGS
2-11
Hiding the LED indicators
If the LED indicators are too bright at night, cover them with vinyl tape. The LEDs
which are active (lit) when the camera is turned on have their locations indicated with
dashed lines in the following figure.
2.2.4 Sensor adapter (option)
Use the ferrule-type terminals (supplied) to connect the cables to the terminals in the
sensor adapters. This connection requires a crimping tool (CRIMPFOX10S, option).
For the relations between the connectors and rod terminals, see page AP-2. Also, the
stickers attached on the reverse side of the covers show the detailed connections.
12 Status Indicator The LED (green) lights when the IP camera works correct-
ly. In the default setting, the status indicator LED stays off
regardless of the IP camera working status.
No. Name Description
GV-EBX2100
GV-BX2700-8F
Rod terminal (ferrule type):
After attaching the rod terminal, use the optional
crimping tool CRIMPFOX 10S to crimp.
L
0.5 to 1 mm
How to attach ferrule-type lug
Core
Vinyl sheath
Rod terminal (ferrule type):
The core must protrude 0.5 to 1 mm
past the rod terminal.
Ferrule-type lug Length of “L”
AI 1.5-6 BK (BLK)
AI 0.34-6 TQ (BLU)
AI 0.75-6 GY (GREY)
AI 1-6 RD (RED)
6 mm
AI 0.14-8 GY(GREY) 8 mm
