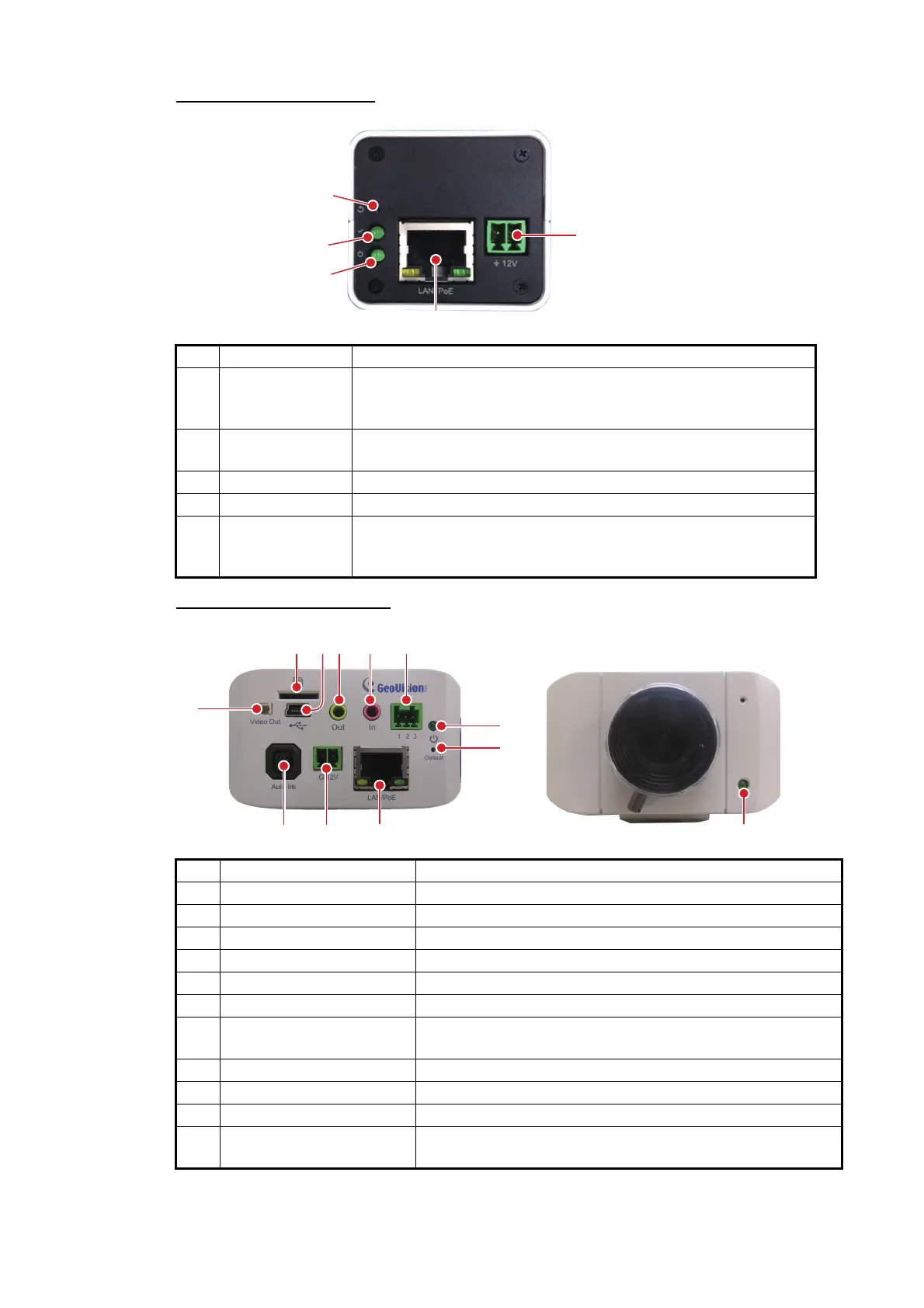

2. INSTALLATION AND INITIAL SETTINGS
2-10
Interface (GV-EBX2100)
Interface (GV-BX2700-8F)
No. Name Description
1 Status Indicator The LED (green) lights when the IP camera works correctly. In
the default setting, the status indicator LED stays off regardless
of the IP camera working status.
2 Power Indicator The LED (green) lights when the power is supplied to the IP
camera.
3 LAN/PoE Connect with the PoE adapter, using the supplied LAN cable.
4 DC IN (12 V) Not used.
5 Reset Button Not used. If you press this button unintentionally, communica-
tion error between the main PC and the IP camera occurs and
the screen is not displayed correctly. Contact your dealer.
No. Name Description
1 Video out Not used.
2 Micro SD card slot Not used.
3 Mini-USB port Not used.
4 Audio out Not used.
5 Audio in Not used.
6 Digital I/O terminal block Not used.
7 Power indicator The LED (green) lights when the power is supplied to the
IP camera.
8 Reset button Restores the IP camera to factory default.
9 Iris cable connector Not used.
10 DC IN (12 V) Not used.
11 LAN/PoE Connect with the PoE adapter, using the supplied LAN ca-
ble.
