1. OPERATION
1-25
5. Click the buttons on the visible matching controller to adjust video image position,
considering the following points.
• The horizon line must be aligned with the horizon on the screen.
• The target shape must be aligned with the actual AIS target. It is recommended
to select an AIS target that is stationary.
• The selective marker for the TT target must be aligned with the actual TT target.
Note: When the IP camera position is offset from the ship’s center, the heading
guide is not aligned with the ship’s bow on the video image, due to the offset ap-
plied.

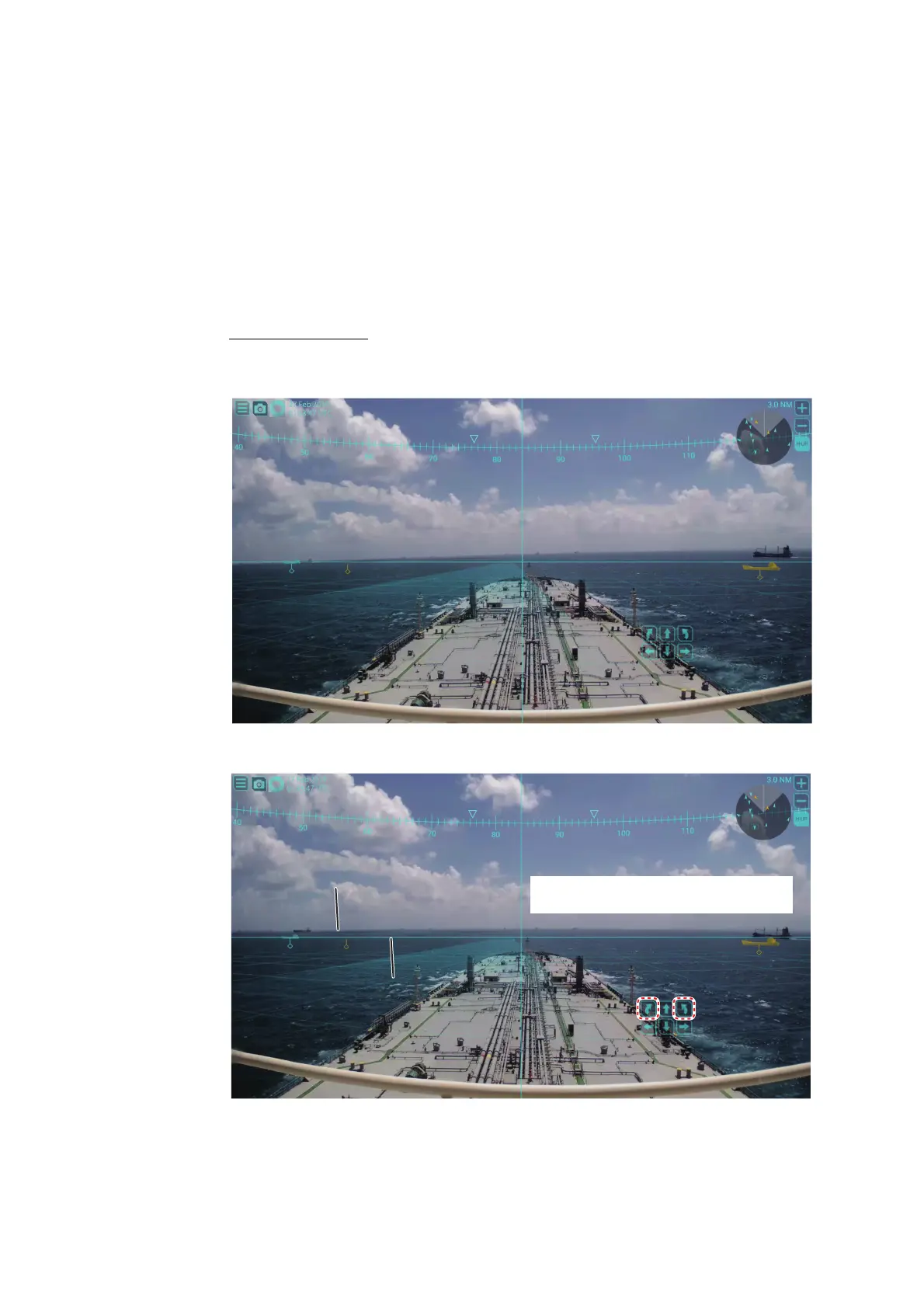

Adjusting example
1 Before adjusting
2 Roll adjusting
Arrange the horizon and horizon line
(AR object) in parallel.
HorizonHorizon
Horizon lineHorizon line
