1. OPERATION
1-24
1.12 How to Select the Camera to Use in the System
Do as follows to select the IP camera to use in the system.
Note: In the default setting, the IP camera that is supplied with the AR navigation sys-
tem is selected. Keep the default setting unless the camera is replaced. If the camera
is replaced, follow the procedure below to set up the camera.

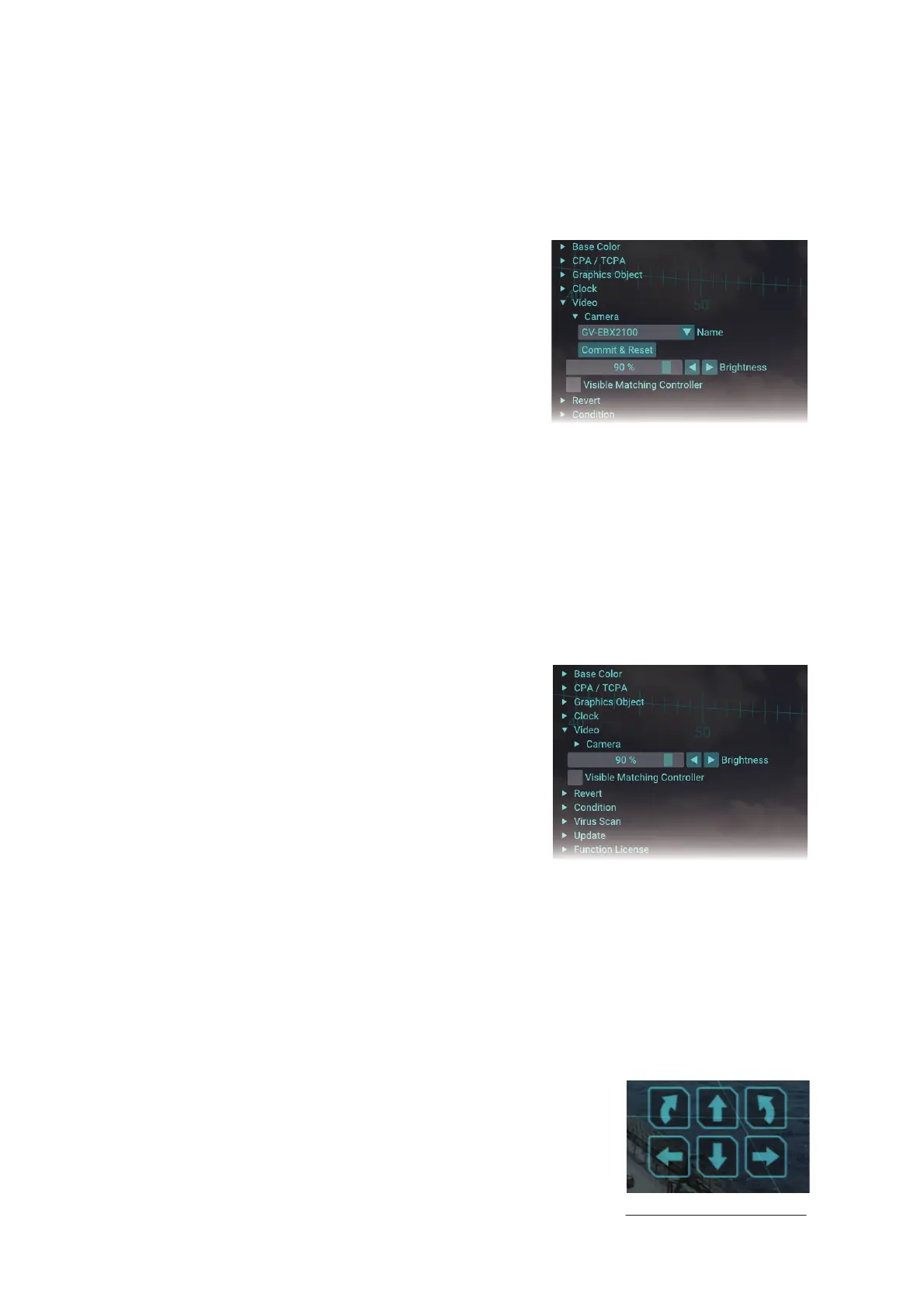

1. Click the menu button to open the main
menu.
2. Click [Video].
3. Click [Camera].
4. Select the model of the IP camera from the
[Name] drop-down list.
5. Click the [Commit & Reset] button to apply
the system.
The AR navigation system application is automatically reset.
1.13 How to Adjust the Video Image Brilliance
You can adjust the brilliance of the video image from the IP camera. If you want to em-
phasize the AR navigation objects on the screen, decrease the brilliance.
Note: This function does not adjust the display brilliance. To adjust the display bril-
liance, see the operator’s manual of the monitor unit.
1. Click the menu button to open the main
menu.
2. Click [Video].
3. Adjust the slider bar or click the buttons for
[Brightness] to adjust the video image bril-
liance.
4. Close the main menu.
1.14 How to Adjust the Video Image Position
When an AR object is not aligned with the target (AIS target, buoy, etc.) on the screen,
adjust the video image position to overlay correctly the object on the target.
Note: Do not move the IP camera after installation. When you want to adjust the video
image position, do as follows.
1. Click the menu button to open the main menu.
2. Click [Video].
3. Check the checkbox for [Visible Matching Controller] to
show the visible matching controller.
4. Show the horizon line and target shape, referring to
subsection 1.8.3 and subsection 1.8.9.
Visible matching controller
