UNIT DISASSEMBLY AND COMPONENT REPLACEMENT
Remove Operation panel
1. Remove Front Panel. (Refer to Chassis Removal)
Remove 1 screw securing User Interface to the control box. (Figure 702)
2. Remove 7 screws attaching display board to user interface. (Figure
703)
3. Disconnect plug. (Figure 703)

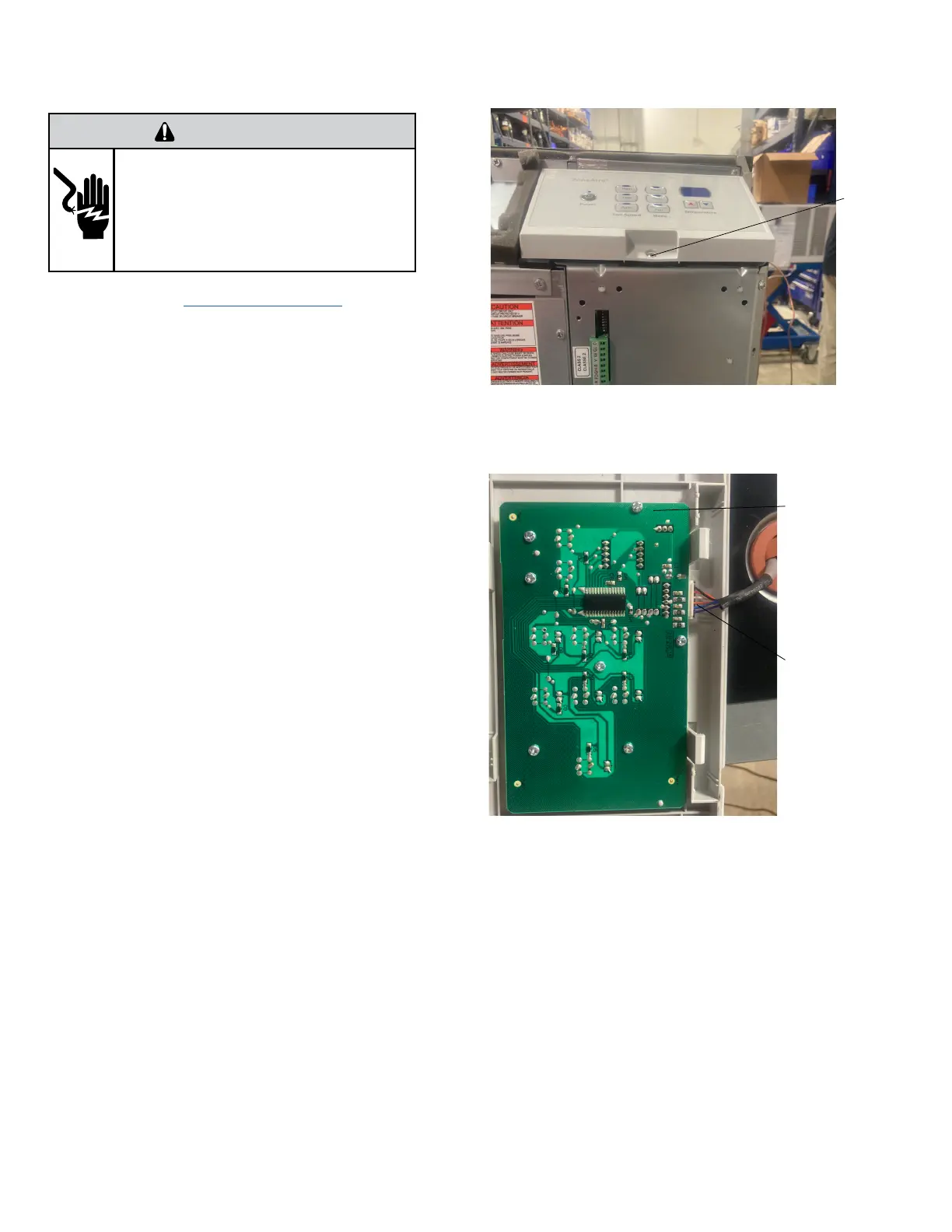

Figure 702 (Operation Panel Removal)
Figure 703 (Operation Panel Removal)
WARNING
ELECTRIC SHOCK HAZARD
Turn off electric power before service or
installation. Extreme care must be used, if it
becomes necessary to work on equipment with
power applied.
Failure to do so could result in serious injury or
death.
Remove Screw
Remove 7 screws
Disconnect Plug
