UNIT DISASSEMBLY AND COMPONENT REPLACEMENT

Open Electrical Control Box

1. Remove front panel. (Figure 701).

2. Remove Operation Panel(Figures 702 thru 703).

3. Remove 7 screws.(Figure 704)

4. Unhinge electrical box. (Figure 705)

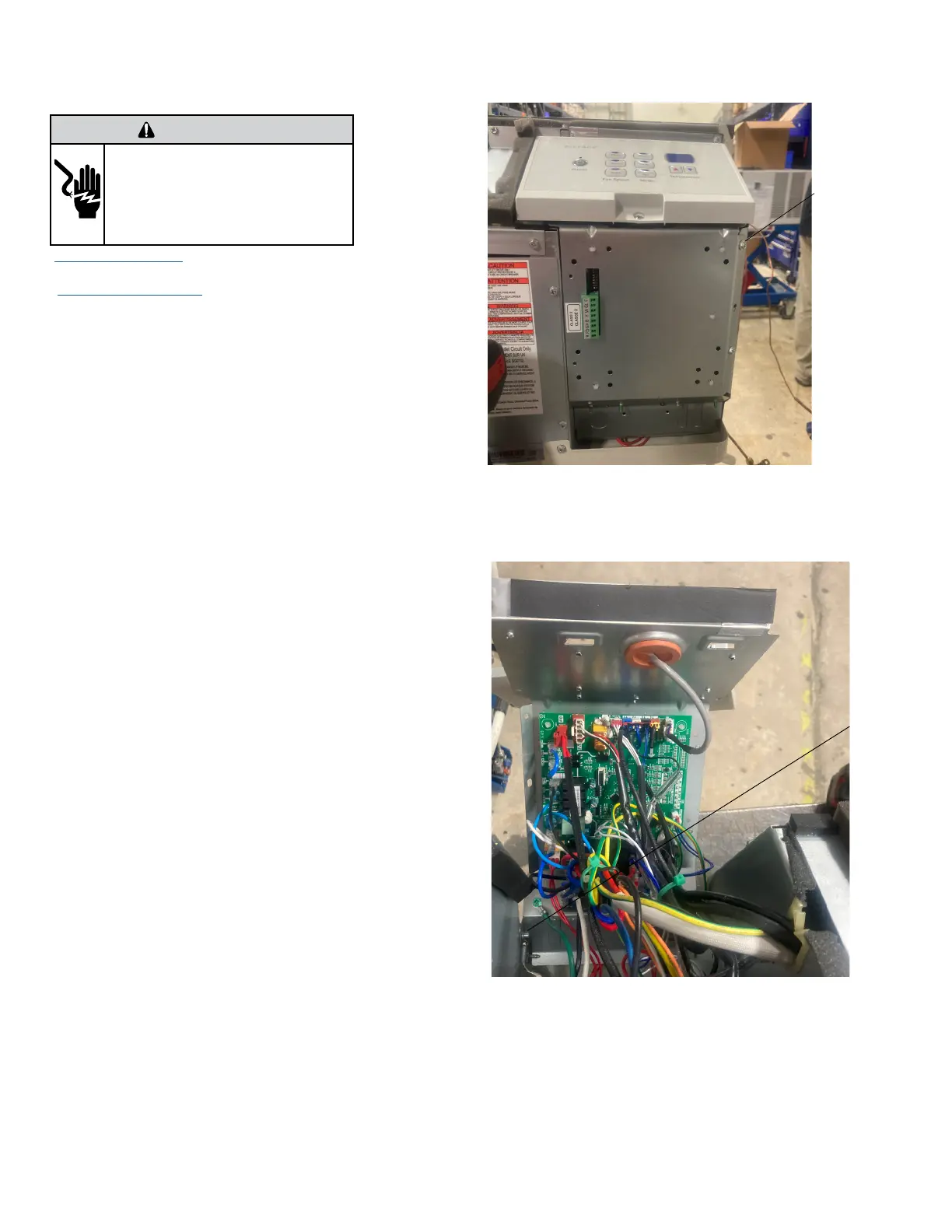

Figure 704 (Open Electrical Box)

WARNING

ELECTRIC SHOCK HAZARD

Turn off electric power before service or

installation. Extreme care must be used, if it

becomes necessary to work on equipment with

power applied.

Failure to do so could result in serious injury or

death.

Remove 7 Screws

Hinge

Figure 705 (Open Electrical Box)
