System Configuration

Fresh Air Vent Control

The vent control lever is located on the left side of the unit,behind the front

panel.

NOTE: The vent door shipping hardware must be removed before using

the vent control lever.See page 23, Figure21,(Remove Shipping

Screw from Vent Door if present).

When vent door is set to CLOSE, only the air inside the room is circulated

and filtered. See Figure 25.

When vent door is set to OPEN, some outdoor air will be drawn into room.

This may reduce heating or cooling efficiency.

Adjusting Air

To adjust air direction:

1. Remove front panel. See Figure 22.

2. Remove louver screws that hold louver insert in place (from back

side of front panel. See Figure 26.

3. Turn louver insert and rotate180°. See Figure27.

4. Replace louver insert.

5. Replace screws and front panel.

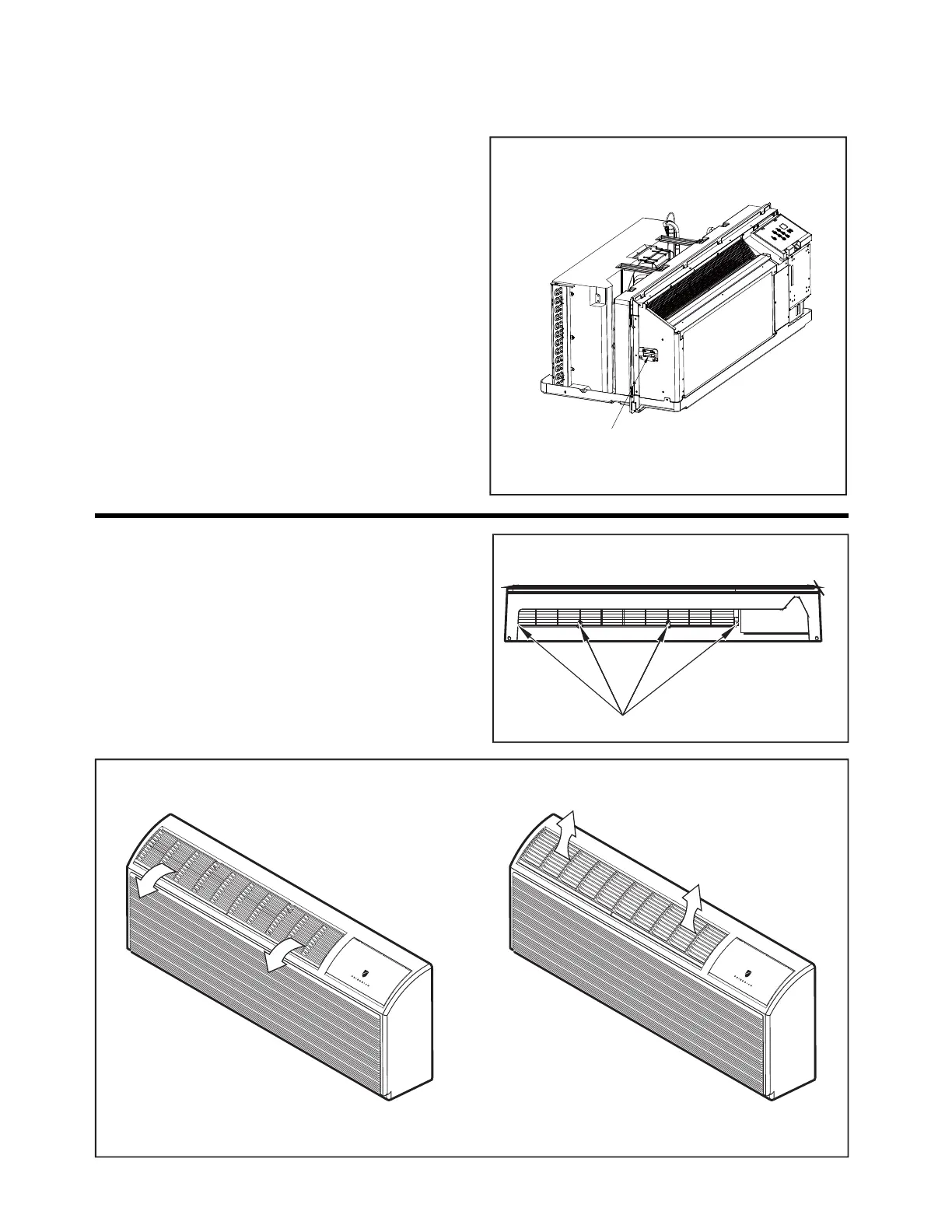

Figure 25

FRP025

Air Vent Control Location

Vent Control(pull level through

label to operate)

Figure 26

FRP026

Backside of Front Panel

LOUVER SCREWS

Figure 27

FRP027

Adjusting Louvers

AIR DISCHARGE OUTWARD (Default) AIR DISCHARGE UPWARD
