1. Switch 1 - Reserved.

2. Switch 2 - Heat pump enable/disable.

Moving Dip Switch #2 to “OFF” can be set as Emergency Heat Over-

ride. In the unlikely event of a compressor failure, a heat pump unit

may be switched to operate in only the electric heat mode until repairs

can be made.

3. Switch 3 -Electric strip enable/disable.

4. Switch 4 -Heating priority

ON-heat pump to be prior; OFF-Electric heat to be prior.

Digital Control User Input Configuration

The adjustable control dip switches are located at the front portion of the digital Smart Center. The inputs are only visible and accessible with the front cover

removed from the PTAC.

Dip Switch Setting

5. Switch 5 - Room Freeze Protection

Units are shipped from the factory with the room freeze protection

enable. Room Freeze Protection can be switched off at the owner’ s

preference by moving Dip Switch 5 to “OFF” . This feature will monitor

the indoor room conditions and in the event that the room falls below

℉

, the unit will automatically run “heating” . This occurs regardless

of mode.

6. Switch 6 - Electric memory enable/disable

The factory setting is enabled. The smart center will remember user’ s

setting. After power cut recovery, the unit will operate the same status

as before power cut. Moving Dip Switch 6 to “OFF” will disable this

feature, smart center will no more remember settings.

7. Switch 7 - Medium fan speed for indoor fan ON-when press the HIGH

fan speed, output the medium speed instead; OFF-output the same

speed as selected.

8. Switch 8 - Indoor fan motor rotation speed select ON-7K/9K fan motor

rotation speed; OFF-12K/15K fan motor rotation speed;

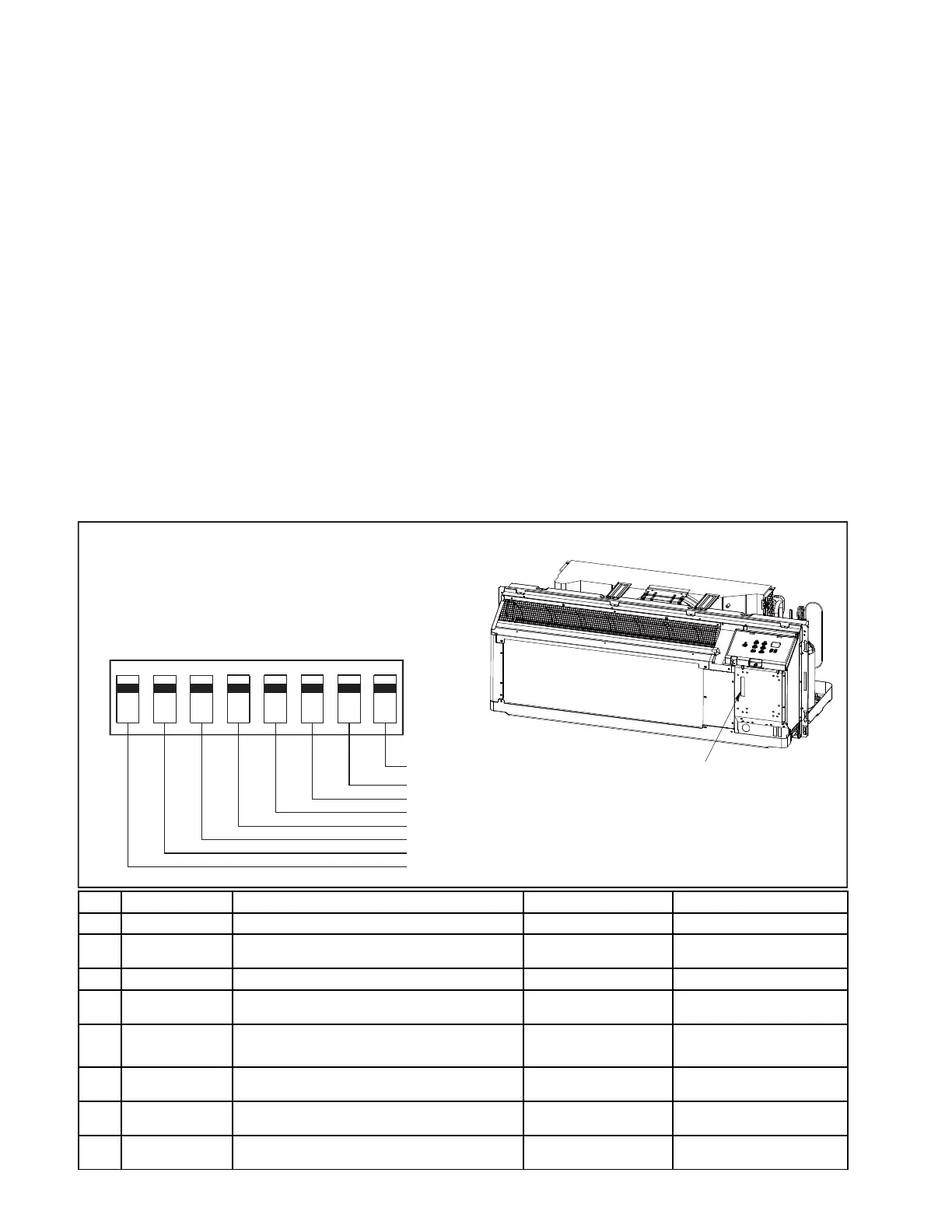

Figure 28

FRP028

LOCATION OF

DIP SWITCHES

ON UNIT

Dip Switches

DIP SWITCH

12345678

OFF

Indoor fan motor rotation speed select

Medium fan speed for indoor fan

Electric memory enable/disable

Room freeze protection

Heating priority

Electric strip enable/disable

Heat pump enable/disable

Reserved

Switch Description Factory Setting OptionFunction

#1 Reserved OFF //

#3 Electric strip ON Forbidden moving to OFFON-enable electric heat; OFF-disable electric heat.

#2 Heat pump

HP models-ON

Electric heat only-OFF

OFF-Overrides compressor

operation(HP modes only)

ON-enable heat pump;

OFF-disable heat pump, run electric heat only.

#4 Heating priority OFF OFF

ON-Heat pump prior.

OFF-Electric heating prior.

Room Freeze

Protection

ON OFF

ON-Allows the unit to ensure the indoor room temperature

does not fall below 40℉ even when turned off.

OFF-disable freeze protection.

Electric memory

enable/disable

ON OFF

ON-enable;

OFF-disable.

Medium fan speed

for indoor fan

OFF Forbidden changing factory setting

ON-when press the HIGH fan speed, output the medium

speed instead; OFF-output the same speed as selected.

Indoor fan motot

rotation speed select

7K/9K :ON

12K/15K :OFF

Forbidden changing factory setting

ON-7K/9K fan motot rotation speed;

OFF-12K/15K fan motot rotation speed.

OPERATION

Digital Control User Input Conﬁguration
