C. INSTALLATION OF THE UNIT
C.3 Installation Clearances (Continued)
For proper PTAC unit performance and maximum operating life refer to the minimum installation clearances below:

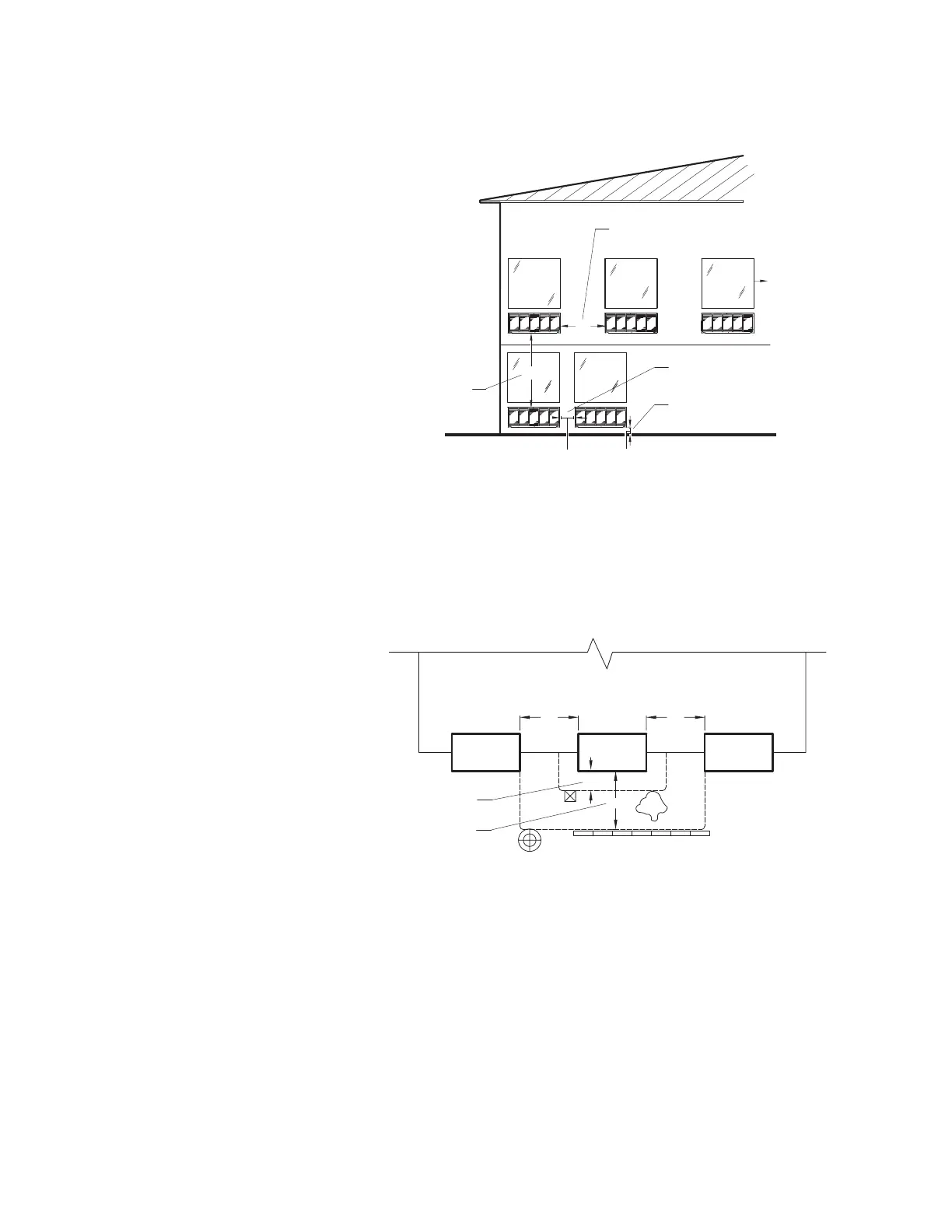

Figure C.3.2 (Installation Clearances)
For PTACs on the ground floor or anytime obstructions are present, use the following guidelines:
The above suggestions are for reference only and do not represent all possible installations. Please contact Friedrich for information regard-
ing affects of other installation arrangements. By following these simple recommendations you can be confident that your Friedrich PTAC will
provide years of worry free operation.
THREE OR MORE PTACs
ADJACENT 36" MINIMUM
GROUND FLOOR PTACs
6" MINIMUM FROM GRADE
TWO ADJACENT PTACs
12" MINIMUM
TYPICAL
WINDOW
VIEW: OUTSIDE BUILDING ELEVATION
60" VERTICAL
MINIMUM
BETWEEN
PTACs
12"
6"
36"
60"
PTAC units should be installed
no closer than 12” apart when
two units are side by side.
If three or more PTAC units are
to operate next to one another
allow a minimum of 36” between
units. Also, a vertical clearance
of 60” should be maintained
between units installed. In the
interior of the room the unit
should be located a minimum of 1/4”
PTAC
SHRUB
POLE
FENCE OR WALL
CATPCATP
TYPICAL BUILDING ( PLAN VIEW )
CONDENSING UNIT
12"
36"
36"
36"
36" MINIMUM, MAJOR
OBSTRUCTIONS
12" MINIMUM, MINOR
OBSTRUCTIONS
Fo
r minor obstructions such as lamp
poles or small shrubber
y a clearance
of 12" from the outdoor louver should
be maintained
.
Fo
r major obstructions such as a solid
f
ence, wall or other heat rejecting
device like a condensing unit, a minimum
distance of 36" should be kept
.
Figure C.3.3 (Installation Clearances)
